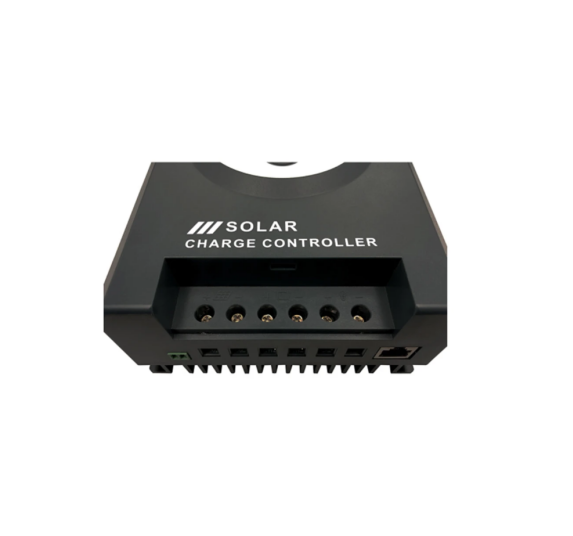

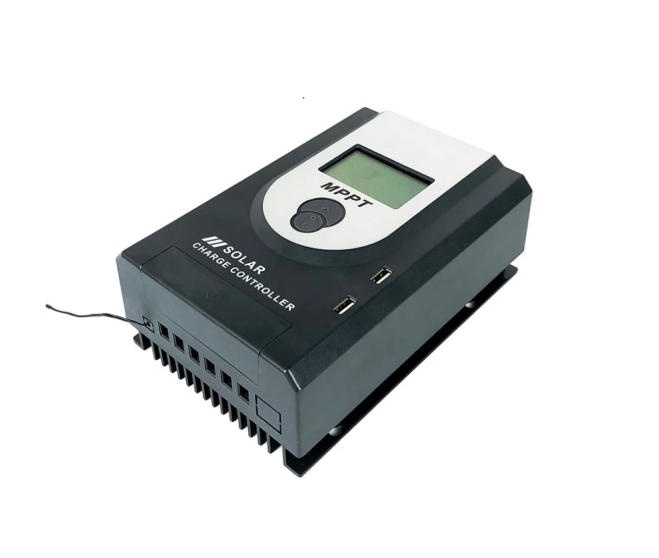

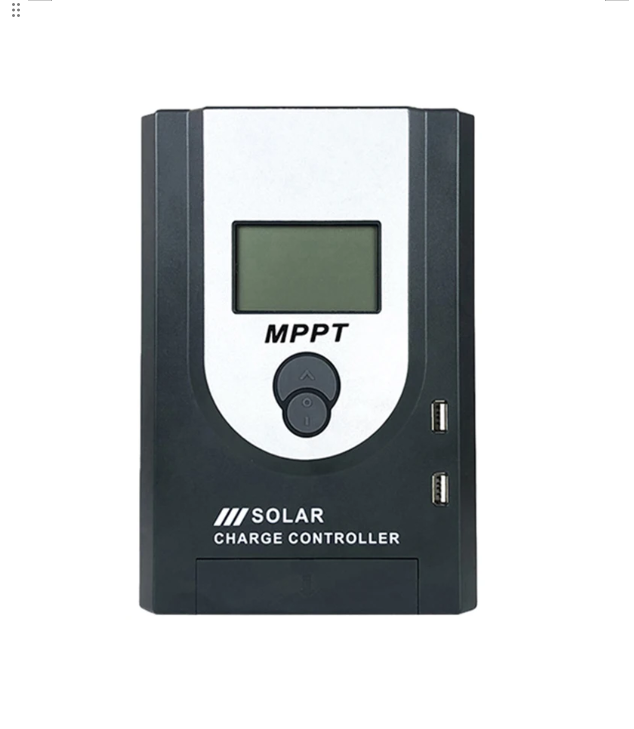

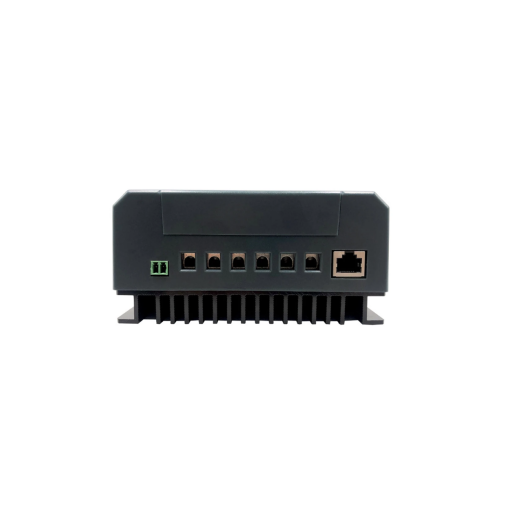

40A MPPT Solar Charge Controller 12V 24V Auto with LCD Display
MODEL: MPJ4024
Rated charge current: 40A
System rated voltage: 12V 24V Auto Work
Voltage range of battery: 8-32V
Max open voltage of PV module: 100V
Max input power: 520W(12V) / 1040W(24V)
Battery type: User default, Sealed, Flooded, GEL, LiFePO4
Equalized charging voltage: Maintenance-fee lead acid battery 14.6V, GEL: No: Lead acid flooded battery: 14.8V
Absorption charging voltage: Maintenance-fee lead acid battery 14.4V,GEL: 14.2; Lead acid flooded battery: 14.6V
Floating charging voltage: Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 13.8V
Low voltage re-connection (LVR): Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 12.6V
Low voltage disconnection (LVD): Maintenance-fee lead acid battery,GEL, Lead acid flooded battery: 10.8V
Static loss: <9.2mA 12V; <11.7mA 24V
High voltage disconnection (HVD): 16V (24V x 2)
Duration of absorption charging: 2 Hours
Light control voltage: 5V
Charge loop voltage drop: <0.29V
LCD Temperature: ﹣20°C~+70°C
Operating Temperature: ﹣20°C-+55°C (To run at full rated current continuously)
Working humidity: <95% No condensation
Protection class: IP30
Dimension (LxWxH) mm: 150x220x67
