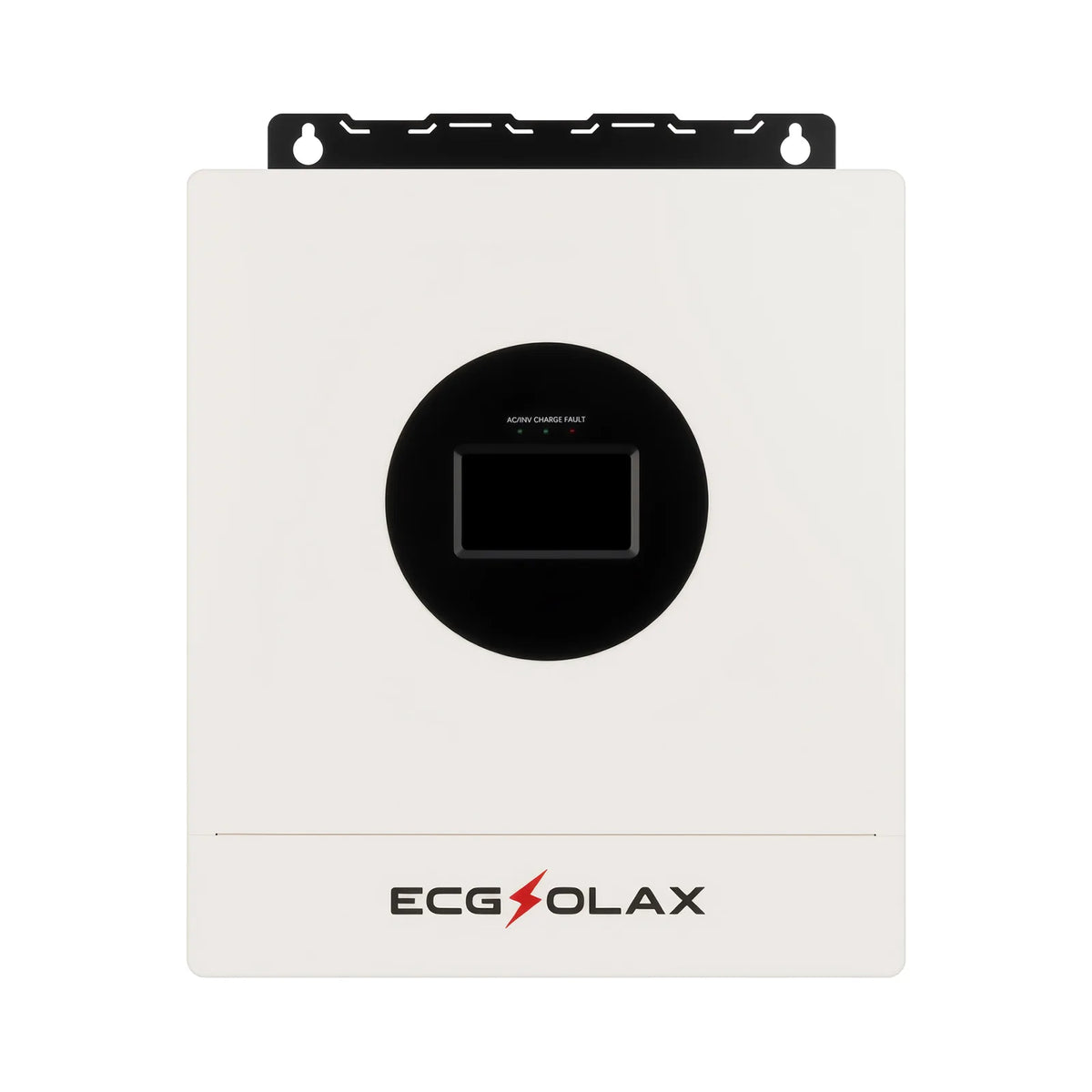

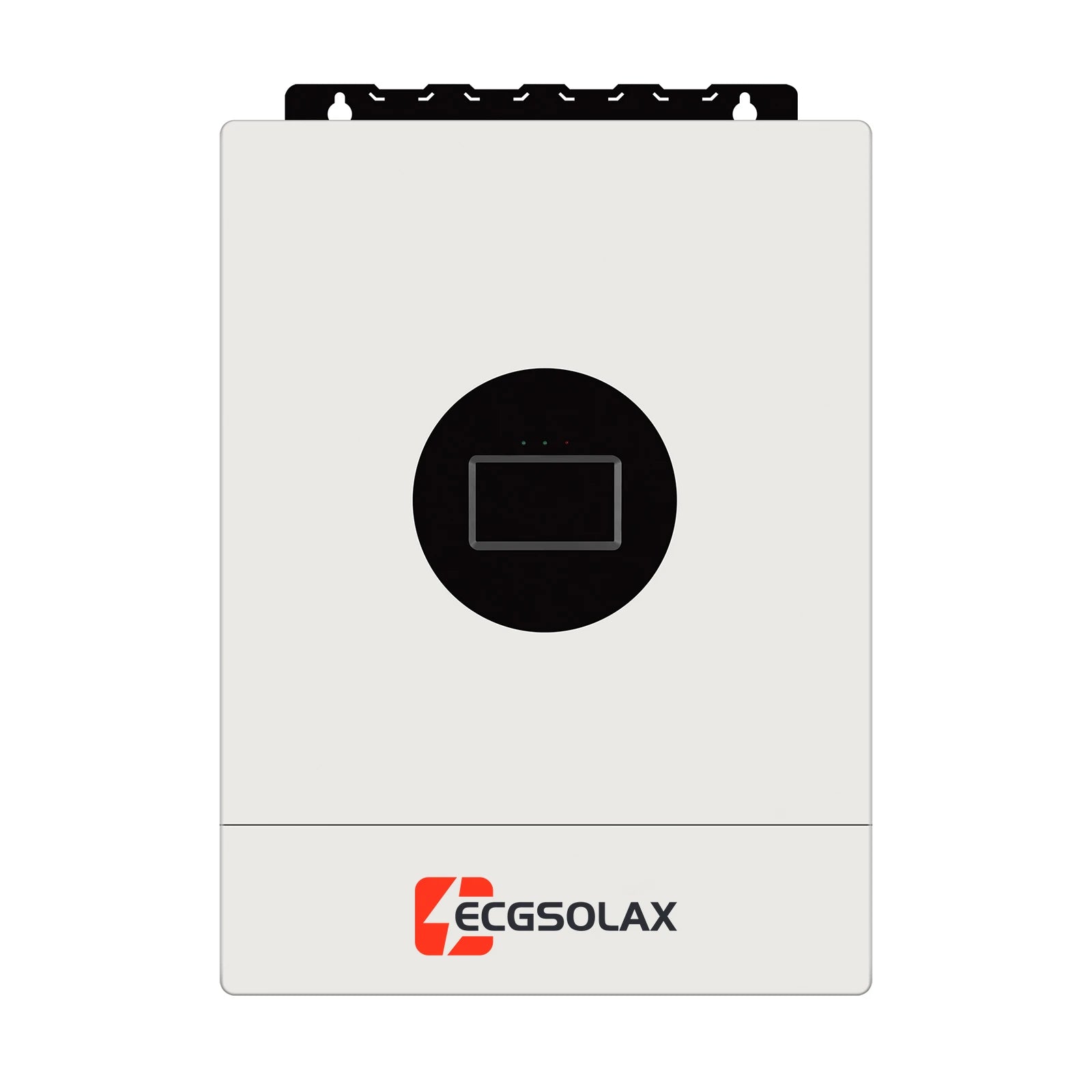

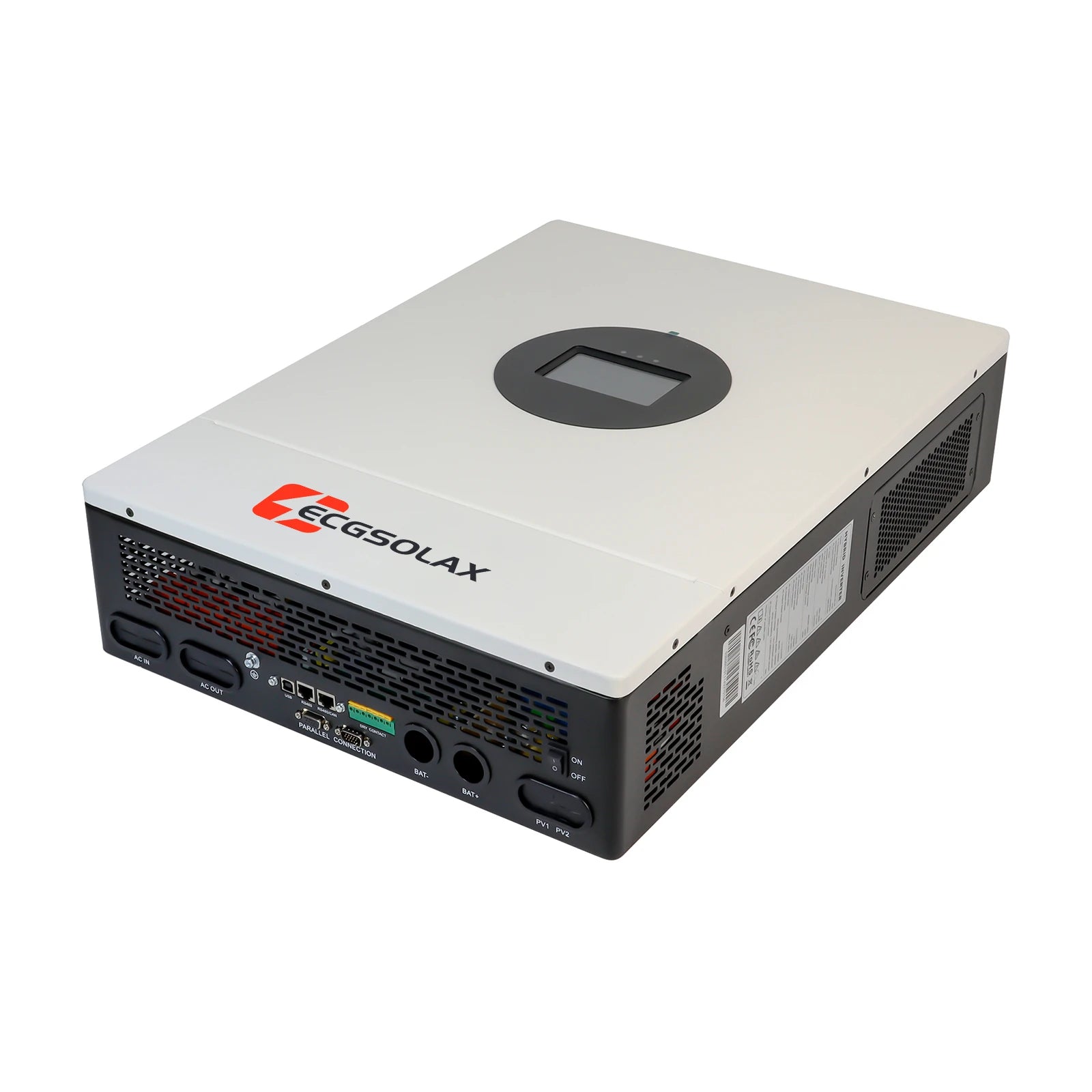

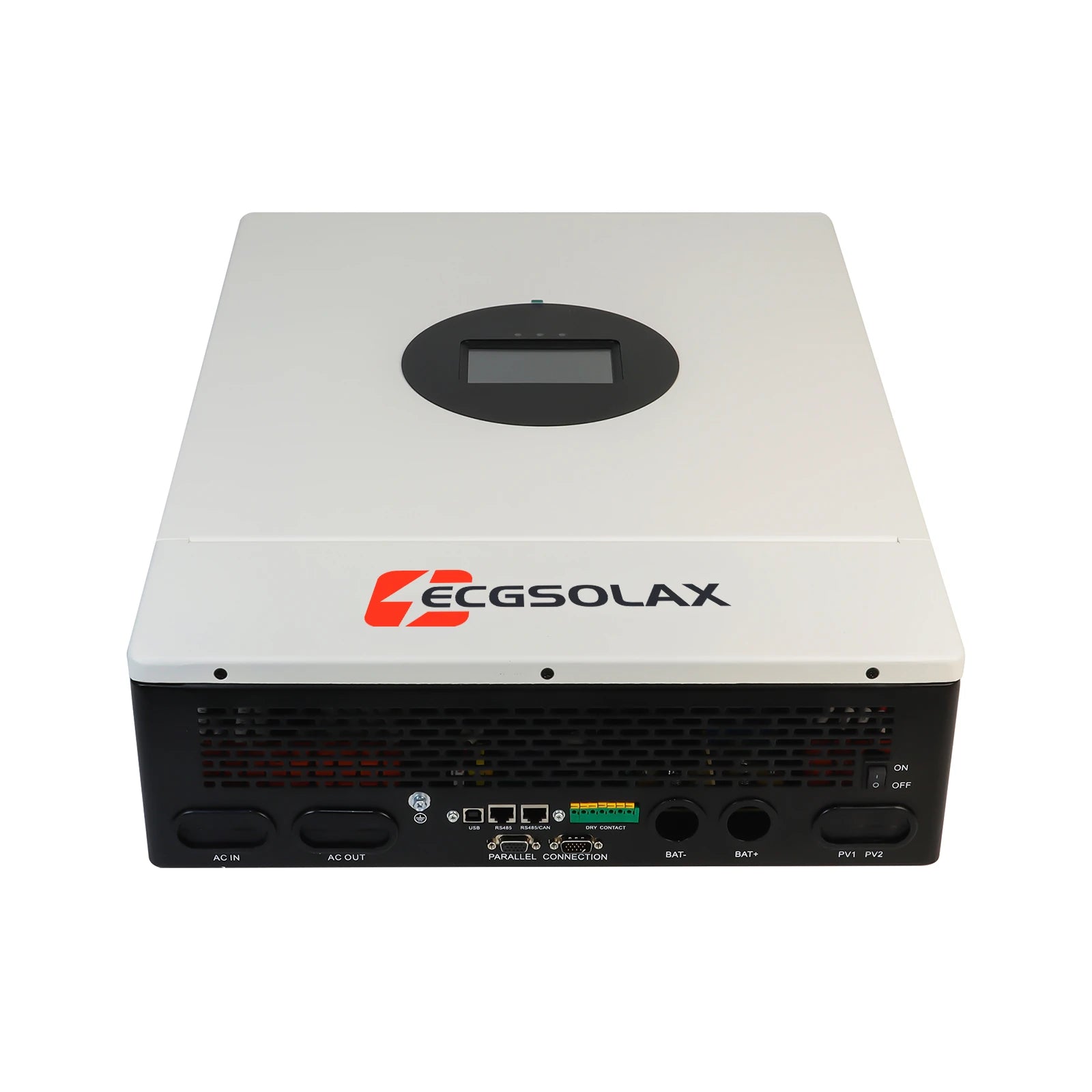

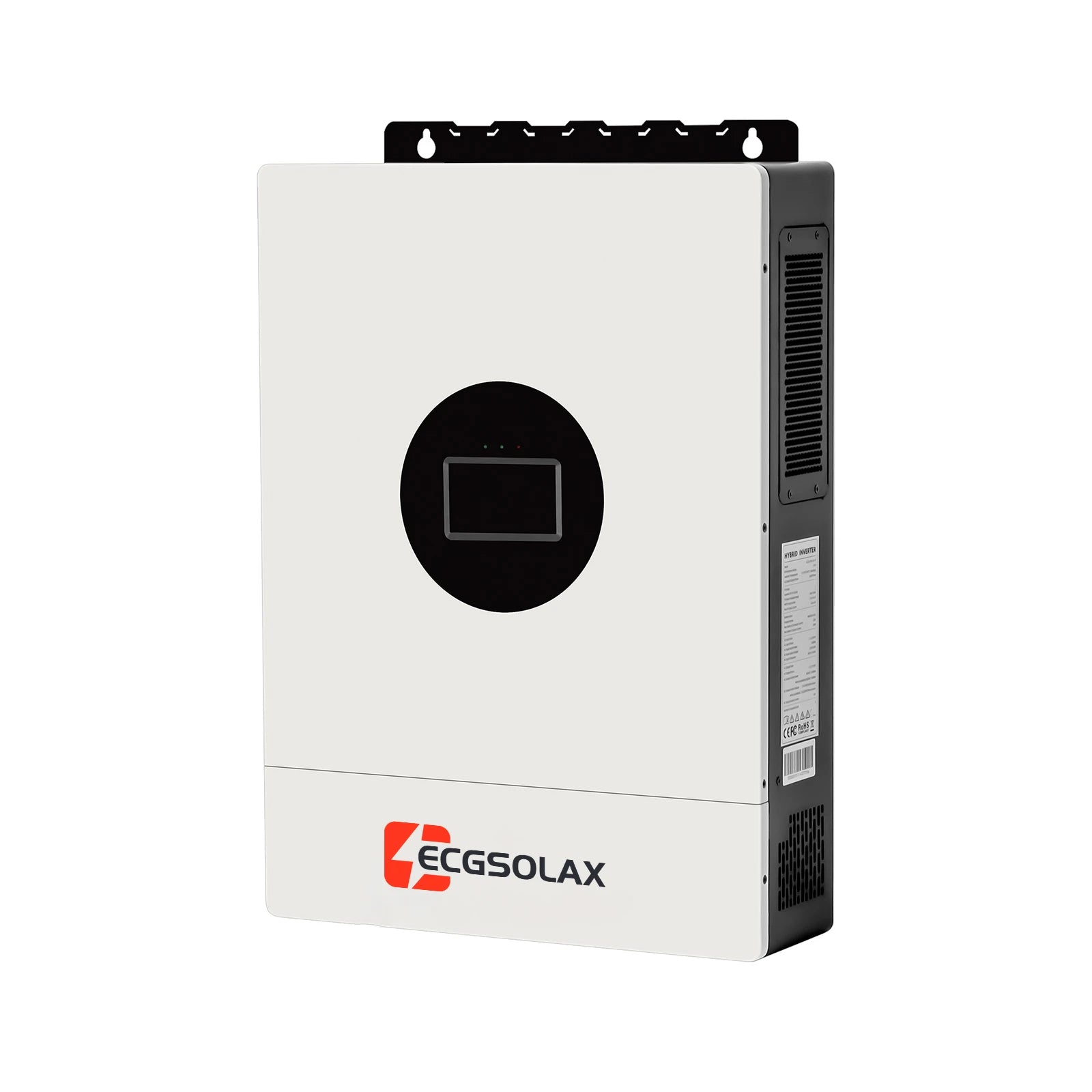

12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System

12kW 48V Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System

$1,266.47
$1,266.47
$1,809.24
Sold Out
Shipping calculated at checkout.
ECG-LVM12K-SP

✓ 12kW Split-Phase Hybrid Solar Inverter (120V / 240V Output)
✓ 48V Battery System Compatible, supports both lithium and lead-acid batteries
✓ Built-in MPPT Solar Charge Controller for higher solar conversion efficiency and faster battery charging
✓ Supports Multiple Energy Sources including solar panels, utility grid, generator, and battery storage
✓ WiFi Remote Monitoring (Optional) to monitor system performance and energy usage anytime via mobile app

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

Key Specifications

Rated Input Voltage: 120 / 240 VAC
Voltage Range: 90–280V (APP) / 170–264V (UPS)
Frequency: 50 / 60 Hz

Rated Power: 12kW
Surge Power: 24kVA

Output Voltage: 120 / 240 VAC (Split Phase)
Waveform: Pure Sine Wave
Efficiency: Up to 93%

Solar Charger: MPPT
Max PV Power: 12000W
MPPT Range: 120–450V
PV Start Voltage: 150V
Max PV Voltage: 500V
Max PV Charge Current: 200A

Battery Voltage: 48V
Battery Type: Lithium / Lead-acid

Monitoring: LCD
Communication: RS232 / WiFi (Optional)

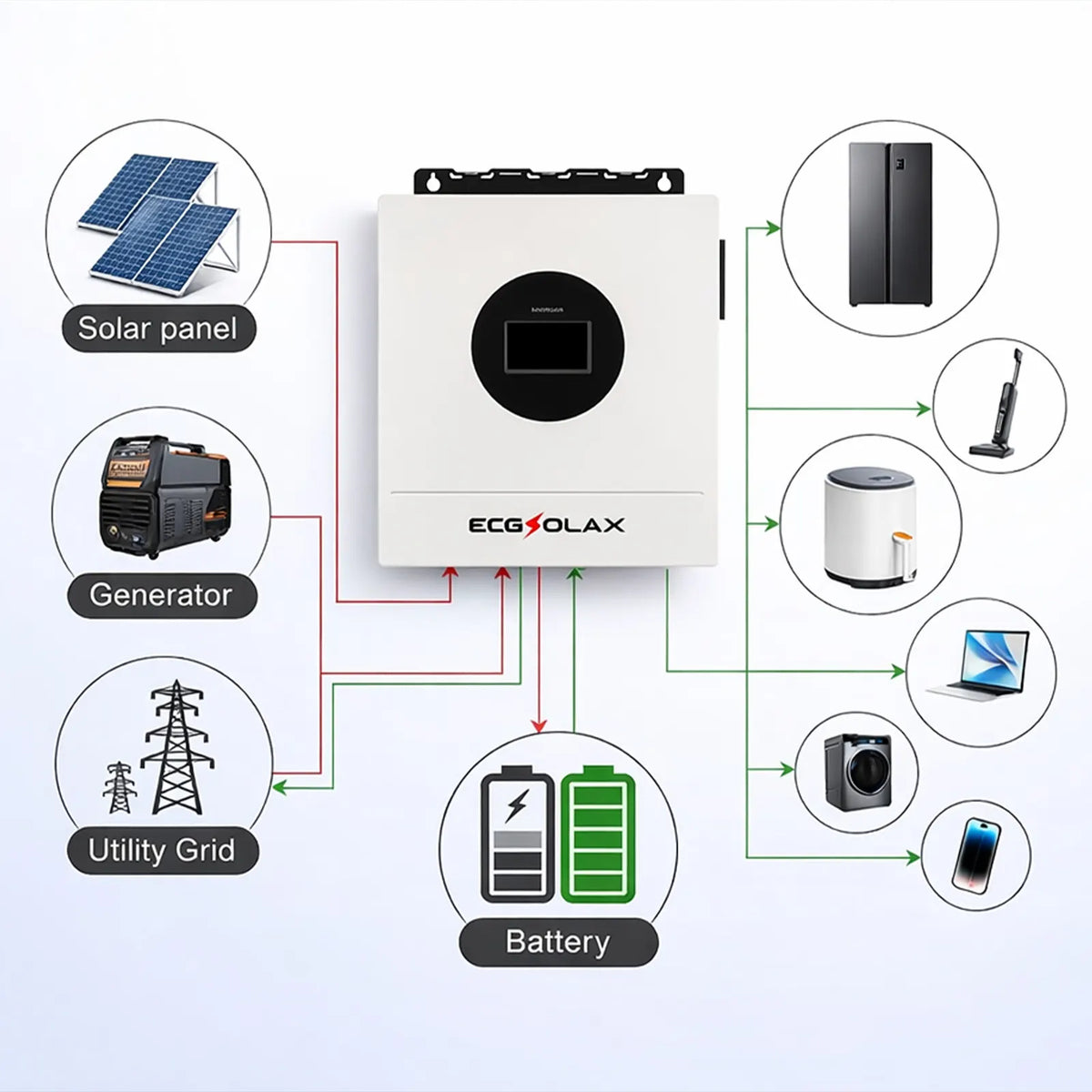

Flexible Power Source Connection

The hybrid solar inverter supports multiple power sources including solar panels, utility grid, generators, and battery storage. It intelligently manages energy flow to ensure stable and continuous power supply for household appliances.

With flexible system integration, the inverter can power various home devices such as refrigerators, washing machines, laptops, lighting, and other household electronics, making it ideal for residential solar energy systems and backup power solutions.

Parallel Expansion Up to 6 Units


The inverter supports parallel operation of up to 6 units, allowing flexible system expansion to meet higher power demands. By connecting multiple inverters together, users can significantly increase total output capacity and build a scalable solar energy system for residential or small commercial applications.

Flexible and Scalable Power Solution
Parallel capability enables the system to grow with your energy needs, providing reliable power for larger homes, workshops, and energy storage systems.

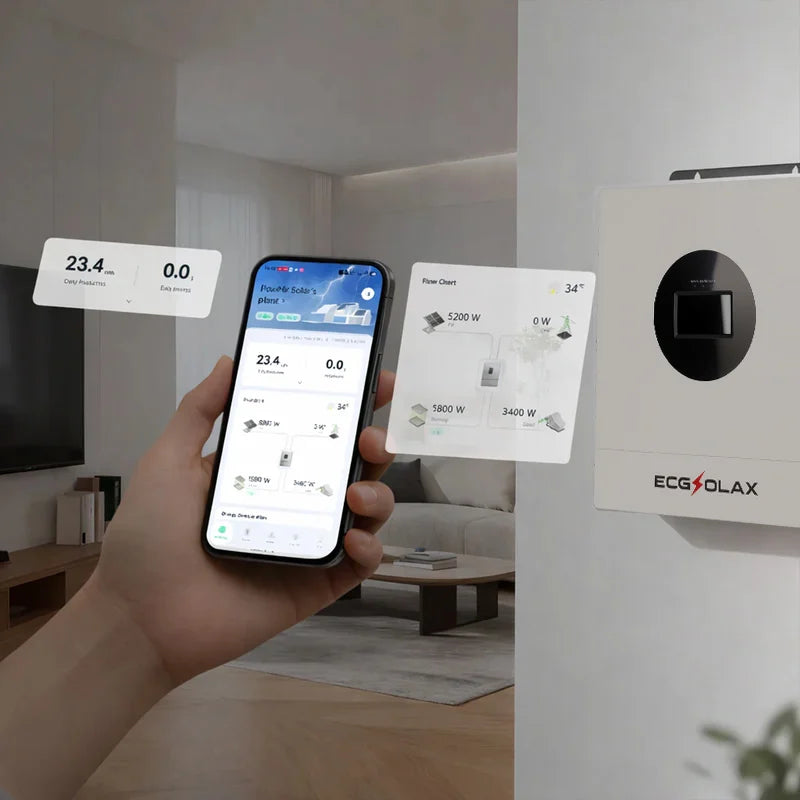

Built-in WiFi / BTSmart Monitoring

Supports WiFi and Bluetooth connections for convenient remote control and monitoring.
✔ Real-Time Energy Monitoring
✔ Smart Solar Power Management
✔ Remote System Control Anywhere

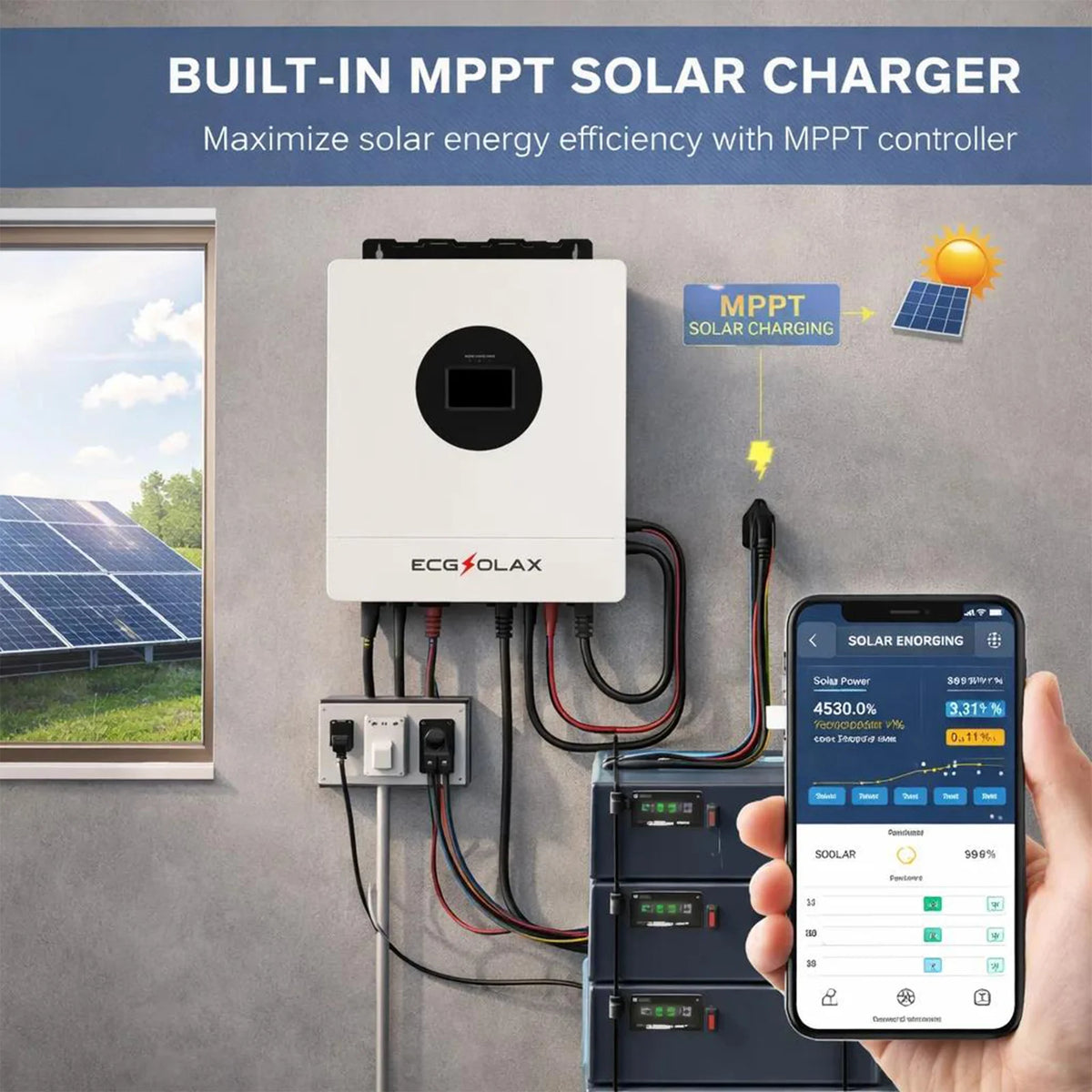

High Efficiency MPPT Solar Charging

The inverter features a built-in MPPT solar charge controller that maximizes solar energy harvesting and improves charging efficiency. It intelligently tracks the optimal power point of solar panels to ensure stable and efficient battery charging for residential solar energy systems.

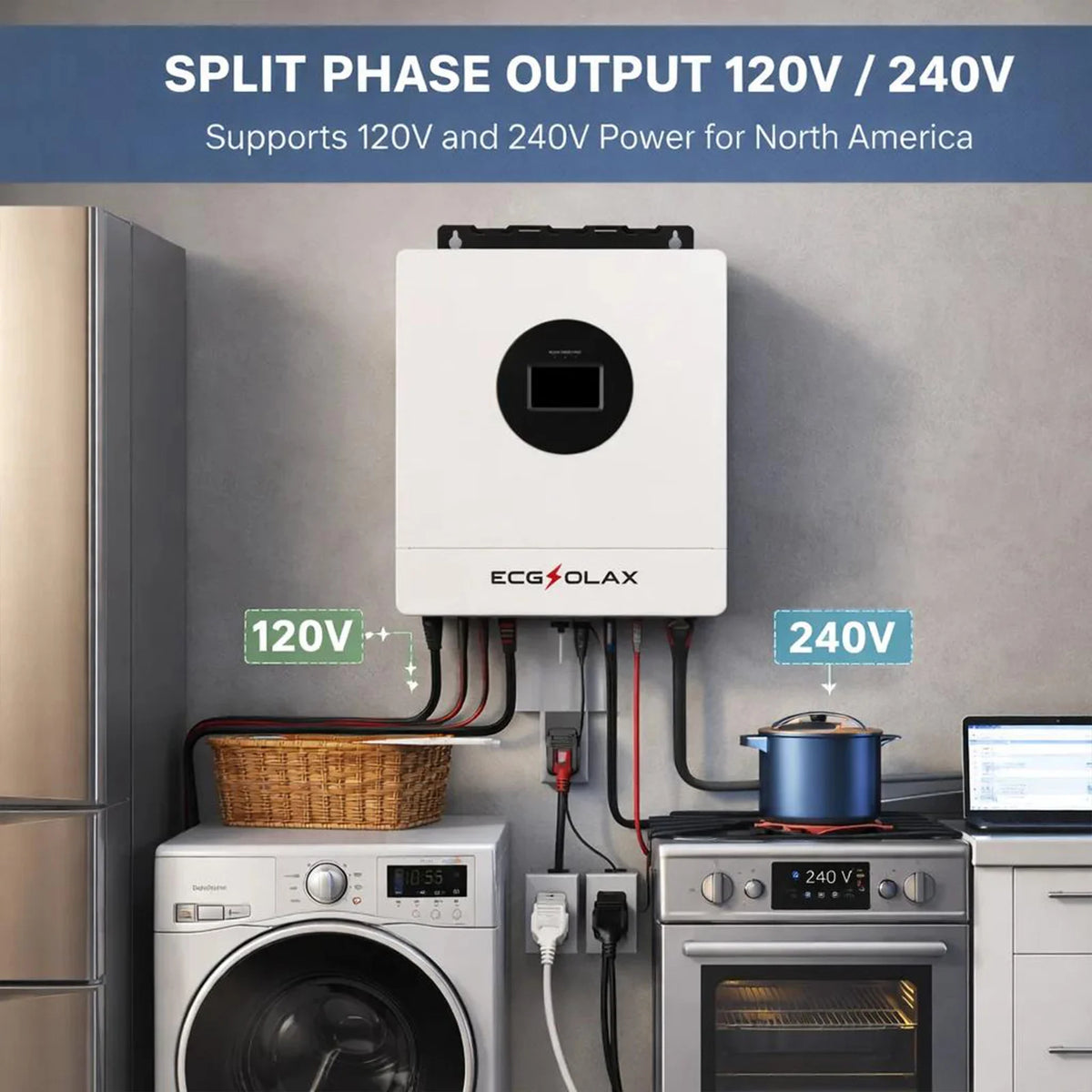

Split Phase 120V / 240V Output

Designed for North American residential power systems, the inverter provides split phase 120V and 240V output, allowing it to power both standard household appliances and high-power equipment. It is ideal for home solar energy systems, off-grid power solutions, and backup power applications.
