3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System
3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System

3.6kW 24Vdc 220Vac Hybrid Solar Inverter with MPPT All-in-One Off-Grid Solar Power System

$223.01
$223.01
$318.59
Sold Out
Shipping calculated at checkout.
ECG-HVM3.6K-24V

✓ 3.6kW Pure Sine Wave Hybrid Solar Inverter for stable and clean AC power
✓ Built-in MPPT Solar Charge Controller for maximum solar energy conversion
✓ Supports Solar Panel, Battery, Utility Grid and Generator Input
✓ All-in-One Off-Grid Solar Inverter for Home Solar Power Systems
✓ Smart Energy Management with Multiple Output Priority Modes
✓ High Efficiency Solar Power Conversion up to 93%

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

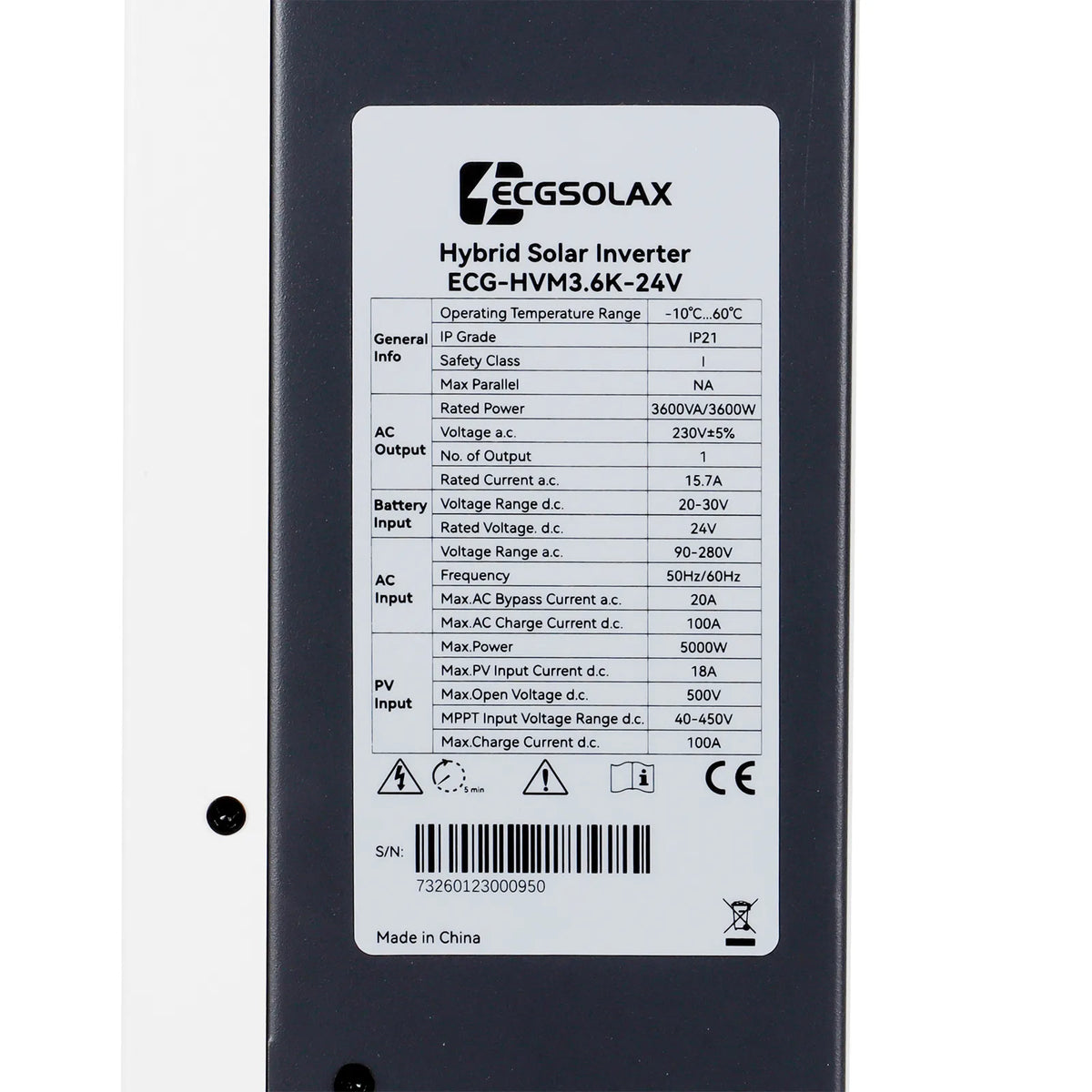

Key Specifications

Rated Input Voltage: 208 / 220 / 230 / 240 VAC
Voltage Range: 90–280V (APP) / 170–264V (UPS)
Frequency: 50 / 60 Hz
Rated Power: 3.6kW
Surge Power: 7.2kVA
Output Voltage: 208 / 220 / 230 / 240 VAC
Waveform: Pure Sine Wave
Efficiency: Up to 93%
Solar Charger: MPPT
Max PV Power: 4000W
MPPT Range: 60–450V
PV Start Voltage: 90V
Max PV Voltage: 500V
Max PV Charge Current: 100A
Battery Voltage: 24V
Battery Type: Lithium / Lead-acid
Monitoring: LCD
Communication: RS232 / WiFi (Optional)

Flexible Solar Inverter System Configuration

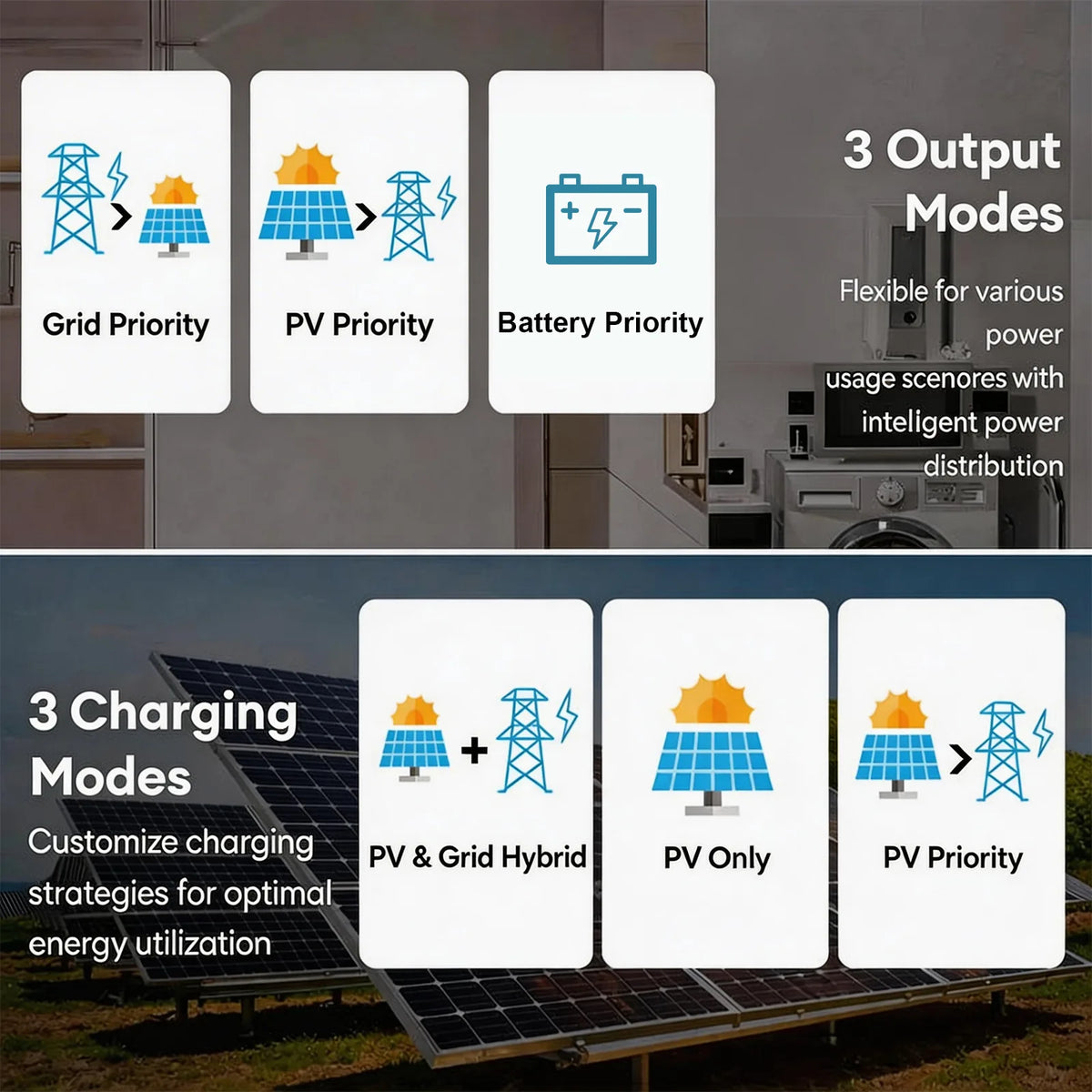

Output Modes
✔ Grid Priority
✔ Solar Priority
✔ Battery Priority
Optimizes power distribution between solar, battery, and grid for different application scenarios.

Charging Modes
✔ PV Only
✔ Grid Priority Charging
✔ PV + Grid Hybrid Charging
Ensures efficient and flexible energy management for both off-grid and hybrid systems.

Supports Battery & Non-Battery Solar Power Systems

✔ Non-Battery Mode
The solar inverter converts solar energy into AC power for home appliances or grid supply.
No battery required — lower cost and easier solar installation.

✔ Battery Mode
Store excess solar power in batteries during the day and use it at night or during outages.
Provides reliable home energy storage and backup power.

Connect with WiFi module (WiFi stick) to enable WiFi functionality

Remote Solar Inverter Monitoring via Mobile App
✔ Real-Time Energy Monitoring
✔ Smart Solar Power Management
✔ Remote System Control Anywhere

BMS communication

Three-step BMS communication setup for solar inverter and lithium battery systems. Connect the inverter and battery using a Cat5e communication cable, set the battery DIP switch, and configure the BMS protocol on the inverter display for stable battery communication and energy management.

Comprehensive Protection & Efficient Cooling

Reliable Solar Inverter Protection System

Intelligent Cooling Fans
Dual smart cooling fans with separated airflow zones provide efficient heat dissipation.
Prevents overheating and ensures stable, high-efficiency solar inverter performance.

Advanced Dustproof Design
Multi-layer dustproof protection blocks dust and debris from entering the system.
Improves inverter reliability, durability, and long service life, even in harsh environments.
