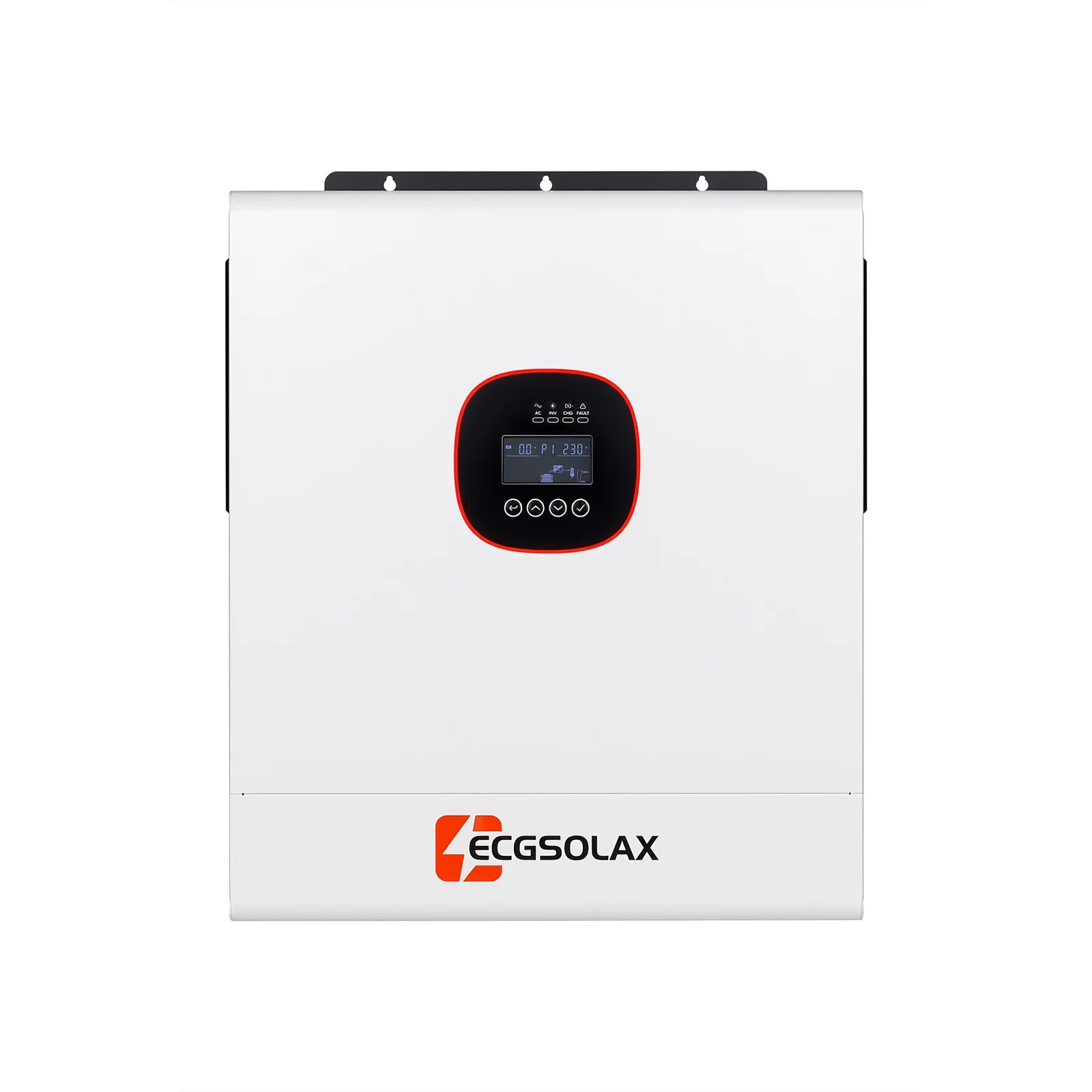

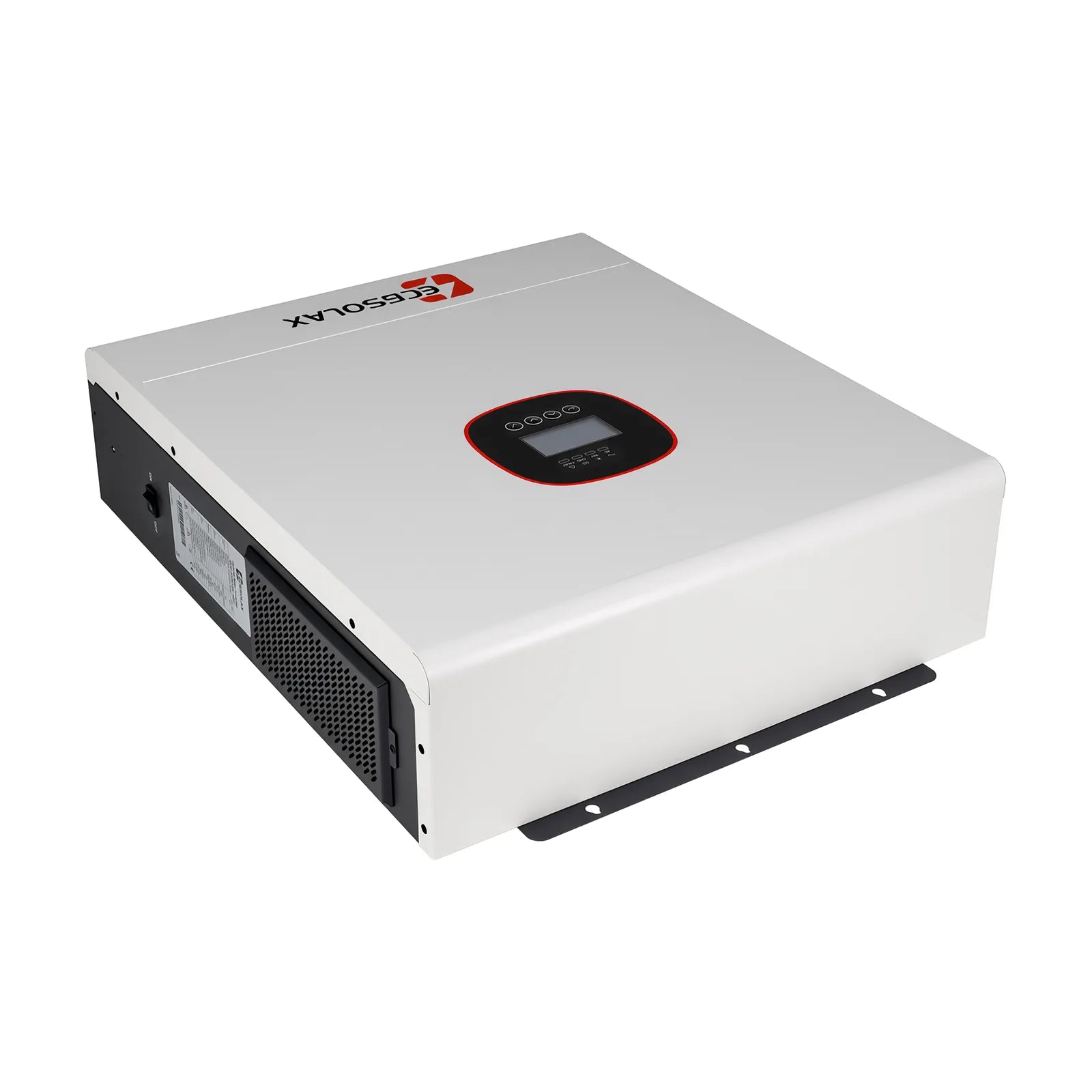

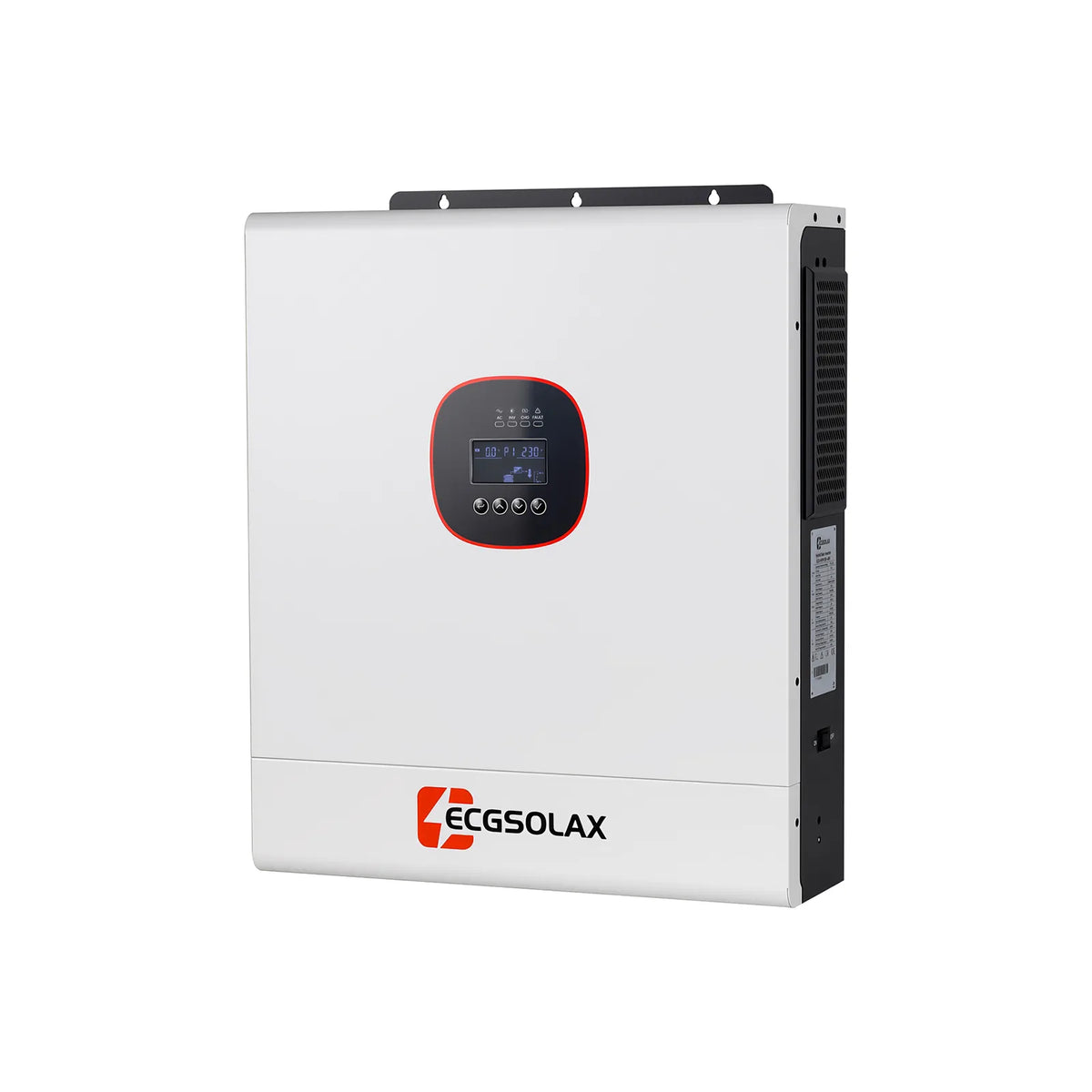

12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System

12kW 48Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System

$544.63
$544.63
$778.04
Sold Out
ECG-HVM12K-48V

āœ” 12kW Pure Sine Wave Solar Inverter for stable, clean, and reliable power output for home appliances
āœ” Built-in MPPT Solar Charge Controller for higher solar conversion efficiency and faster battery charging
āœ” Compatible with 48V Battery Systems, including lithium, AGM, GEL, and lead-acid batteries
āœ” Supports Solar, Battery, and Grid Input for flexible hybrid solar power management
āœ” Multiple Charging & Output Modes (Solar First, Utility First, SBU Mode) for optimized energy use
āœ” Advanced Protection & Intelligent Cooling for safe, stable, and long-term operation
āœ” 12000W AC Output capable of powering most household appliances
āœ” Ideal for Home Energy Storage, Off-Grid Solar Systems, and Backup Power

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

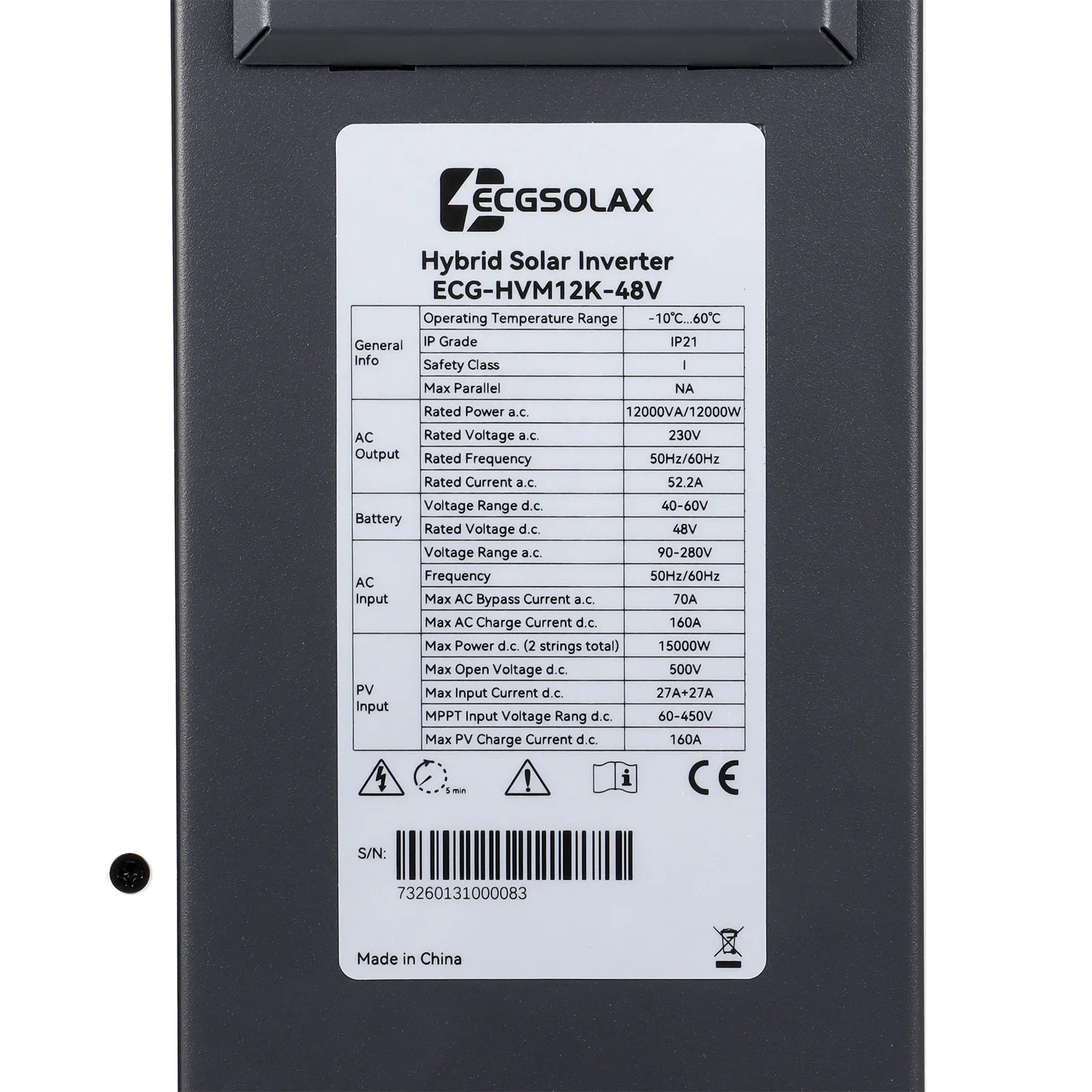

Key Specifications

Rated Input Voltage: 208 / 220 / 230 / 240 VAC
Voltage Range: 90ā€“280V (APP) / 170ā€“264V (UPS)
Frequency: 50 / 60 Hz
Rated Power: 12kW
Surge Power: 24kVA
Output Voltage: 208 / 220 / 230 / 240 VAC
Waveform: Pure Sine Wave
Efficiency: Up to 93%
Solar Charger: MPPT
Max PV Power: 12000W
MPPT Range: 90ā€“450V
PV Start Voltage: 120V
Max PV Voltage: 500V
Max PV Charge Current: 200A
Battery Voltage: 48V
Battery Type: Lithium / Lead-acid
Monitoring: LCD
Communication: RS232 / WiFi

Flexible Solar Inverter System Configuration

Output Modes
āœ” Grid Priority
āœ” Solar Priority
āœ” Battery Priority
Optimizes power distribution between solar, battery, and grid for different application scenarios.

Charging Modes
āœ” PV Only
āœ” Grid Priority Charging
āœ” PV + Grid Hybrid Charging
Ensures efficient and flexible energy management for both off-grid and hybrid systems.

Compatible with Multiple Battery Types

Supports 48V battery systems and works with various battery types including Lithium, SLD, FLD, AGM, GEL, and SUER batteries, providing flexible energy storage options for different solar systems.

Batteryless Mode Supported ā€“ The inverter can operate even without a connected battery.

Lithium Battery Activation ā€“ Automatically activates dormant lithium batteries.

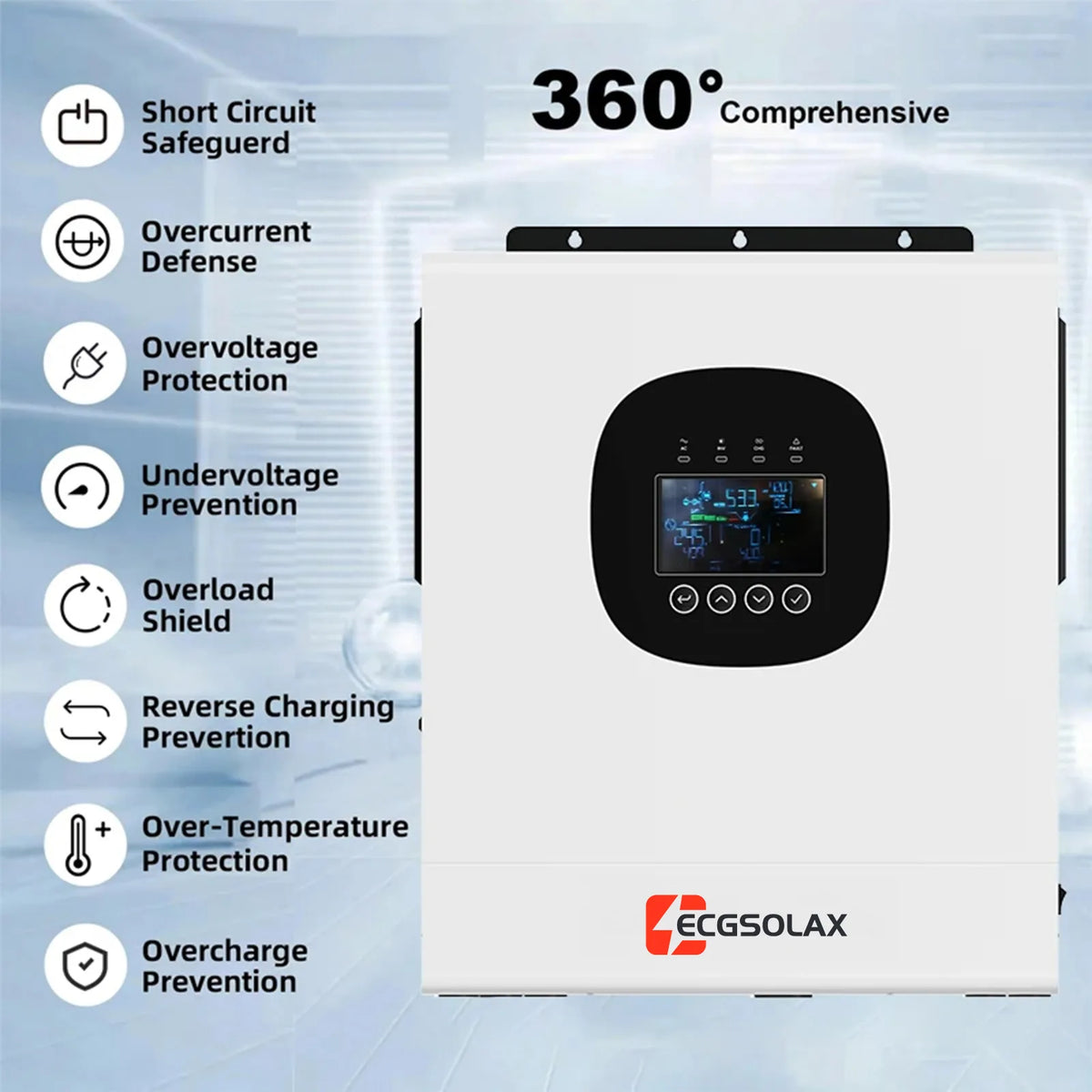

360Ā° Comprehensive Protection

Built with multiple safety protections, including short circuit, overcurrent, overvoltage, undervoltage, overload, reverse charging, over-temperature, and overcharge protection for safer and more reliable performance.

Pure Sine Wave Output

ECG-HVM12K-48V inverter delivers stable pure sine wave output with up to 12000W AC power, ensuring smooth and reliable operation for most household appliances. It can easily power devices such as rice cookers, coffee machines, induction cookers, and other daily electrical equipment, providing a dependable energy solution for home and off-grid solar systems.

Compatible with Multiple Battery Types

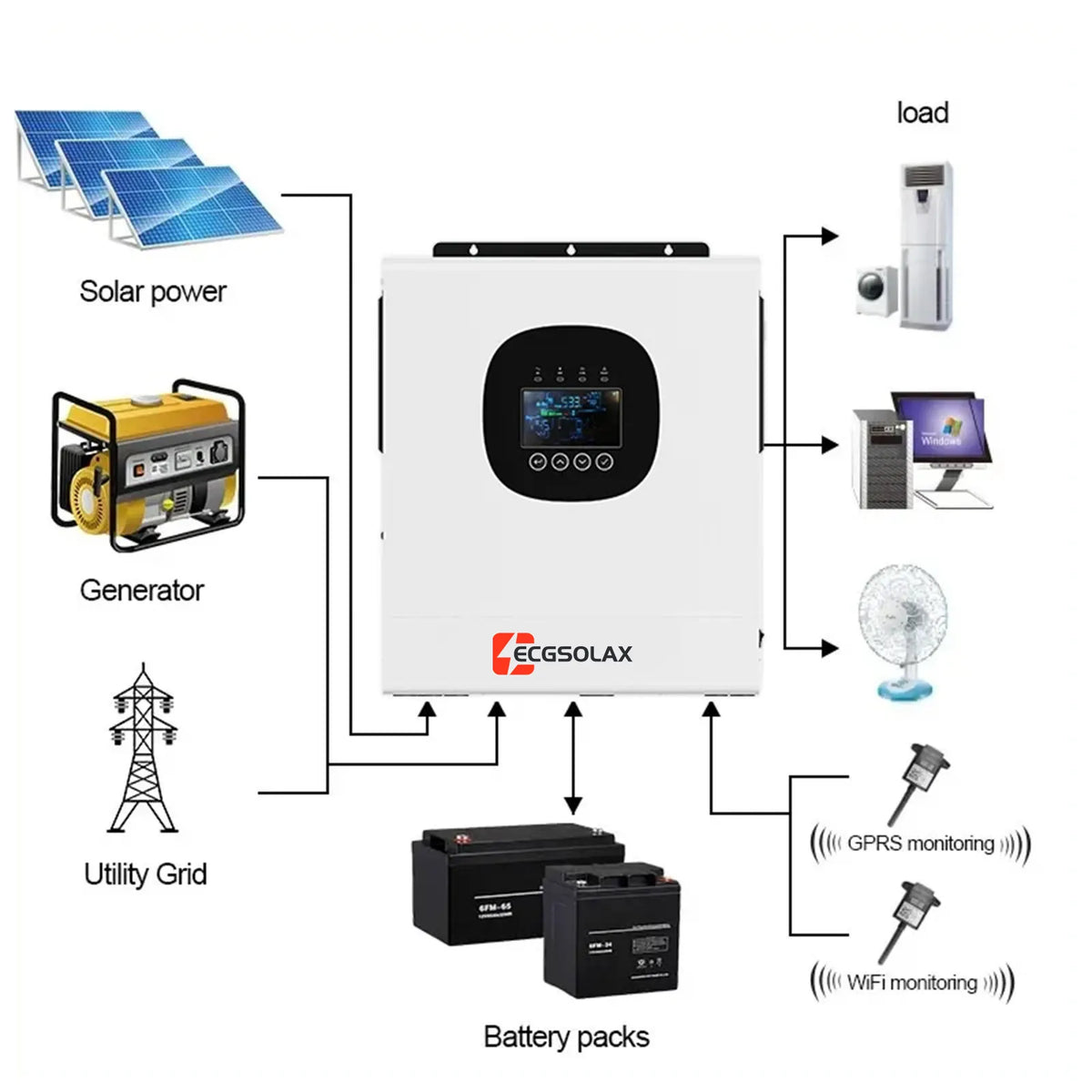

The ECG-HVM12K-48V hybrid solar inverter supports multiple energy sources including solar panels, utility grid, generators, and battery storage. It intelligently manages power distribution to provide stable electricity for household appliances.

With WiFi and GPRS remote monitoring, users can track system performance and energy usage in real time. The inverter also supports 48V battery systems, including lithium and lead-acid batteries, and features automatic lithium battery activation for reliable system startup.
