Vendor : ECGSOLAX
Sku : KOP-LV10L
Powerwall 200Ah 51.2V Lithium Energy Storage Battery
- Regular price
- $2,499.00 USD
- Regular price
-
$3,699.00 USD - Sale price
- $2,499.00 USD
- Unit price
- per
Couldn't load pickup availability
Description
Powerwall 48V 200Ah LiFePO4 Energy Storage Battery is an energy storage battery and can be used widely in many different areas, such as solar system, solar kit, RV, and also can work as a power supply to your RV, offgrid road camping life, huntinglife etc.
Features

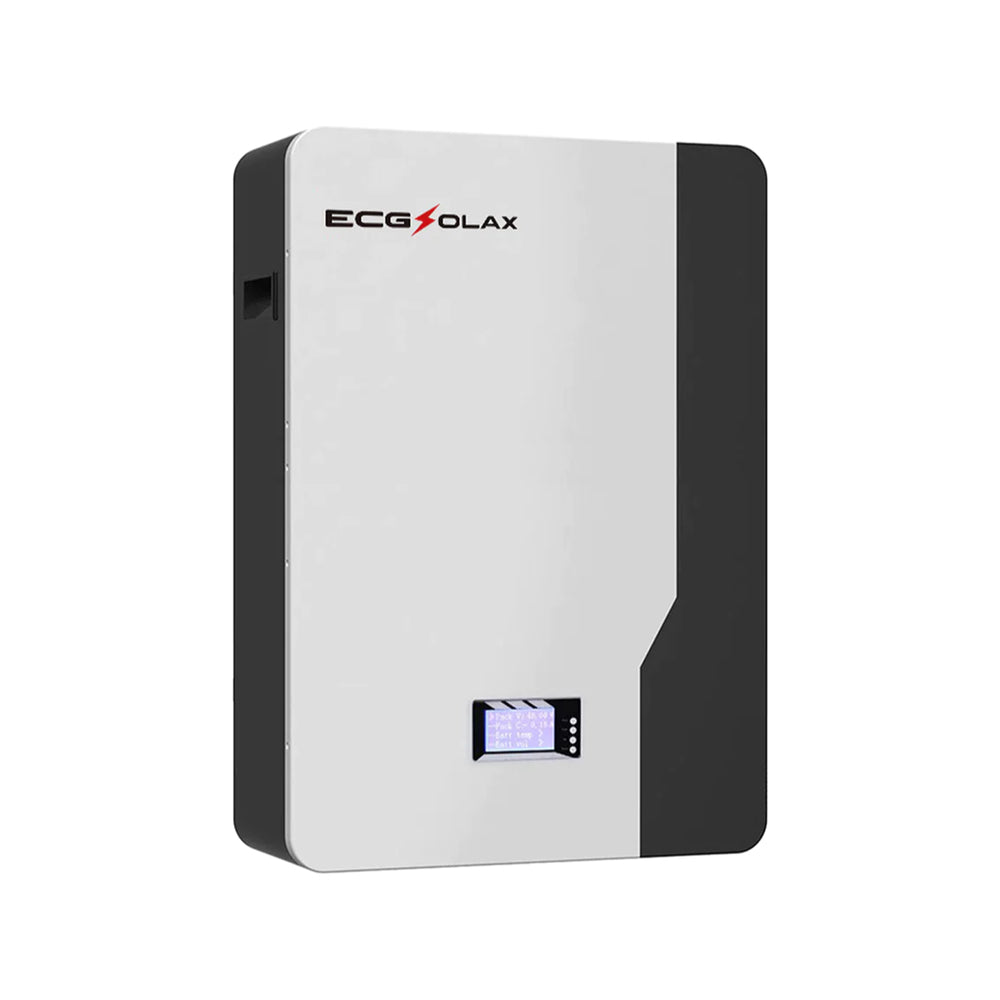

1.Outside large LCD screen to read the real-time charge and discharge data.
2.It adopts high-performance LiFePO4, to assure a much higher safety performance and a longer service life.
3.It adopts air cooling to improve product reliability

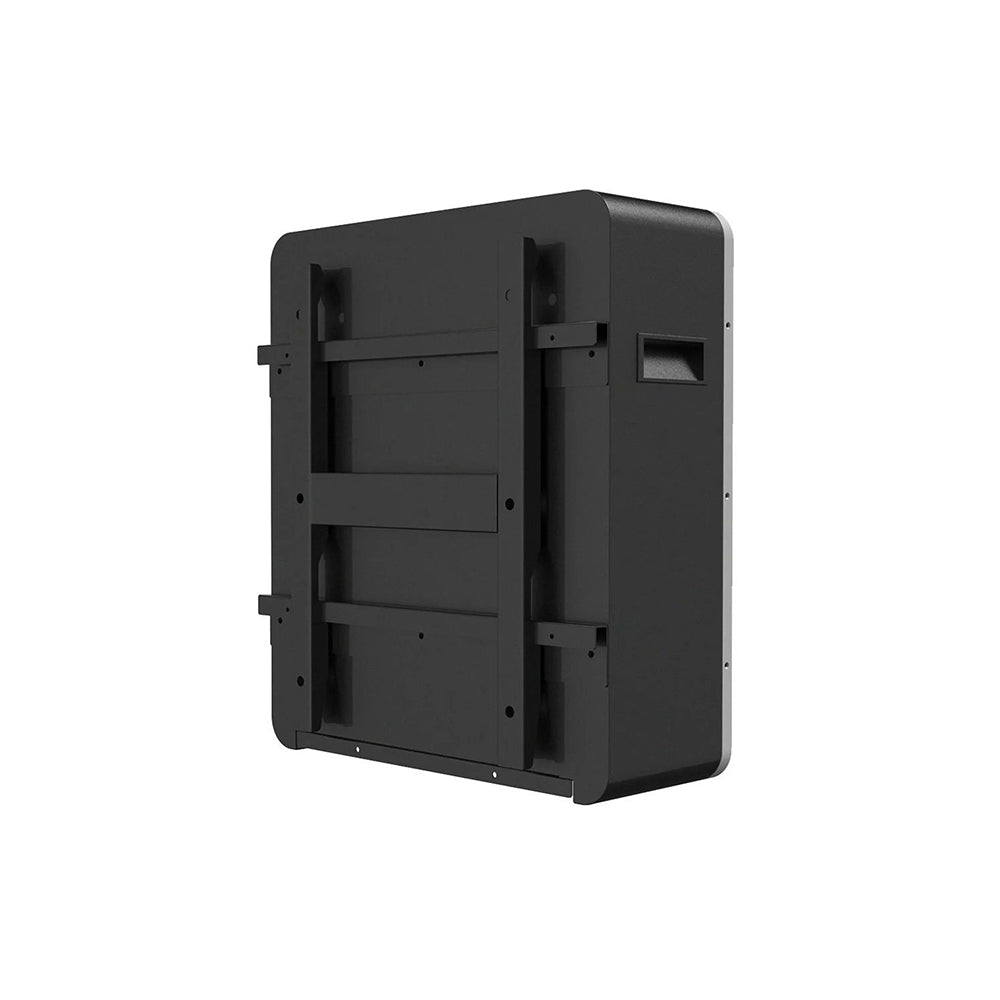

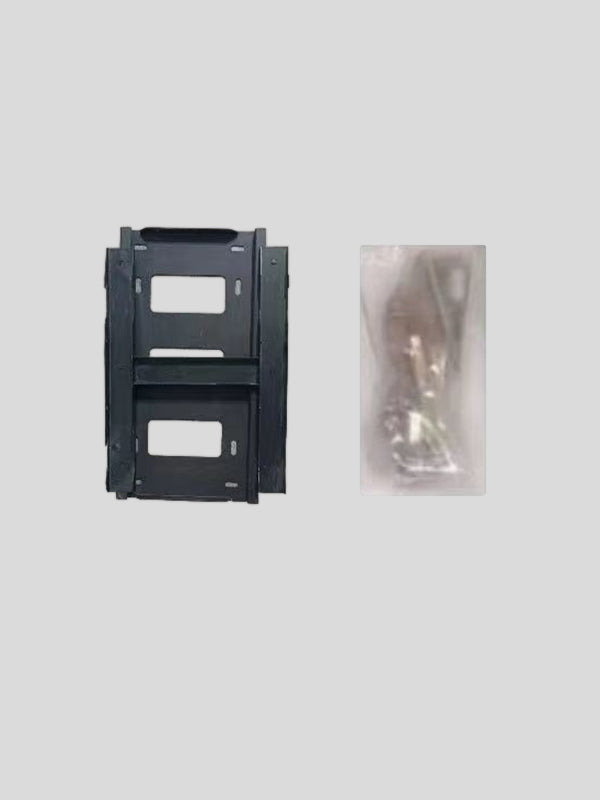

4. The energy storage battery comes with foot pads & wall brackets, to satisfy different installation and usage occasions requests.
5. Multiple protection functions to assure the safety of the Lithium batteries.
6.The output is very stable, perfect to power different loads inside the voltage range.
7. 15 independent units can be used in a parallel ray.
Specification
| Basic Characteristics | |
| Model | KOP-LV10L |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Effciency | ≥96% |
| lnner Resistance | 7mΩ |
| Cell Type | LiFePO4 |
| Energy | 10.24KWh |
| Charging Characteristics | |
| Charge Voltage | 54.7V |
| Standard Charging Current | 40A |
| Max.Continuous Charging Current | 100A |
| Discharge Characteristics | |
| Standard Discharge Current | 40A |
| Continuous Discharge Current | 100A |
| Peak Discharge Current | 200A(3S) |
| Discharge Cut-off Voltage | 37.5V |
| Environmental Requirements | |
| Charge Temperature Range | 0~60°C |
| Discharge Temperature Range | -10°C~65°C |
| Storage Temperature Range | -5~40°C |
| Storaqe Humidity | 65±20％HR |
| Mechanical Characteristics | |
| Size(L×W×H) | 670×440×206mm |
| Package Size (L×W×H) | 730×270×500mm |
| Shell Material | SPCC |
| Net Weight | 70kg |
| Gross Weight | 85kg |
| Package Method | 1pcs per carton |
| Others Characteristics | |
| Cycle Life | ≥6000 times |
| Self Discharge | 2% per month |
| SOC Indication | LED Light & LCD Screen |
| Communication Protocol | RS485/CAN |
| Protections | OVP/UVP/OCP/OTP/UTP/SCP etc. |
| Parallel Support | YES, Max. 15 unites |
| Protection grade | IP21 |
| Matching Inverter | Growatt, Goodwe, Deye, Luxpower, Victron,EG4 etc. |
