Vendor : ECGSOLAX

Sku : EBSC2024

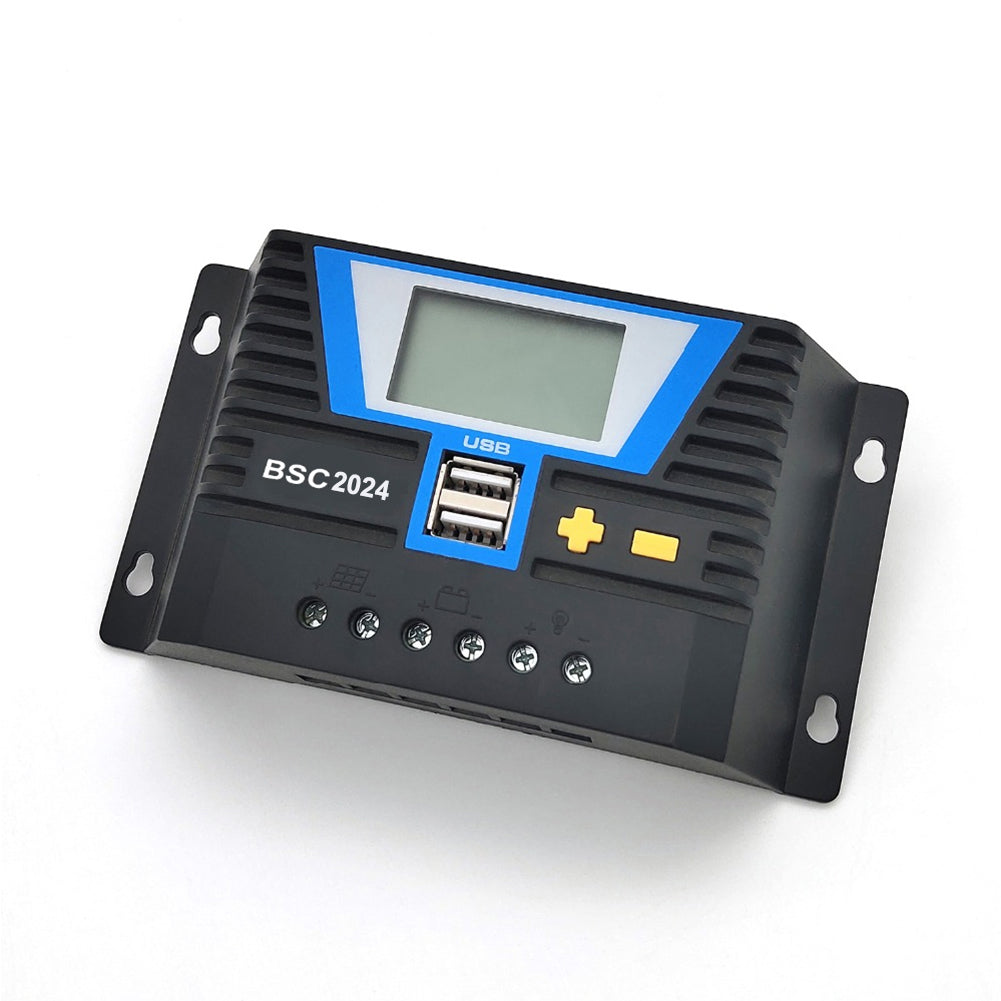

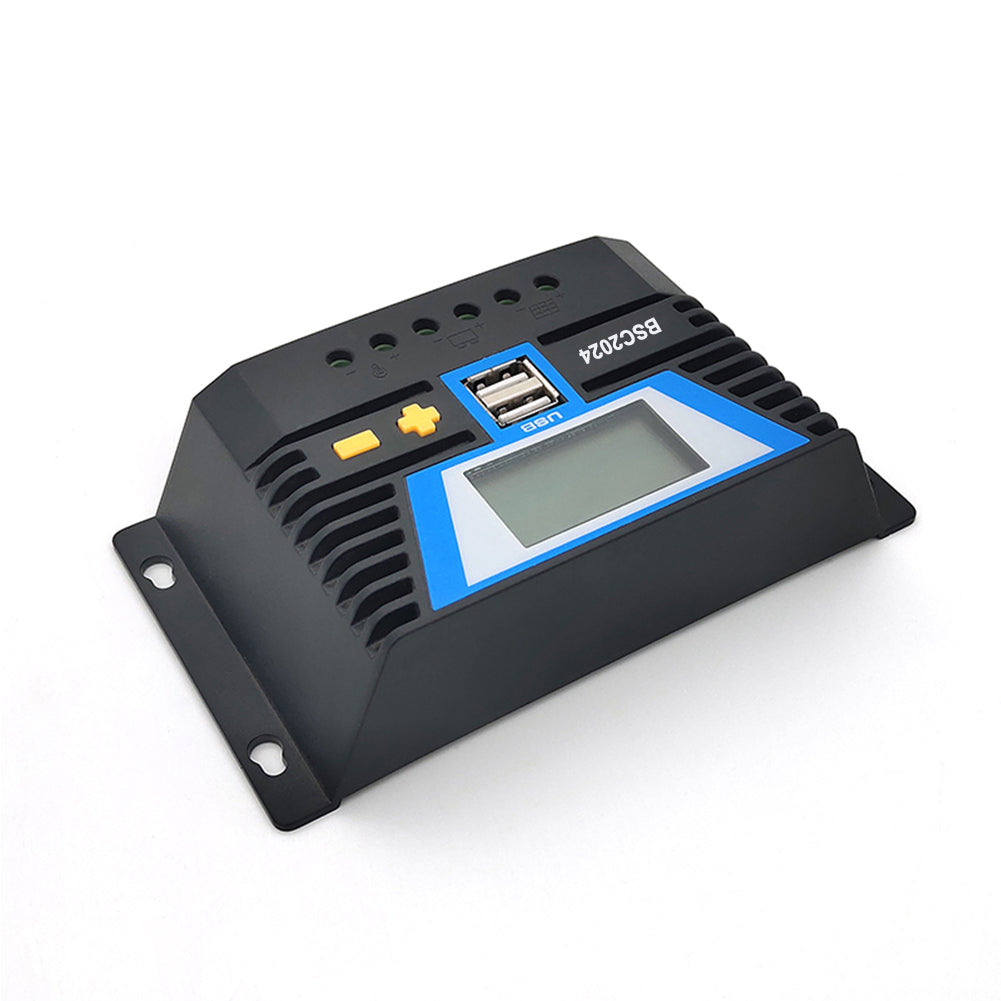

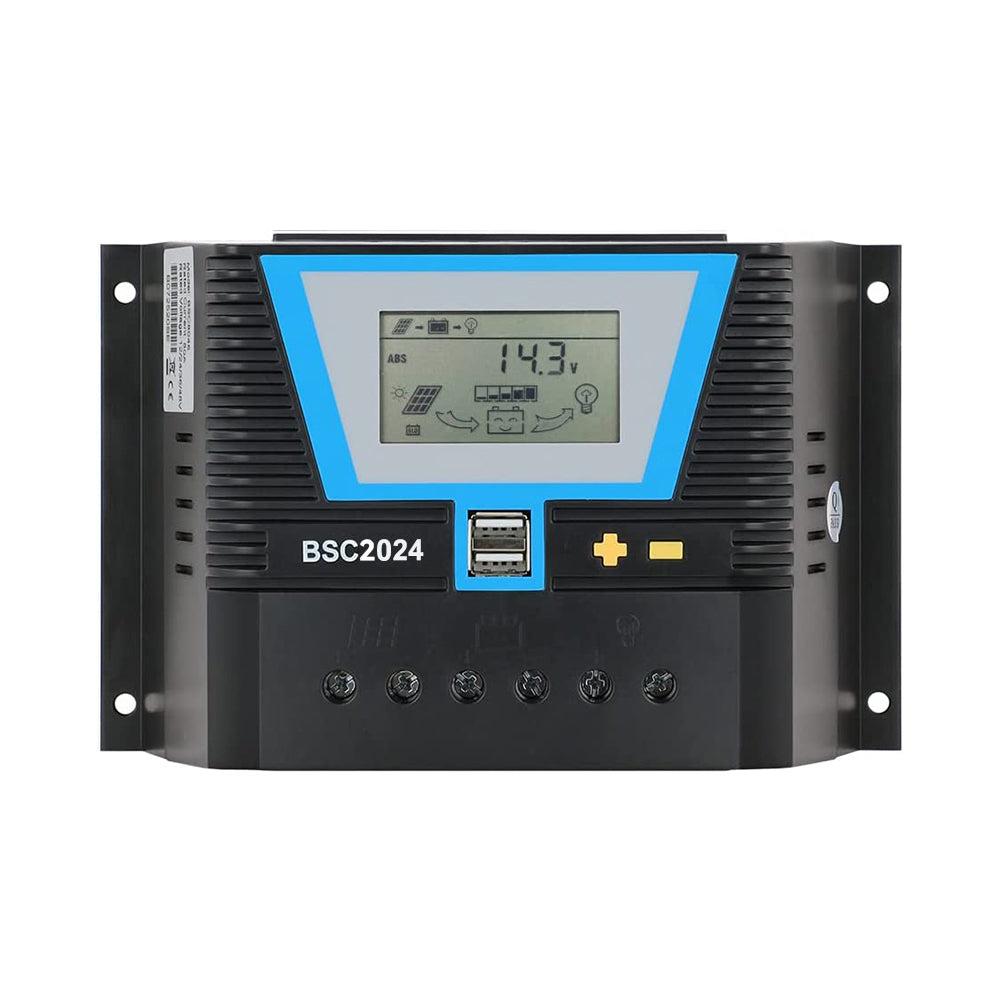

20Amp 12V/24V Auto PWM Solar Charge Controller

No review yet. Write Review
$12.84 USD
$26.86 USD
$12.84 USD
Shipping calculated at checkout.

Description

Ecgsolax 20Amp PWM Solar Charge Controller can be compatible with 12V 24V 36V 48V solar systems, and it has auto Dual USB Output, this 30a Charge Controller Regulator is fit for Lithium/Lead-Acid Battery.

 Ecgsolax makes Economic, Clean & Green Energy Freedom for All!

Features

1. 30amp PWM solar controller, 12v 24v 36v 48v DC AUTO
2. 12V system, Max solar power up to 960W;
    24V system, Max solar power up to 1920W;
3. Intelligent 4 stages PWM charge controller: Bulk, Absorption, Equalize, Float;
4. Compatible batteries type: Lead-acid battery (Sealed, Gel, Flooded) ; Lithium battery (LiCoMnNiO2, LiFePO4);
5. Rich LCD display with Back-lighting shows the device’s operating data and working condition
6. Double USB output 5V/2A, Automatic temperature compensation and accumulated function of charge and discharge KWH.



Specification

PWM Solar charge controller-20amp
Battery Voltage/System Voltage 12V/24V Auto
Max PV Open Circuit Voltage 100V
Self-consumption ≤30mA
Battery Types Sealed Battery (Default), Gel, Flooded, Lead-Acid User-defined, LiFePO4: 3.2V-4S /8S /12S /16S, LiFePO4: 3.2V-5S /10S /15S/20S, LiCoMnNiO2: 3.7V-3S /6S /9S /12S, LiCoMnNiO2: 3.7V-4S /8S /12S /16S, Lithium User-defined Battery
Rated Charge/discharge Current 20A
MAX Solar Panel Power

960W for 12V system;

1920W for 24V system;
Temperature Compensation -4mV/℃/2V (25℃)
Protection Category IP32
Humidity 95%, no-condensing
Terminals 6AWG/16mm⊃2
Mounting Hole Size 177*60mm-Φ5mm
Dimension 187*96*47mm
Weight 0.4 kg
