Vendor : ECGSOLAX

Sku : EBSC8048

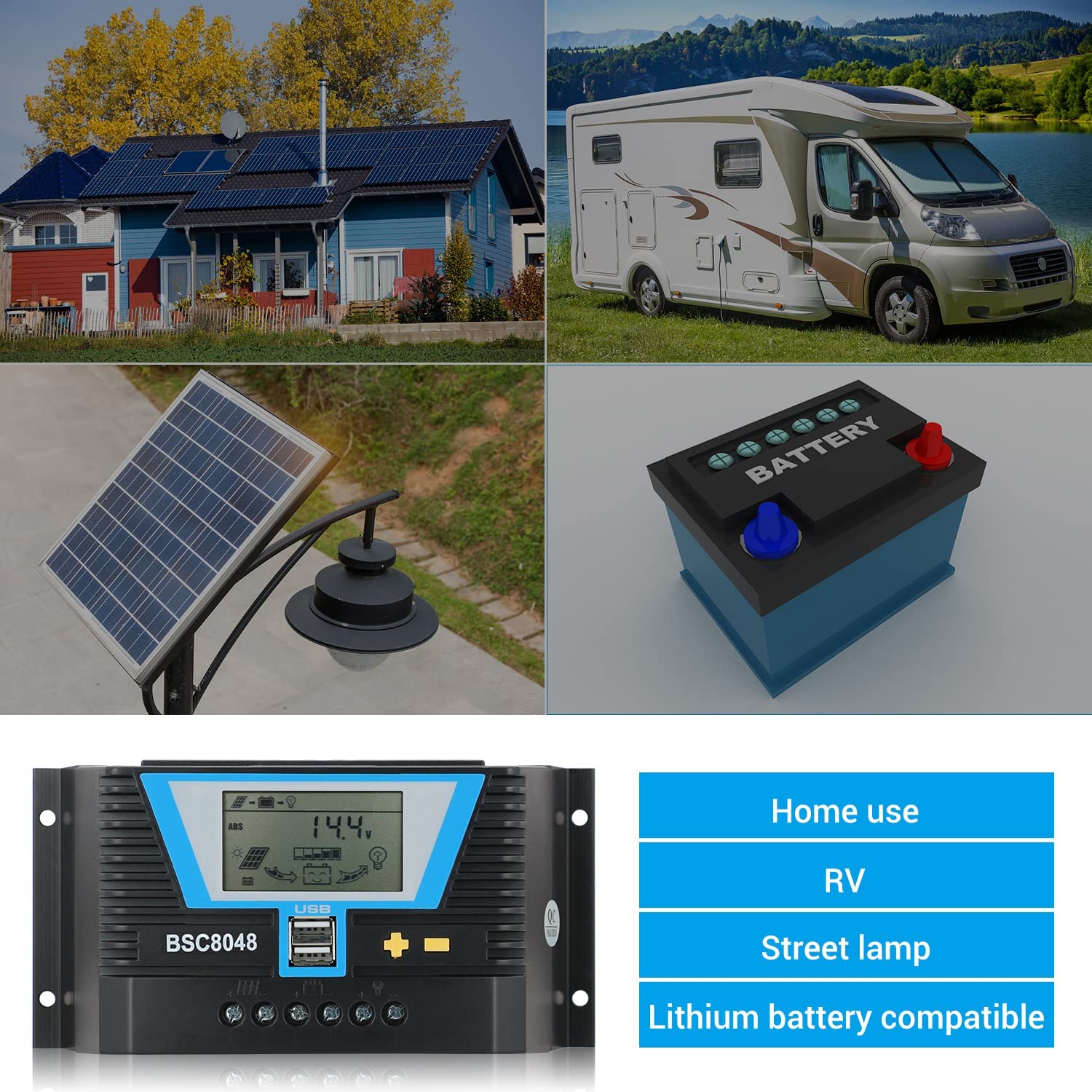

80Amp 12V/24V/36V/48V PWM Solar Charge Controller

No review yet. Write Review
$34.23 USD
$71.64 USD
$34.23 USD
Shipping calculated at checkout.

Description

Ecgsolax 80Amp PWM Solar Charge Controller can be compatible with 12V 24V 36V 48V solar system, and it has auto Dual USB Output, this 30a Charge Controller Regulator is fit for Lithium/Lead-Acid Battery.

 Ecgsolax makes Economic, Clean & Green Energy Freedom for All!

Features

1. 80amp PWM solar controller, 12v 24v 36v 48v DC AUTO
2. 12V system, Max solar power up to 960W;
    24V system, Max solar power up to 1920W;
    36V system, Max solar power up to 2880W;
    48V system, Max solar power up to 3840W;
3. Intelligent 4 stages PWM charge controller: Bulk, Absorption, Equalize, Float;
4. Compatible batteries type: Lead-acid battery (Sealed, Gel, Flooded) ;Lithium battery (LiCoMnNiO2, LiFePO4);
5. Rich LCD display with Back-lighting shows device’s operating data and working condition
6. Double USB output 5V/2A, Automatic temperature compensation and accumulated function of charge and discharge KWH;

Specification

PWM Solar charge controller-80amp
Battery Voltage/System Voltage 12V/24V/36V/48V Auto
Max PV Open Circuit Voltage 100V
Self-consumption ≤30mA
Battery Types Sealed Battery (Default), Gel, Flooded, Lead-Acid User-defined, LiFePO4: 3.2V-4S /8S /12S /16S, LiFePO4: 3.2V-5S /10S /15S /20S,LiCoMnNiO2: 3.7V-3S /6S /9S /12S,LiCoMnNiO2: 3.7V-4S /8S /12S /16S, Lithium User-defined Battery
Rated Charge/discharge Current 80A
MAX Solar Panel Power 960W when 12V system; 1920W/24V; 2880W/36V; 3840W/48V;
Temperature Compensation -4mV/℃/2V (25℃)
Protection Category IP32
Humidity 95%, no-condensing
Terminals 4AWG/25mm²
Mounting Hole Size 190*104mm-Φ5mm
Dimension 200*132*62mm
