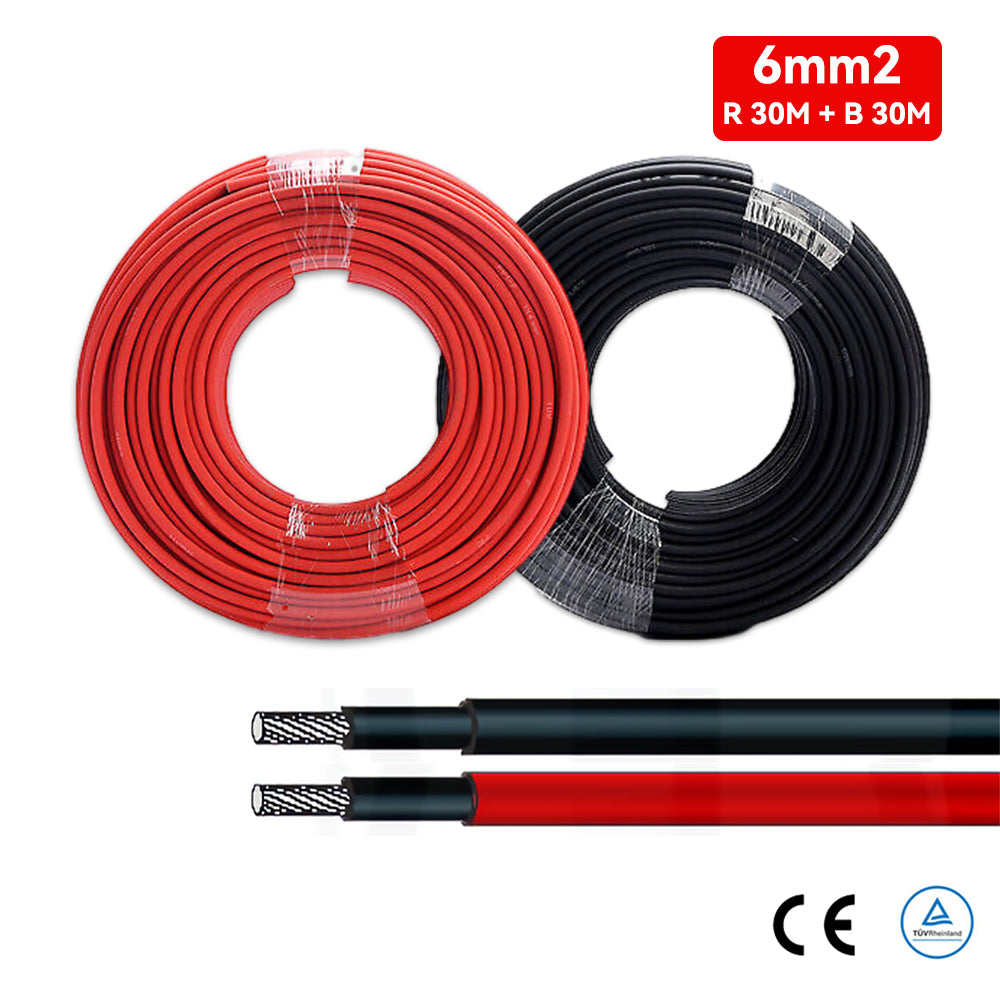

30M 6mm2 PV Wire MC4 Cable 10AWG TUV Proved - Red&Black

Regular Price
Sale Price
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.

These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the “inverter”. They operate at dc voltages and provide long life in exposed conditions.

Conductor: Tinned copper wire
Insulation: XLPO
Jacket: XLPE
Wire size range: 6.0 mm2 10 AWG
Rated temperature: -40~ 90
Rated Rating: AC:0.6-1.0KV DC:1.8kv (TÜV CABLE) AC: 0.6KV(UL CABLE)
Weathering Resistance: Sun Resistant
Standard: TÜV: 2PfG 1169 08.2007 UL: 4703
Color: Black & Red
Conductor Construction(n/mm): TXR84/0.30
Conductor Stranded OD.(mm): 3.42
Insulation Min.Wall Thickness (mm): 0.8
Sheath Min.Wall Thickness (mm): 0.80
Cable OD.(mm): 7.20
Conductor MaxResistance AT20°C(?/km): 3.30
Current Araaing Capacity AT60°C(A): 70

Please let us know if you have any questions about this product.
