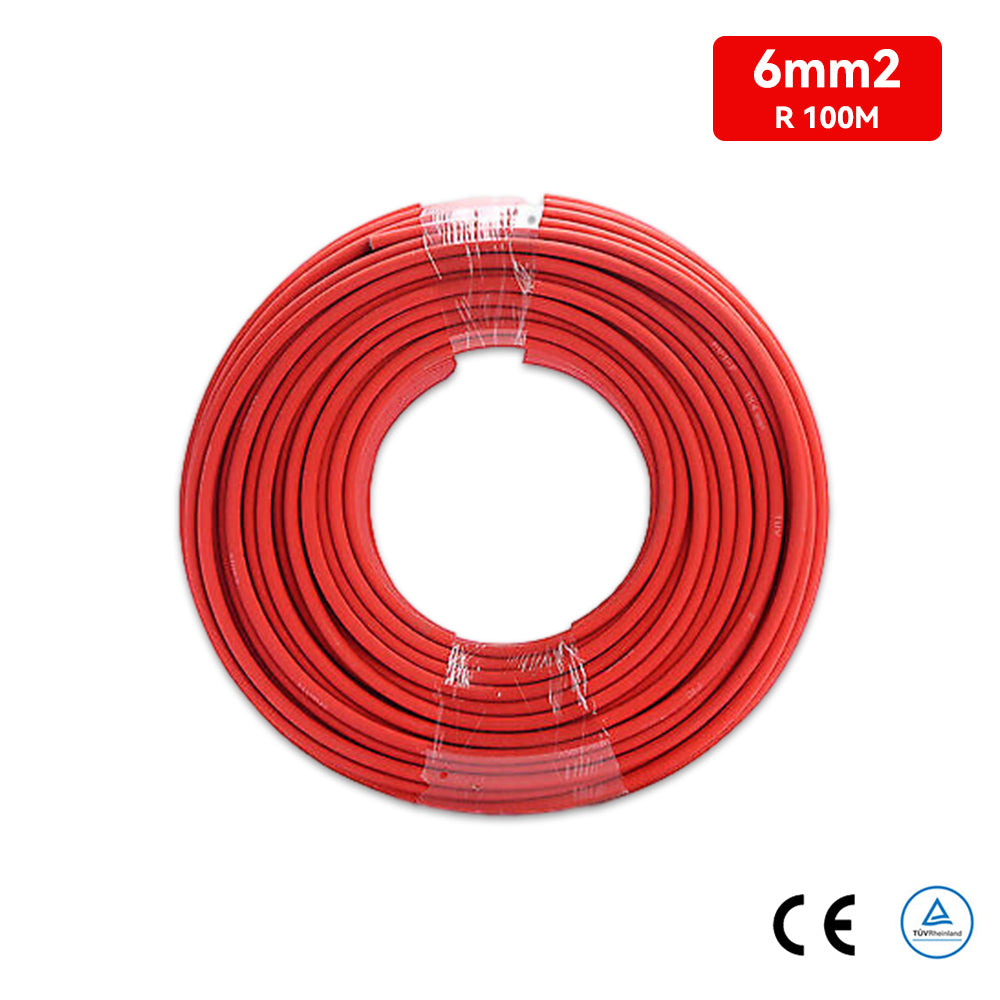

These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the “inverter”. They operate at dc voltages and provide long life in exposed conditions.
Conductor: Tinned copper wire
Wire size range: 6.0 mm2 10 AWG
Rated temperature: -40~ 90
Rated Rating AC: 0.6-1.0KV DC:1.8kv (TÜV CABLE)
AC: 0.6KV(UL CABLE)
Weathering Resistance: Sun Resistant
Standard: TÜV: 2PfG 1169 08.2007 UL: 4703
Conductor Construction（n/mm): TXR84/0.30
Conductor Stranded OD.(mm): 3.42
Insulation Min.Wall Thickness (mm): 0.8
Sheath Min.Wall Thickness (mm): 0.80
Cable OD.(mm): 7.20
Conductor MaxResistance AT20°C(?/km) 3.30
Current Araaing Capacity AT60°C(A): 70
