6000W DC 1000V AC 380V 3 Phase 2 MPPT Grid tie Hybrid Inverter with WiFi

Regular Price
Sale Price
Regular Price
Sold Out
Unit Price
Translation missing: en.general.accessibility.unit_price_separator
Shipping calculated at checkout.

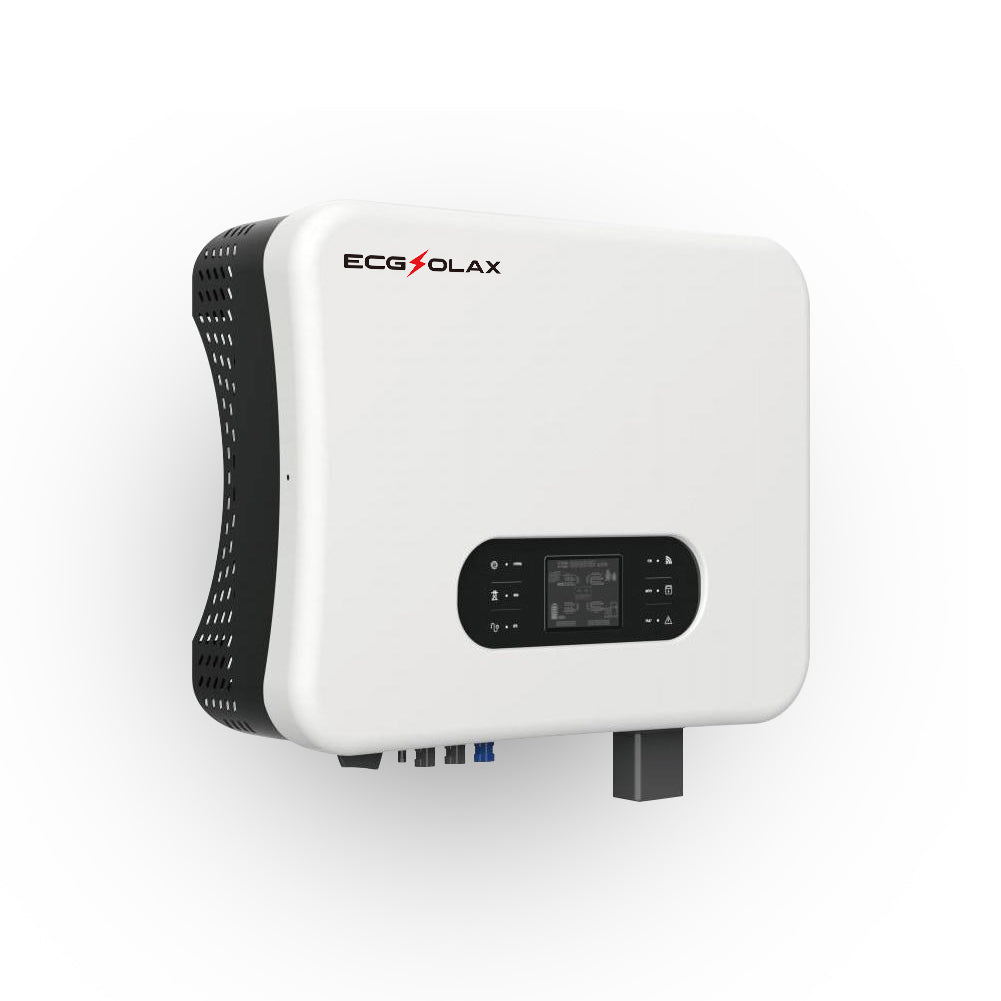

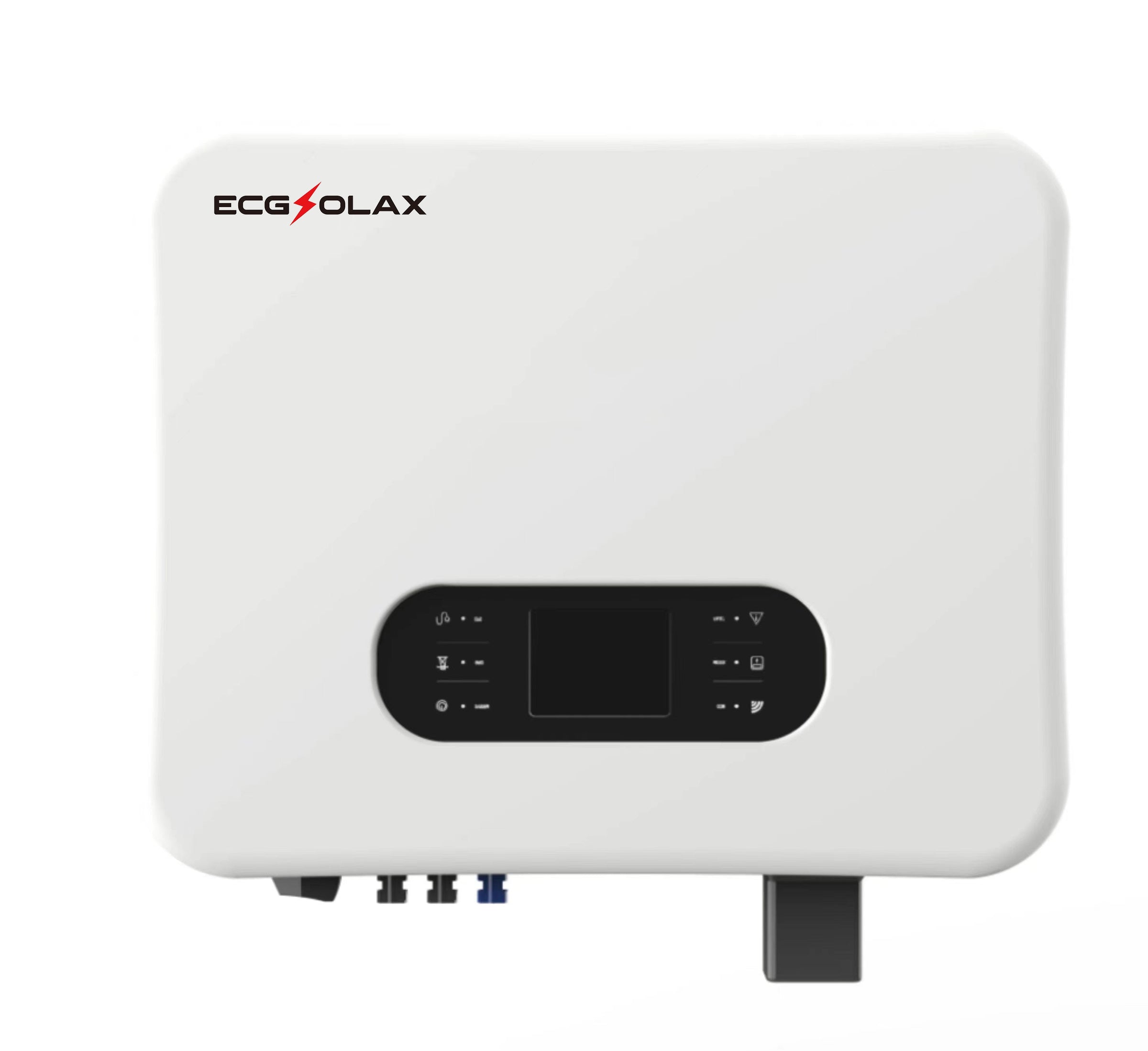

Our exceptional High Voltage Three Phase 6000W Hybrid Inverter is the perfect solution for your power management needs. Experience the convenience of a big LED display, allowing you to effortlessly monitor your system's performance. Enjoy the benefits of three-phase unbalanced output, ensuring optimal energy distribution.

Stay connected with optional WiFi, GPRS, or LAN communication, keeping you in the loop no matter where you are. Our three phase inverter is designed with your convenience in mind, offering quick and easy single person installation.

1. Big led display
2. Three phase unbalanced output
3. Power export limit
4. Wifi/GPRS/Lan communication optional
5. Simpler: Quick and easy single person installationFault codes warning view on LCD displaysmart meter optional
6. Safer: comply with international quality standardstested by TUV,BVDekra etc.
7. Great reliability: IP65 ingress protection10+years R&D accumulation and support

Max DC power: 9000W
Max DC voltage: 1000Vd.c.
MPPT voltage range: 200 - 850Vd.c.
Max input current/per string: 13Ax2
Number of MPP trackers: 2
Number of input string: 2
Battery Type: Li-Lon
Battery voltage range: 130-700V
Maximum charge/discharge current: 25/25A
Charge strategy for Li-tau Battery: Self-adaptation to BMS
AC nominal power: 6000VA
Max AC apparent power: 7000VA
Max output current: 12A
Nominal AC output: 50/60Hz; 400/350
AC output range: 45/55Hz;280-490Vac(Adj)
Power factor: 0.81eading ... 0.81aging
Harmonics factor: <3%
Grid type: 3W/N/PE
Three-phase unbalance output: 0-100%
Max AC apparent power: 6000VA
Norminal Output Voltage: 400/380V
Norminal Output Freqency: 50/60HZ
Output THDV (@Liuear Load): <3%
Dimension (W/H/D): 548*444 *184mm
Weight: 30 kg
Degree of protection: IP65
Communication: Standard WiFi;GPRS/LAN(optional)
Warranty: Standard 5 years; 7/10 years optional
BMS communication: CAN/RS485
Meter communication: R485

Please let us know if you have any questions about this product.
