The 550 Watt Mono Half-cut Solar Panel, a cutting-edge solar solution designed to revolutionize your energy generation. With its advanced features and superior technology, this solar panel is the perfect choice for individuals and businesses seeking sustainable and reliable power.

Harnessing the power of Multi Busbar Technology, this solar panel excels in light trapping and current collection, resulting in a significant improvement in power output and overall reliability. Crafted using first-class materials, it guarantees a 10-year warranty for both material and technology, providing peace of mind for years to come. Additionally, the 25-year linear power output warranty ensures long-term efficiency and performance.

1. Multi Busbar Technology
Better light trapping & current collection to improve, effectively improve the module's power output & reliability. Made of first-class material which ensures 10-year warranty for material & technology and 25-year linear power output warranty.
2. Low Light Performance
The special solar cell technology has excellent low light power generation performance.

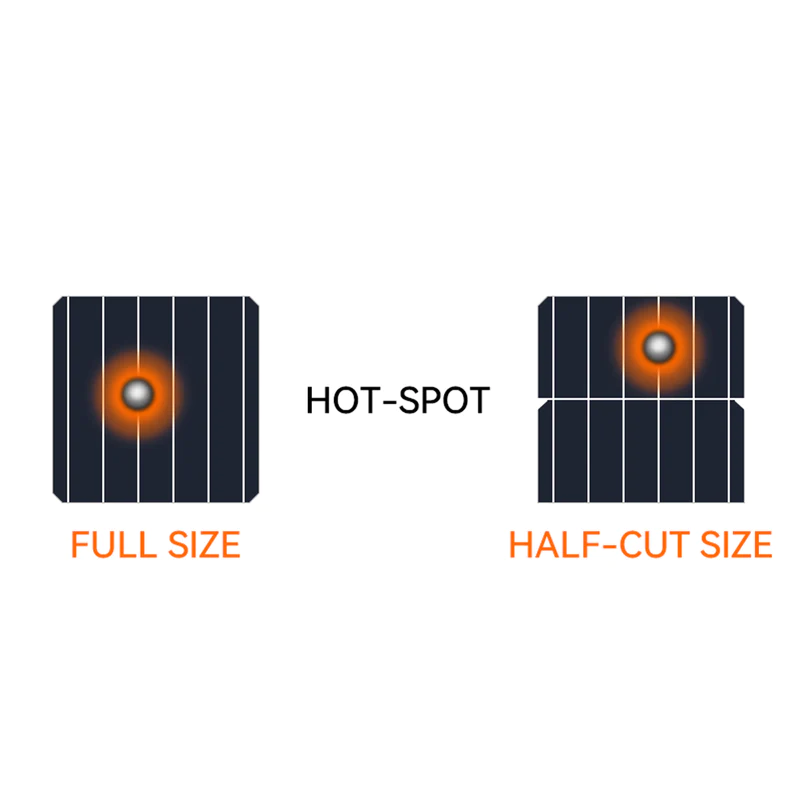

3. Batter Resistance To Hot Spots
The use of half cut cell structure & special circuit design is less shade loss, with better temperature coefficient & thermal spot resistance ability.
4. Adaptability To Harsh Environments
High performance materials are suitable for coastal, farm, desert and other harsh environmental conditions, glass surface is anti-reflective & easy to clean, minimizing power generation losses caused by dirty & dust.

Cable Cross Section Size: 4mm2(IEC), 12AWG(UL)
Solar Cells: 120(6X20)
Junction Box: IP68/FT50XY3*bypass diode
Connector: RHC2
Cable Length(Including Connector): 300mm
Front/ Back Glass: 2.0mm/2.0mm
Packaging: 31pcs/Pallet,620pcs/40HQ
Rate Maximum Power( Pmax/W): 450
Module Efficiency(%): 20.8
Open Circuit Volatge(Voc/V): 41.25
Short Circuit Current(Isc/A): 13.89
Voltage at Pmax(Vmp/V): 34.67
Current at Pmax(Imp/A): 12.98
Power Tolerance: 0~+5w
Temperature Coefficient of Isc: +0.046%℃
Temperature Coefficient of Voc: -0.276%℃
Temperature Coefficent of Pmax: -0.350%℃
STC Irradiance1000W/㎡, CellTemperature25℃, AM1.5
