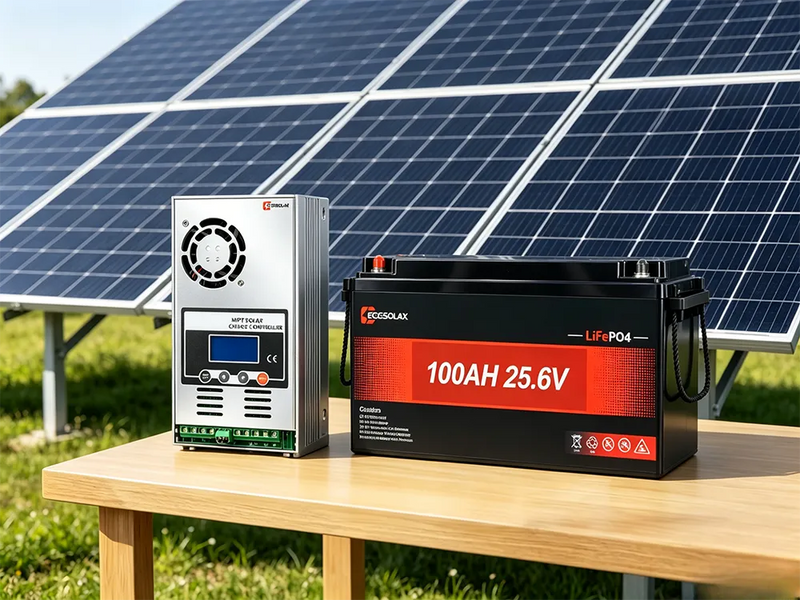

Complete Guide to Using MPPT Controllers in Off-Grid Solar Systems

An MPPT solar charge controller is often the most misunderstood yet most valuable component in an off-grid solar system. It's the brains between your solar panels and battery bank—ensuring every drop of solar energy is used efficiently.

This guide covers exactly what an MPPT controller is, why you need it for off-grid applications, how to size it properly (including battery matching, voltage/current limits, and key features like temperature compensation), and finally how to install it step by step—from connecting solar panels to wiring batteries correctly.

What is Mppt Charge Controller？

An MPPT solar charge controller (Maximum Power Point Tracking) is a vital component in any off-grid solar system. An MPPT solar charge controller (Maximum Power Point Tracking) maximizes the energy from your solar panels and safely charges batteries.

It adjusts voltage and current to extract the most power, working efficiently with 12V, 24V, 36V, or 48V battery systems. Key functions include overcharge and over-discharge protection, temperature compensation, battery type compatibility, and optional remote monitoring and load control.An MPPT controller ensures your solar energy system runs efficiently, safely, and reliably.

Why Use MPPT in Off-Grid Solar Systems?

Using an MPPT solar charge controller in off-grid solar systems is essential for several reasons:

• Maximize soalr energy utilization: MPPT continuously tracks the solar panel’s maximum power point, converting excess voltage into additional charging current. This can improve charging efficiency by up to 30%, especially under low-light or high-voltage conditions.
• Supports multiple voltage systems: Compatible with 12V, 24V, 36V, and 48V battery setups.
• Protects batteries: Prevents overcharging and deep discharge, extending battery lifespan.
  Smart management: Offers remote monitoring and load control, ensuring stable and reliable off-grid system operation.
• ECG mppt controller advantages: Features self-diagnostics and electronic protection to prevent damage to the controller or batteries from installation errors or system faults. For detailed guidance, refer to the MPPT solar charge controller user manual.

How to Choose the Right MPPT Controller?

When selecting an MPPT solar charge controller for your off-grid system, you need to consider both the solar panels and the batteries.

Matching MPPT Controller to Battery Type

Your  off-grid  battery type determines how the MPPT controller charges. Different batteries need different voltage profiles.

The Ecgsolax MPPT controller simplifies this with integrated charging presets and a one-key battery type configuration — just press once, and it's ready for flooded, gel, AGM, or lithium batteries.

Match Your Solar Panels Correctly

When choosing an MPPT solar charge controller, selecting based on your solar panels (PV) mainly involves input voltage, current. Follow these steps:

Determine the Total Solar Panel Power (W)

• Add up the power of all panels you plan to connect in series or parallel. For example:
• 4 × 350W panels → 4 × 350 = 1400W total power
• The controller’s rated input power should be ≥ total panel power, ideally with a 20%-30% margin.

Check Maximum Open-Circuit Voltage (Voc)

• Look for Voc on the solar panel’s datasheet and calculate the total Voc if connecting in series.
• The controller’s maximum input voltage must be higher than total Voc to prevent damage.
  • Example: 4 panels in series, each Voc = 50V → Total Voc = 200V
  • Controller max input voltage should be ≥ 200V (preferably ≥ 220V).

Check Maximum Input Current (Imax)

• The controller’s maximum input current should be ≥ the sum of the currents of parallel-connected panels.
• In parallel, currents add up, so ensure the controller won’t be overloaded.

Install Mppt Solar Charge Controller

Follow these steps in the exact order shown below for your Off-Grid Solar Systems. The sequence is critical — connecting incorrectly can damage the controller.

Step 1: Connect the Battery First

Start by connecting the charge controller to the battery. This is the most important step because the controller needs power from the battery to "start up" and automatically detect the system voltage (12V or 24V). Connect the positive and negative terminals from the battery to the corresponding "Battery" or "BAT" terminals on the controller.

Be very careful not to reverse the polarity. For safety, install a fuse within 150mm of the battery's positive terminal to provide short circuit protection. Once connected, the battery indicator on the controller should light up, confirming the connection is good.

Step 2: Connect the Load (Optional)

If you have DC loads such as LED lights, DC fans, or small pumps, you can connect them to the "Load" or "L1" & "L2" terminals on the controller. Connect the positive and negative wires from your load to the corresponding load terminals.

Make sure the total power of your loads does not exceed the controller's rated load output. Adding a fuse in the load circuit is also recommended for extra safety. If you are not using any DC loads, you can skip this step.

Step 3: Connect the Solar Panels Last

The final step is to connect the solar panels. Connect the positive and negative wires from your solar panel (or solar array) to the controller terminals marked "PV" or "Solar". Once connected, if there is sunlight, the charging indicator on the controller should turn on, indicating that the battery is being charged.

Keep in mind that solar panels can generate high voltage, so take caution during wiring. Also, ensure the solar panel voltage matches your controller's input range (for example, an 18V panel for a 12V battery system).

Disconnection Order (Reverse)

When you need to disconnect the system, follow the reverse order:
Solar panels → Battery → Load

Never disconnect the battery while the solar panels are still connected, as this may damage the mppt controller.
