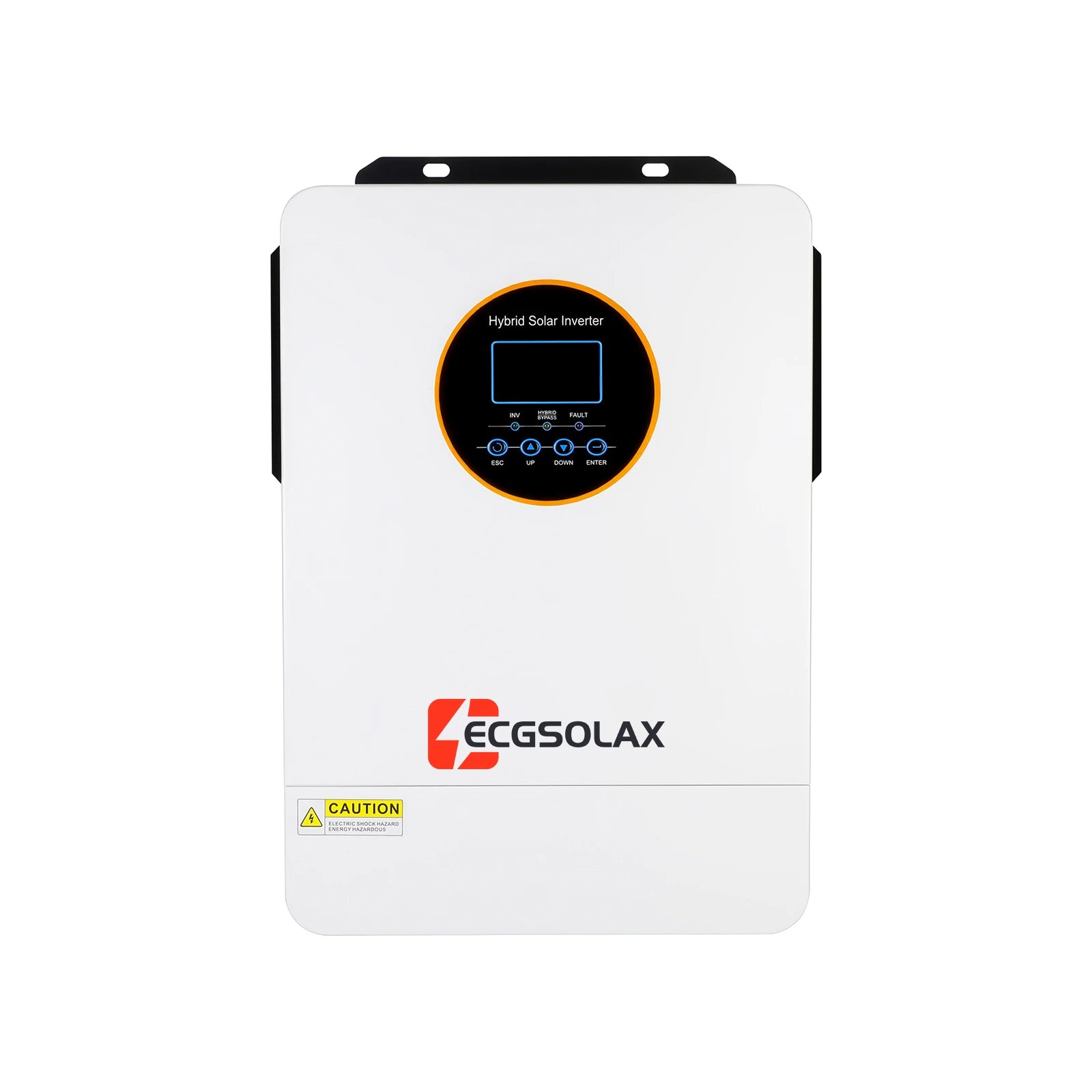

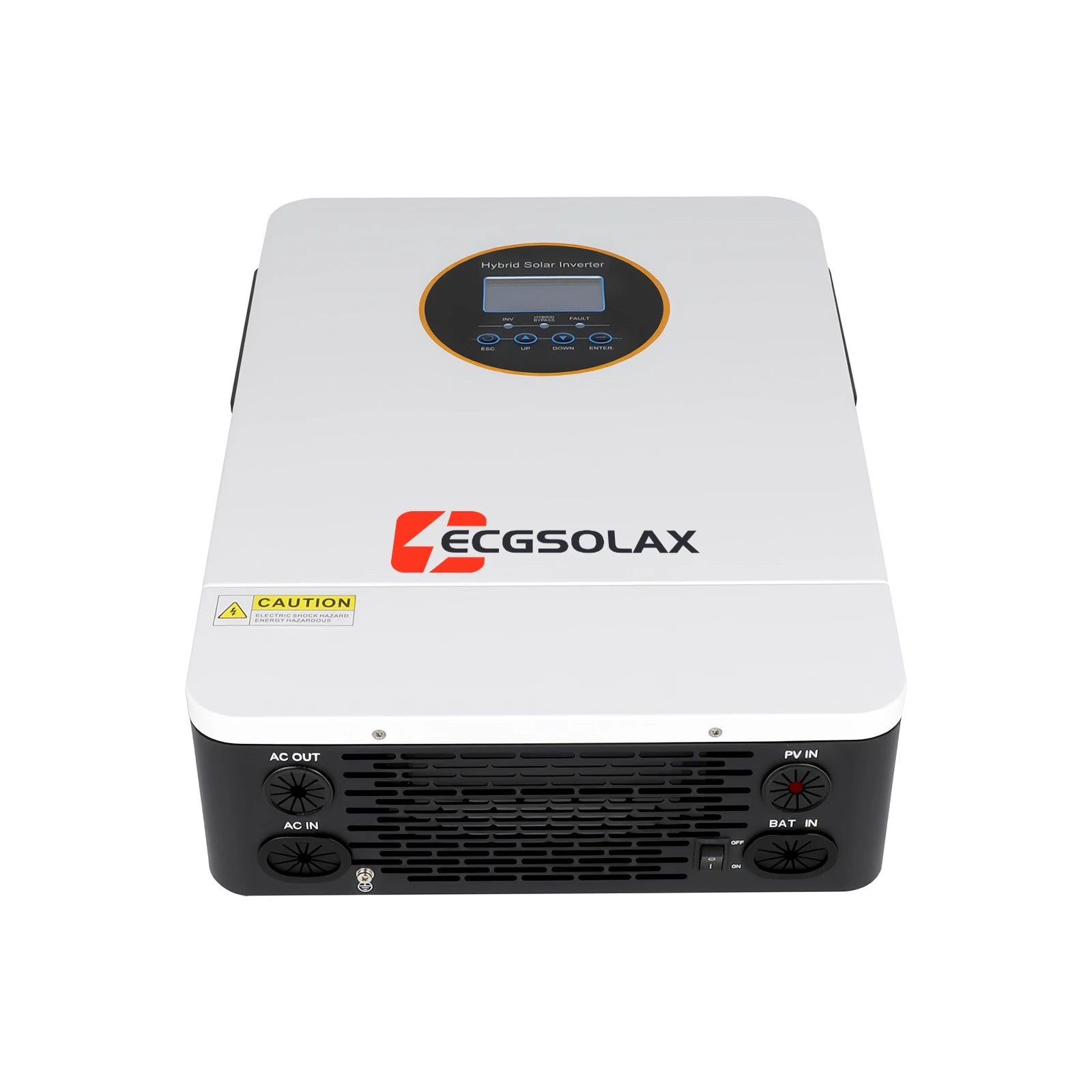

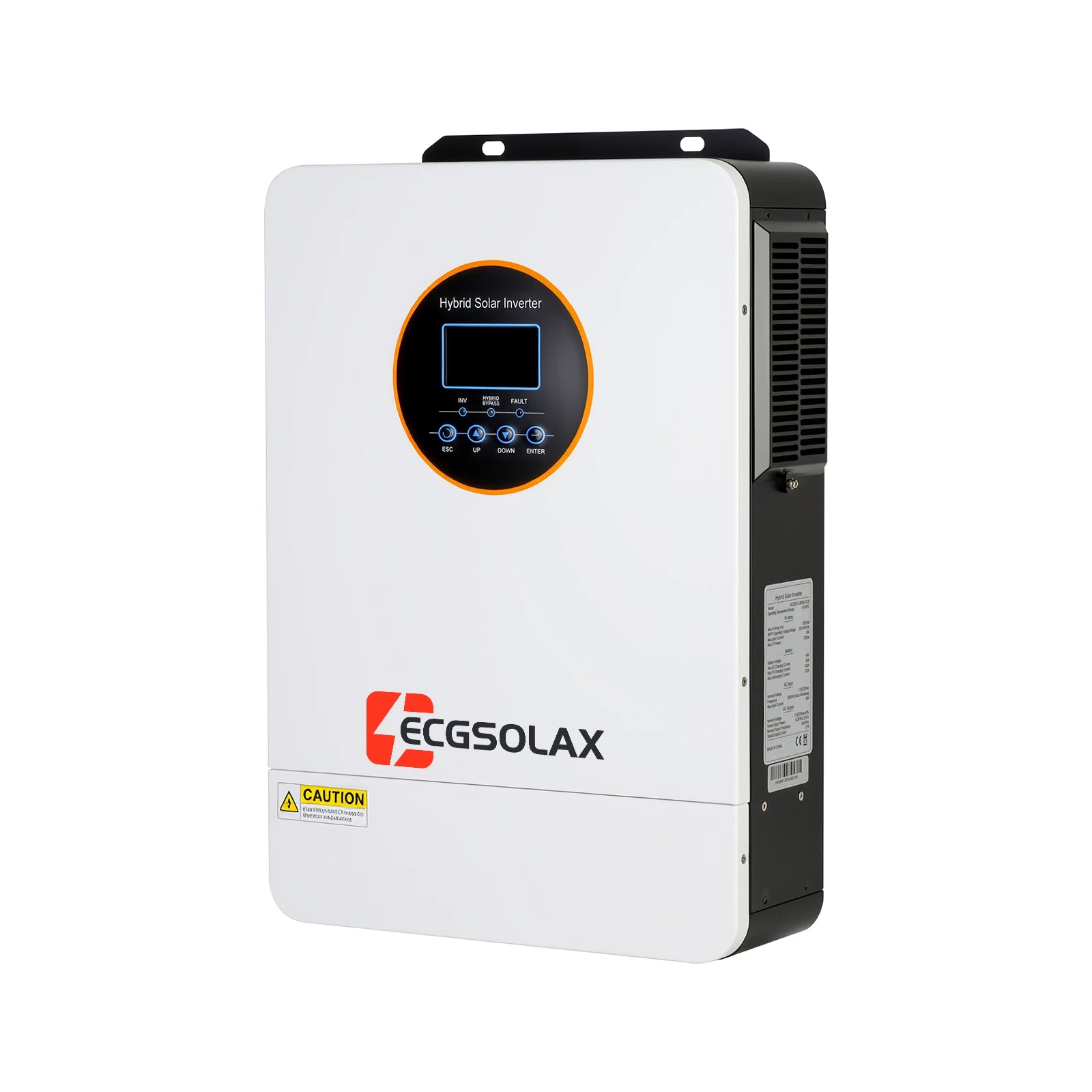

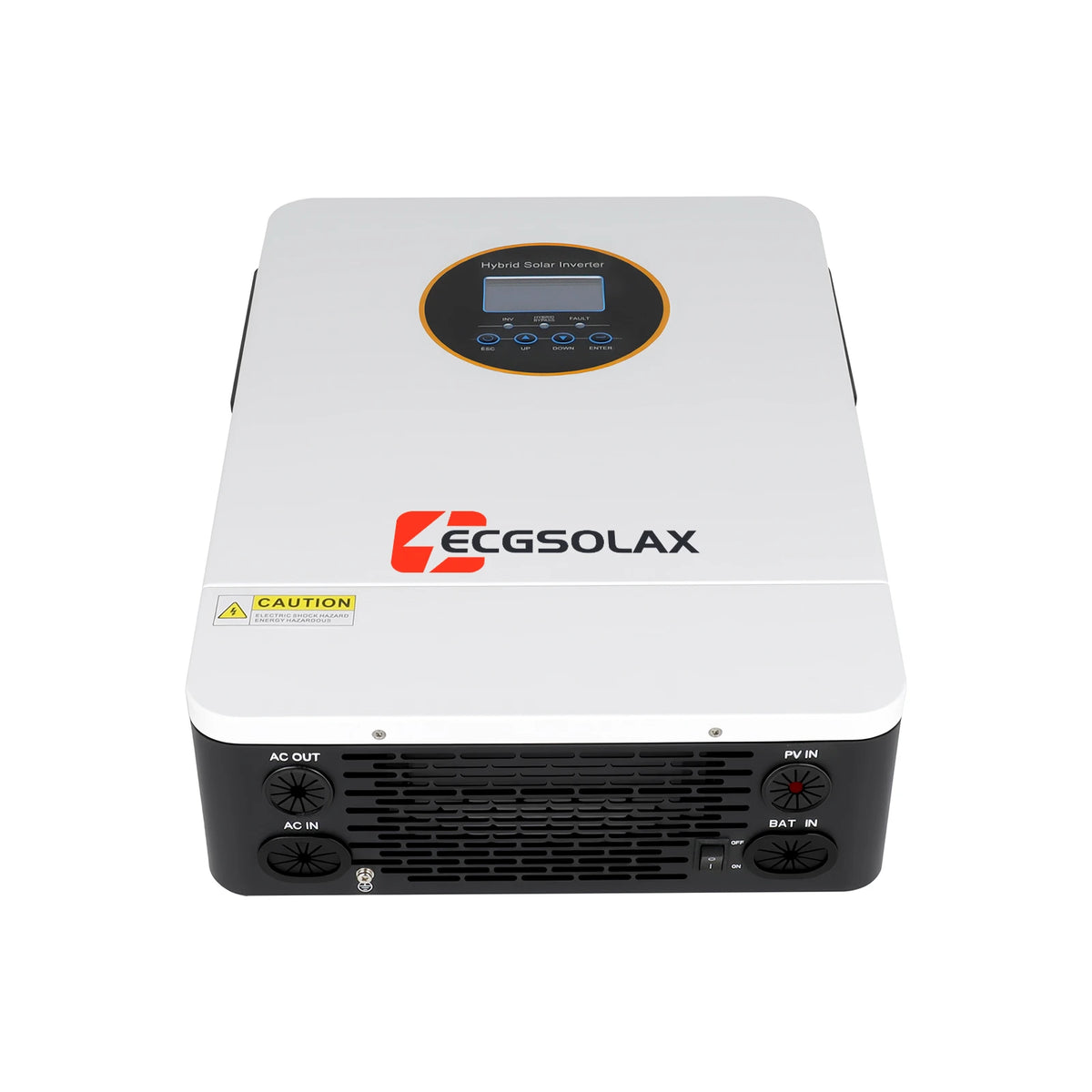

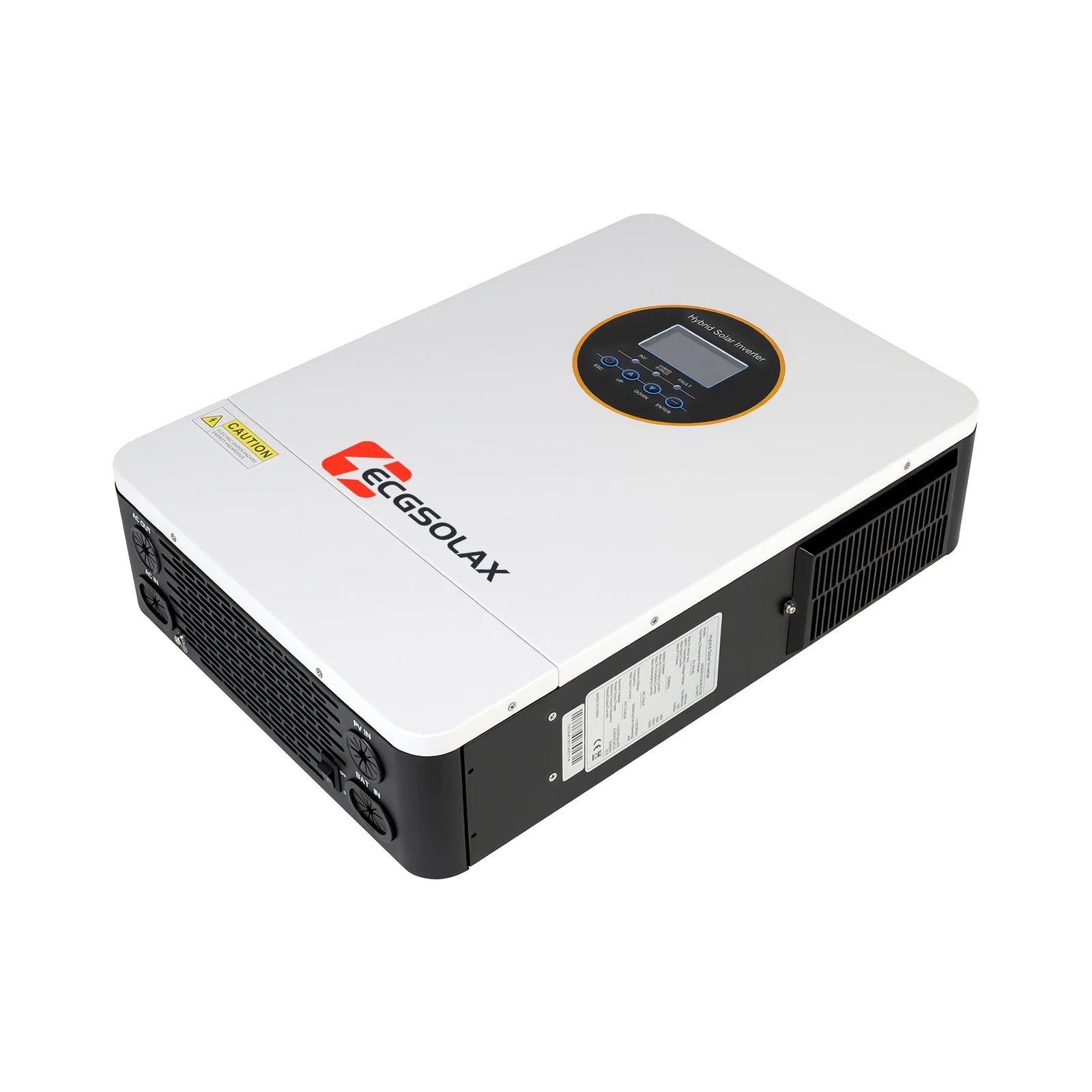

6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter
6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter

6.2kW 48V 110Vac/220Vac Split Phase All-in-One Soalr Inverter

$498.31
$498.31
$711.87
Sold Out
ECG-FU62-248P

• 6200W rated power, 8800W peak output for whole-home loads
• 120V/240V split-phase pure sine wave output
• 100A max PV charging current with 99% MPPT efficiency
• RS485 communication for real-time battery monitoring
• 10ms UPS-level transfer time, no interruption during outages
• WiFi/4G optional for remote monitoring via APP

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

Powerful PV Input & High Efficiency MPPT

This Hybrid Solar Inverter supports a massive 7200W PV array power and a 500VDC maximum open-circuit voltage, featuring a 99% MPPT efficiency. Whether in residential rooftops or small commercial settings, it maximizes solar energy utilization and significantly boosts power generation income.

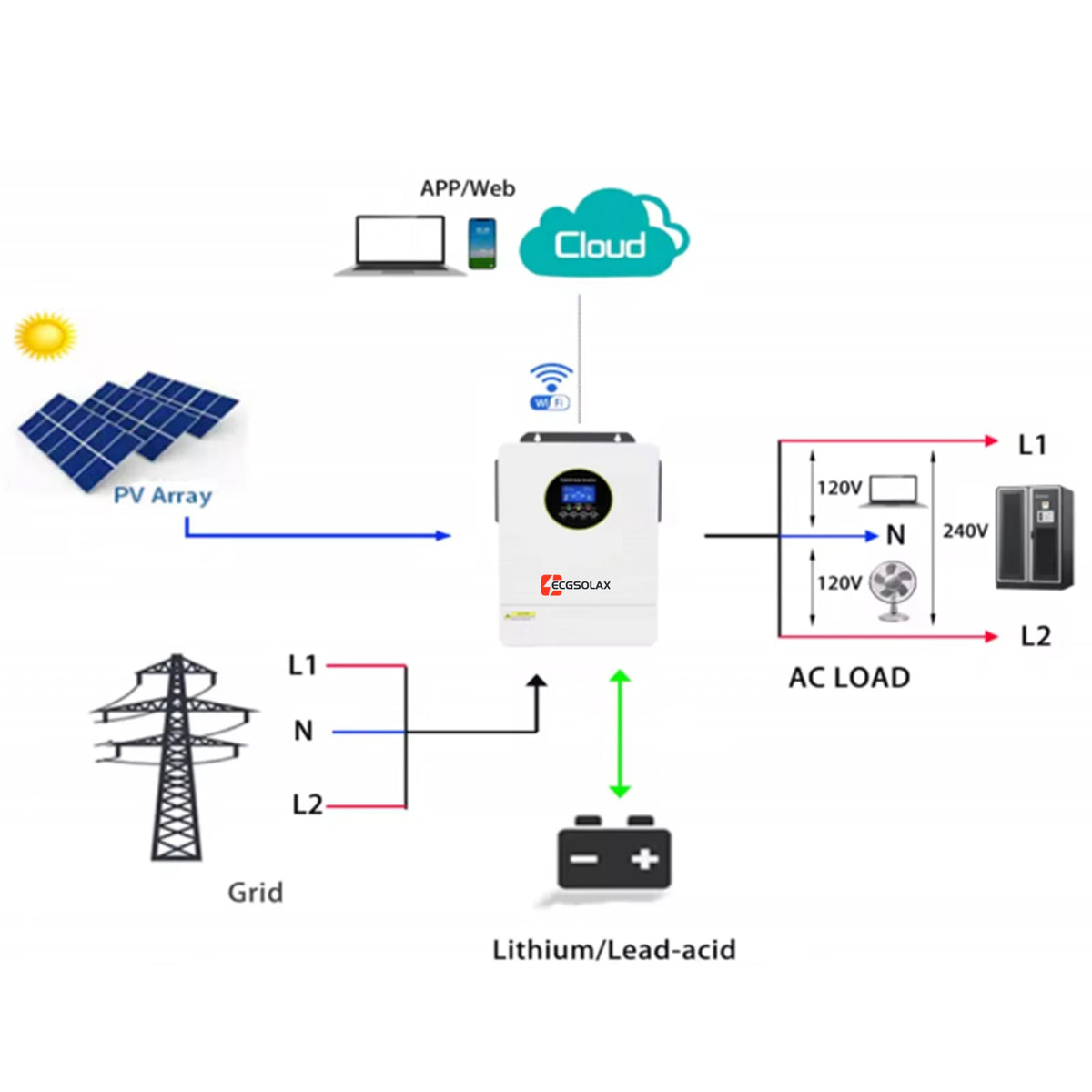

System diagram solar inverter with PV grid AC load and battery connection

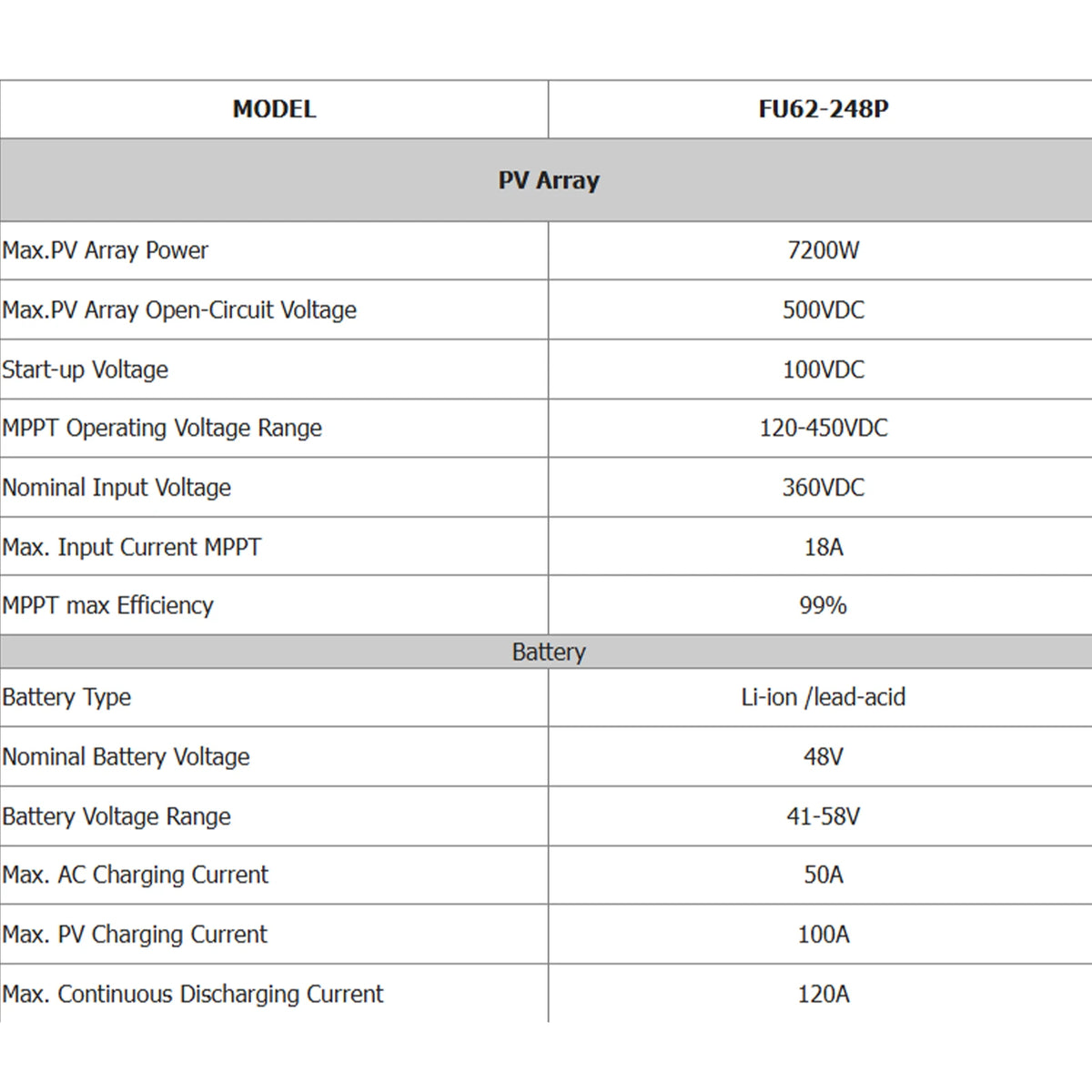

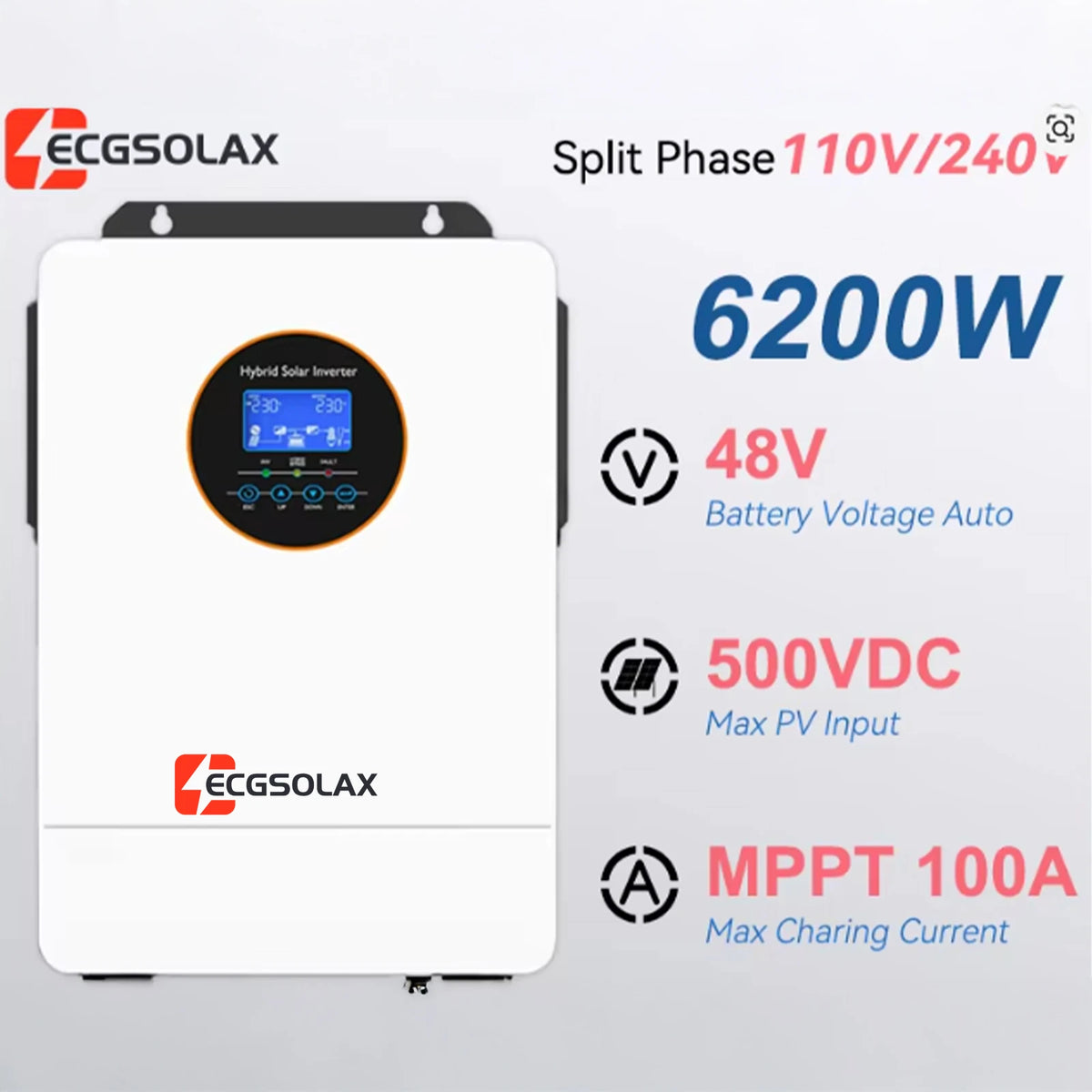

ECGSOLAX inverter specs split-phase 110V240V 6200W 48V battery 500VDC max PV input MPPT 100A charge current.

Flexible Battery Compatibility & High-Current Charging

Compatible with both Li-ion and lead-acid batteries at a nominal 48V, it offers a maximum PV charging current of 100A and a continuous discharging current of 120A. This ensures stable and long-lasting power for critical loads in off-grid scenarios or during peak usage hours.

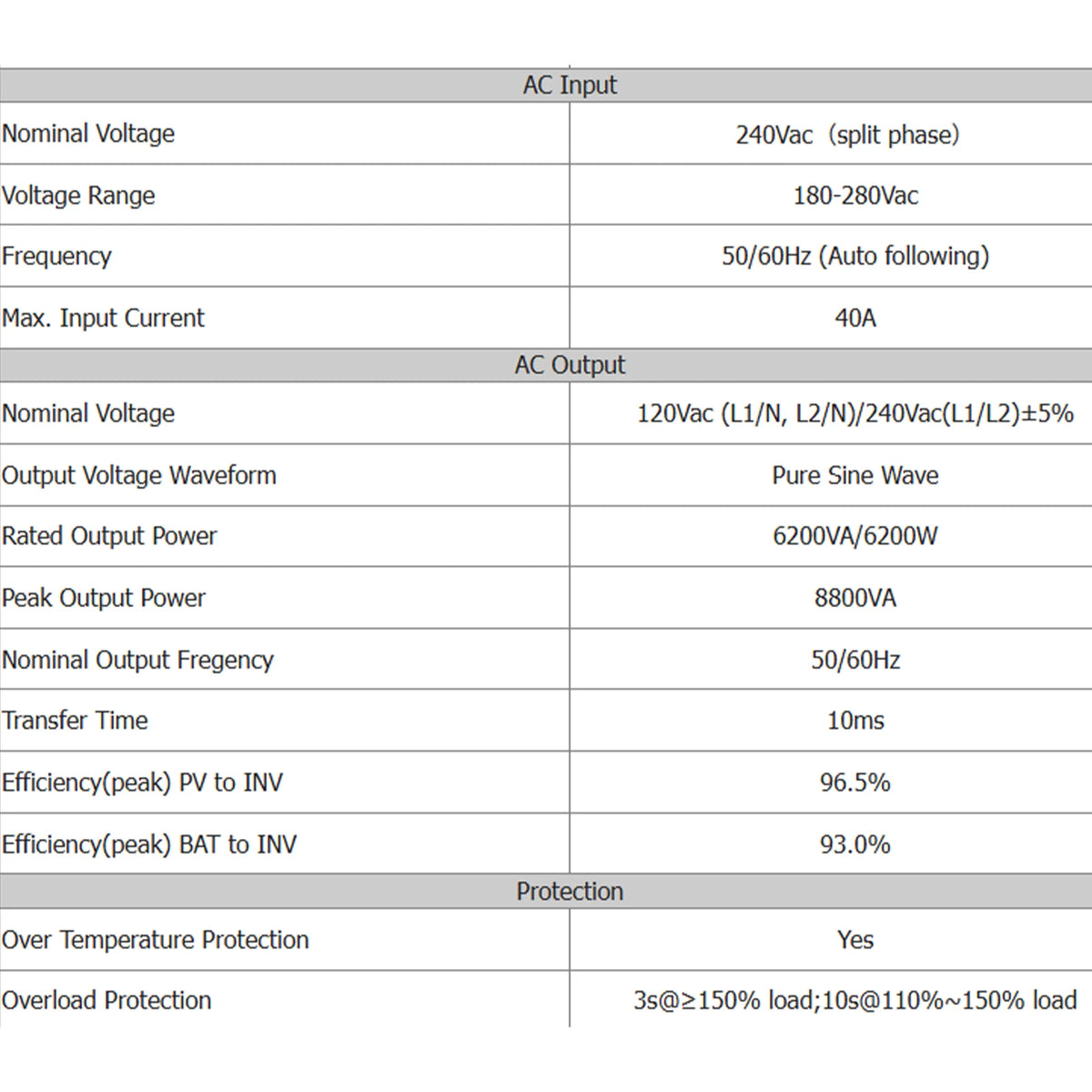

Split-Phase Pure Sine Wave Output with High Load Capacity

Providing a 120V/240V split-phase pure sine wave AC output, this Hybrid Solar Inverter has a rated power of 6200W and a peak power of 8800VA. It perfectly drives various home appliances and power tools, making it suitable for villas, communication base stations, and other locations requiring high-quality power.

Smart Dual Input with Seamless Transfer

Featuring a grid/generator AC input with a UPS-level 10ms transfer time, this Hybrid Solar Inverter rapidly switches between on-grid and off-grid modes in unstable grid areas or emergency situations, ensuring sensitive devices like refrigerators and lighting remain unaffected by power outages.

Intelligent Monitoring & Cloud Management

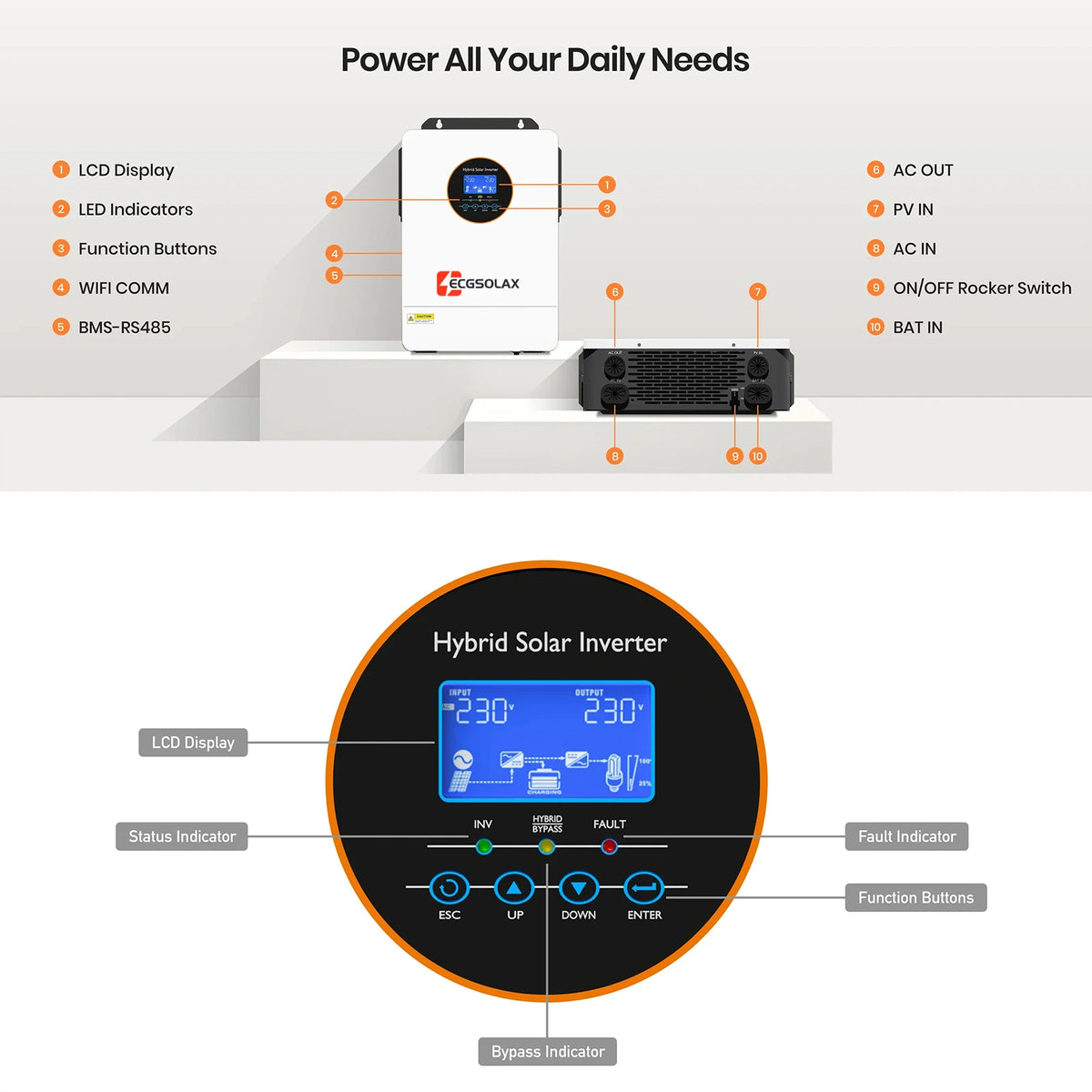

Equipped with an LED+LCD display, it supports RS485 communication with the BMS and optional WiFi/4G modules. Users can monitor the real-time operating status and power generation data of the Hybrid Solar Inverter via a mobile APP, enabling remote management and providing clear energy insights.

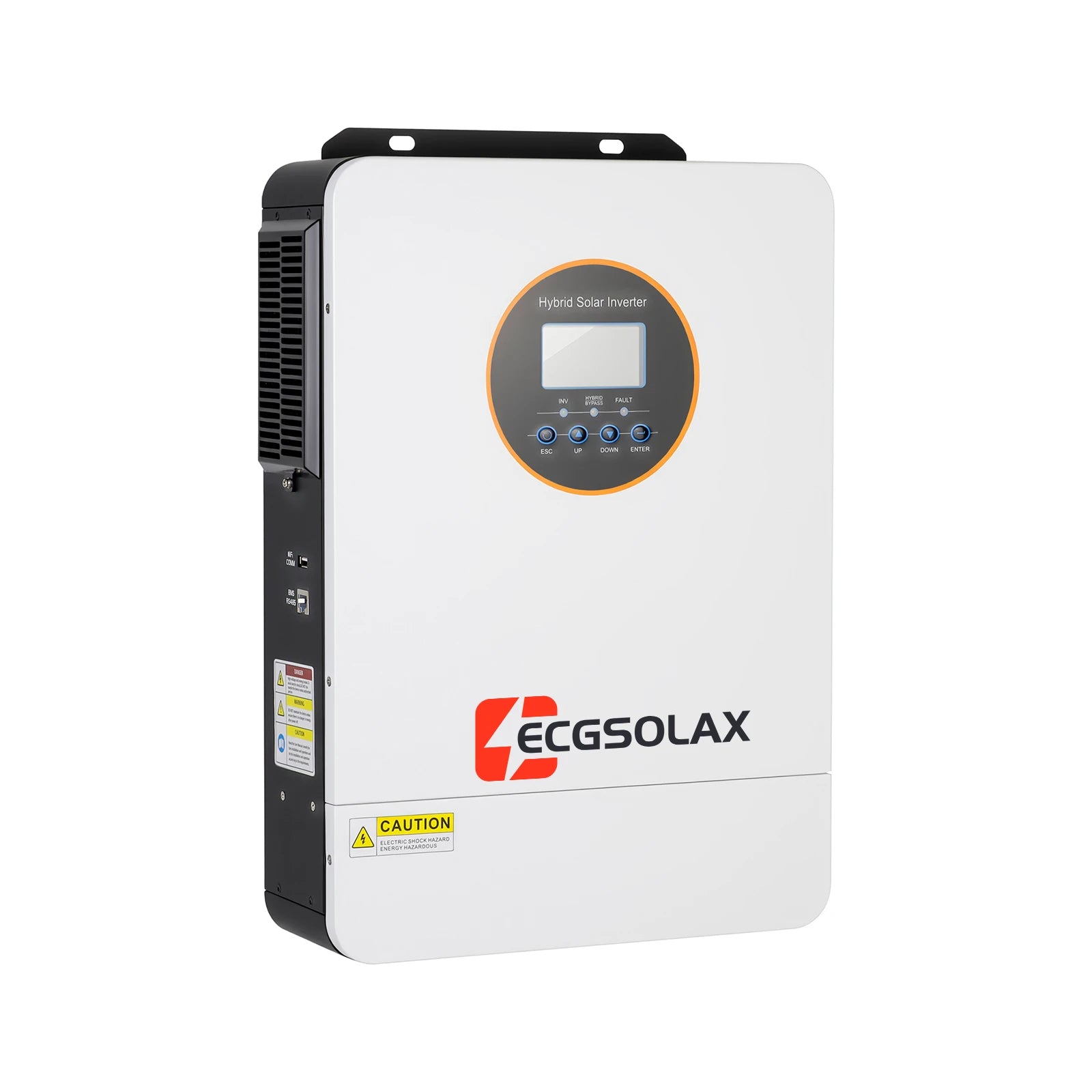

Robust & Durable for Various Environments

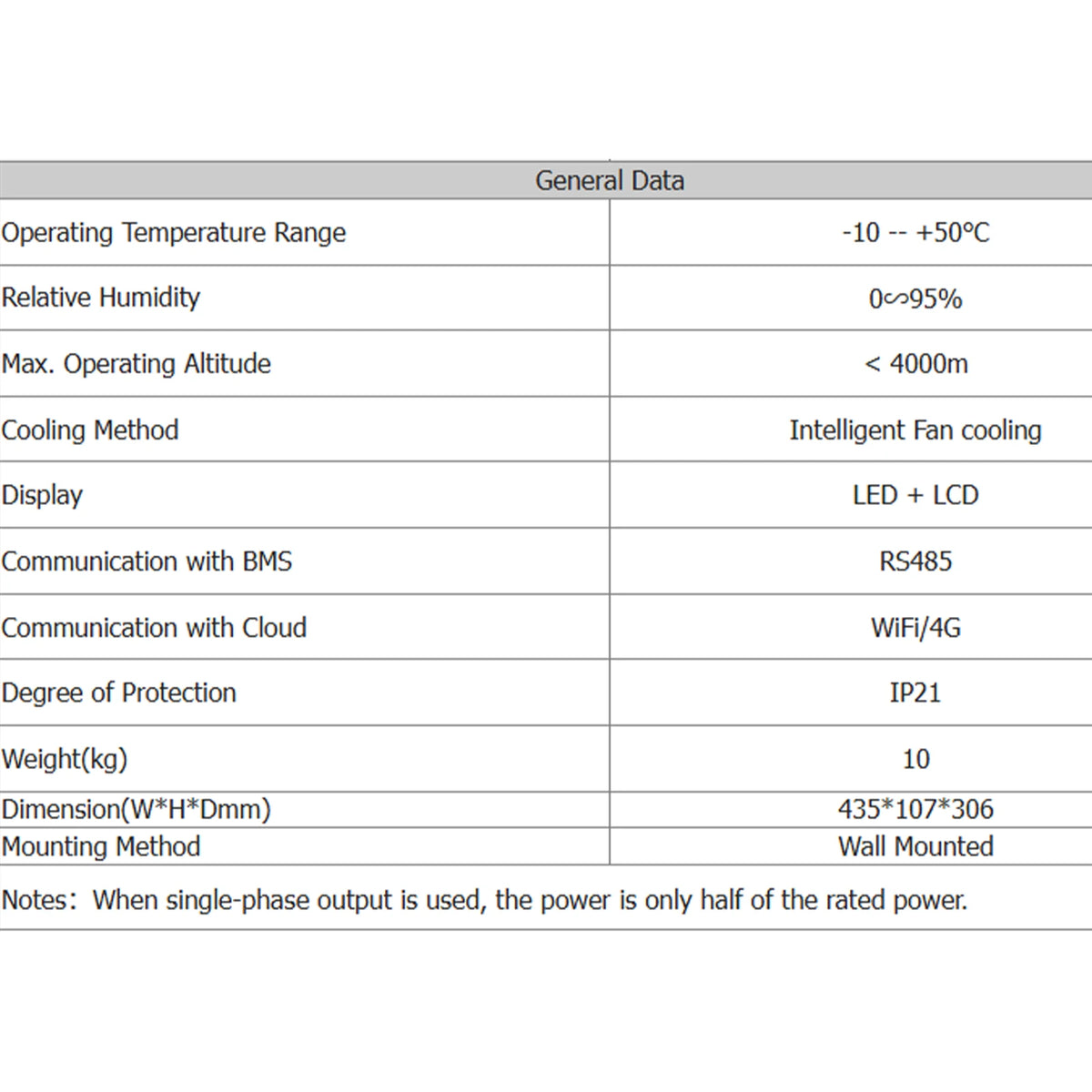

Featuring a wall-mounted design with an IP21 rating, it operates within a wide temperature range of -10~50℃ and at altitudes up to 4000 meters. Compact with excellent heat dissipation, this Hybrid Solar Inverter ensures long-term reliable operation whether installed in a garage, balcony, or outdoor shelter.
