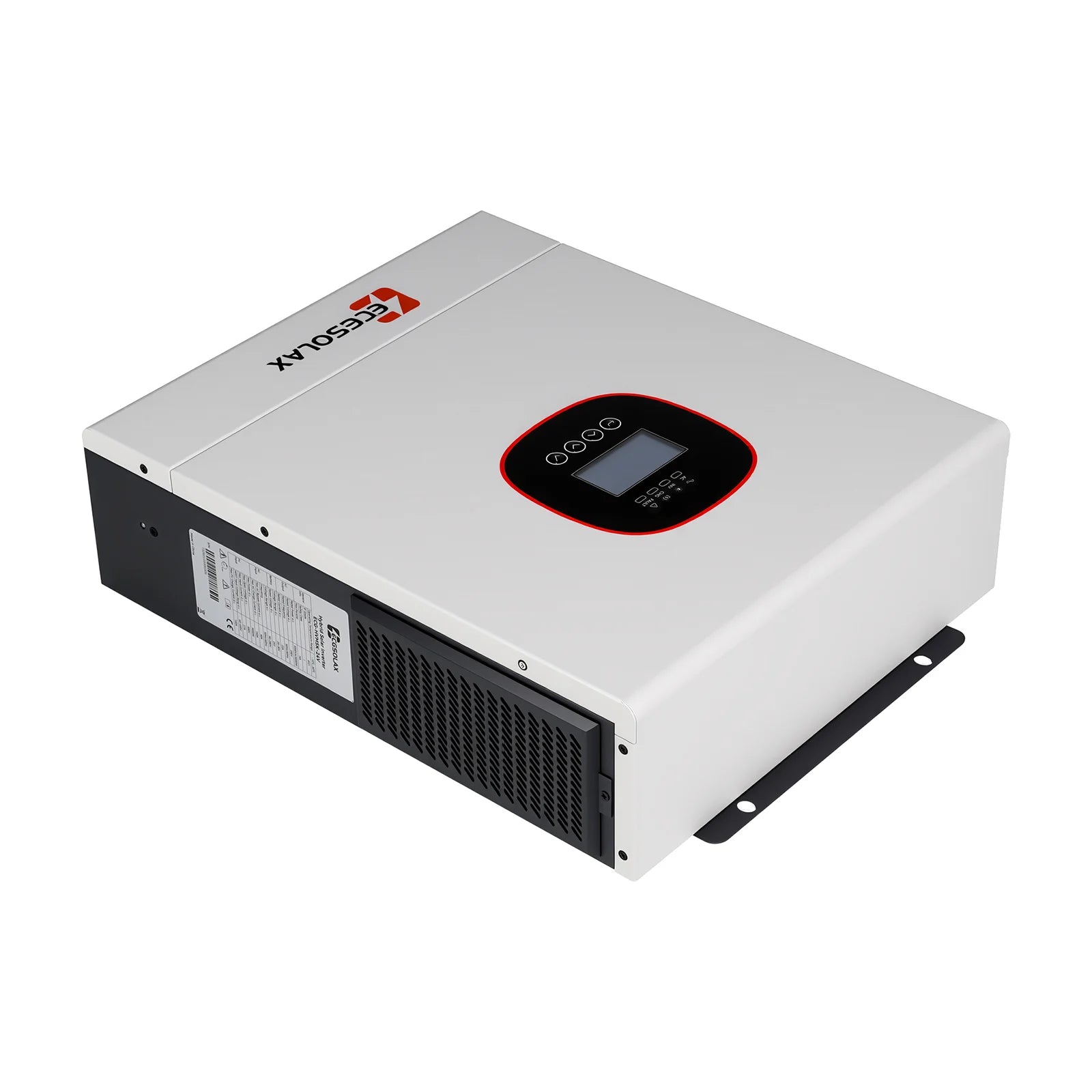

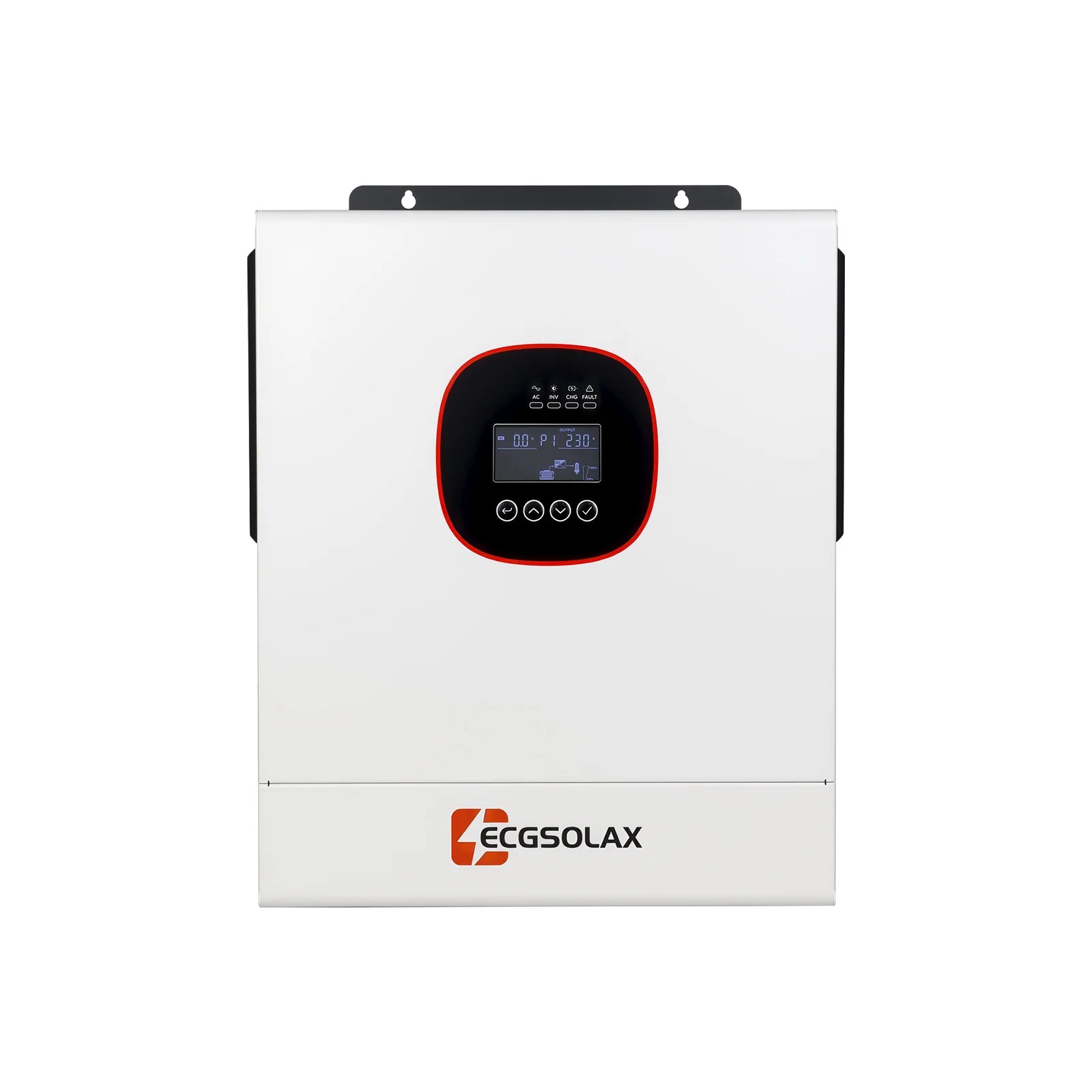

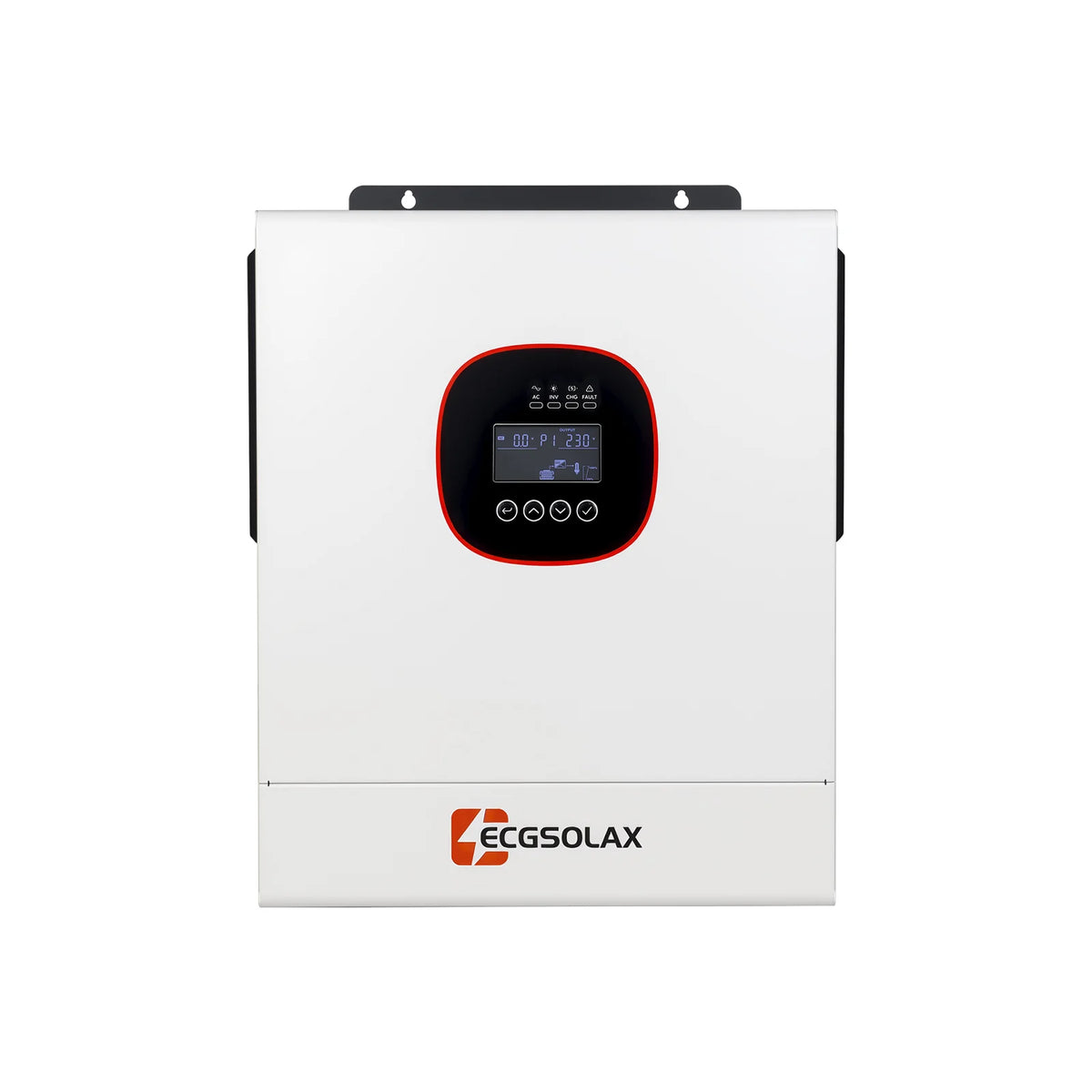

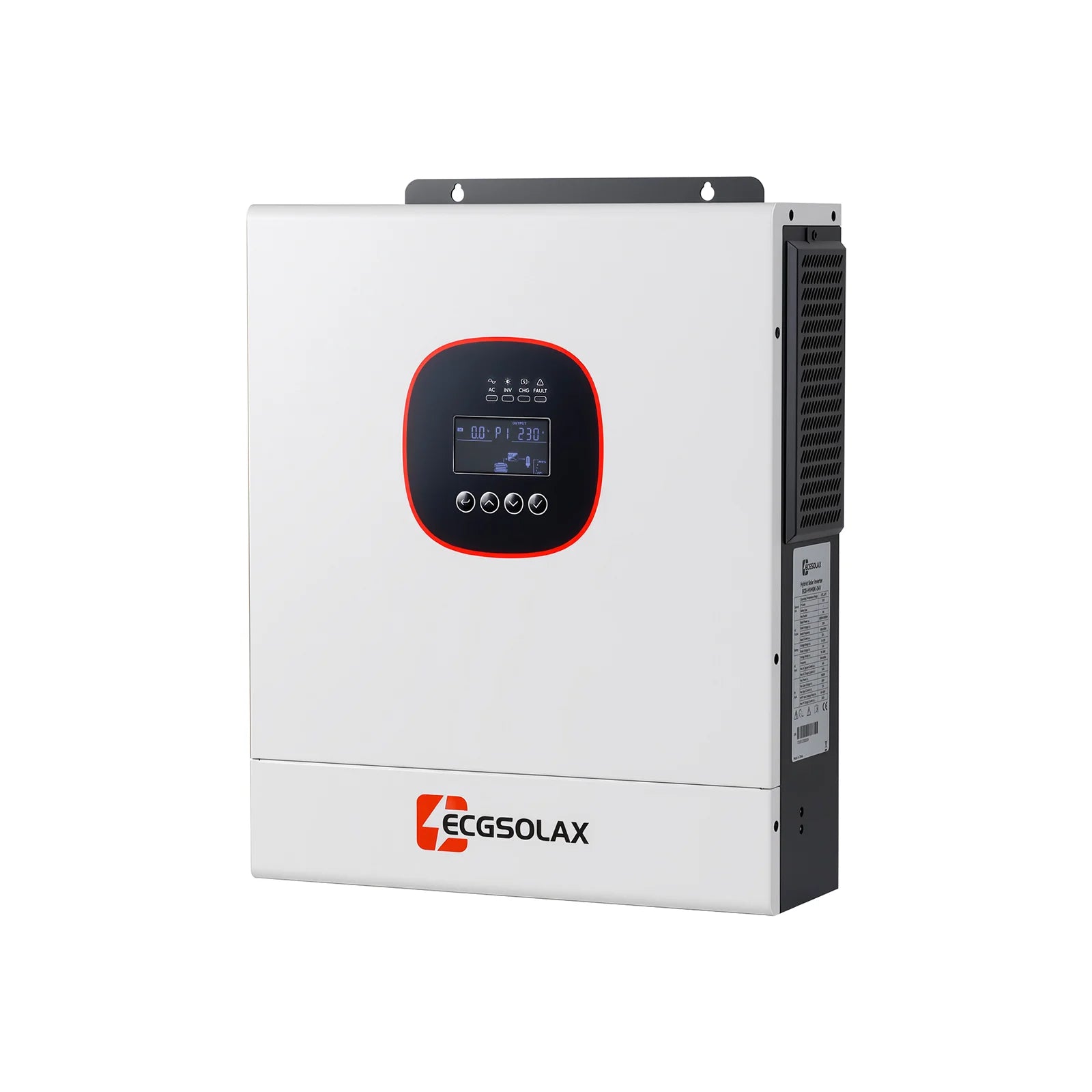

5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System
5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System

5kW 24Vdc 220Vac Solar Inverter Charger with MPPT All-in-One Solar Power System

$334.19
$334.19
$477.42
Sold Out
ECG-HVM5K-24V

✓ 5kW Pure Sine Wave Solar Inverter for stable and reliable power output
✓ Built-in MPPT Solar Charge Controller for higher solar charging efficiency
✓ Compatible with 24V Battery Systems for home solar energy storage
✓ Supports Solar, Battery, and Grid Input for flexible hybrid power use
✓ Advanced Protection & Stable Performance for long-term operation
✓ Ideal for Home Energy Storage and Off-Grid Solar Power Systems

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

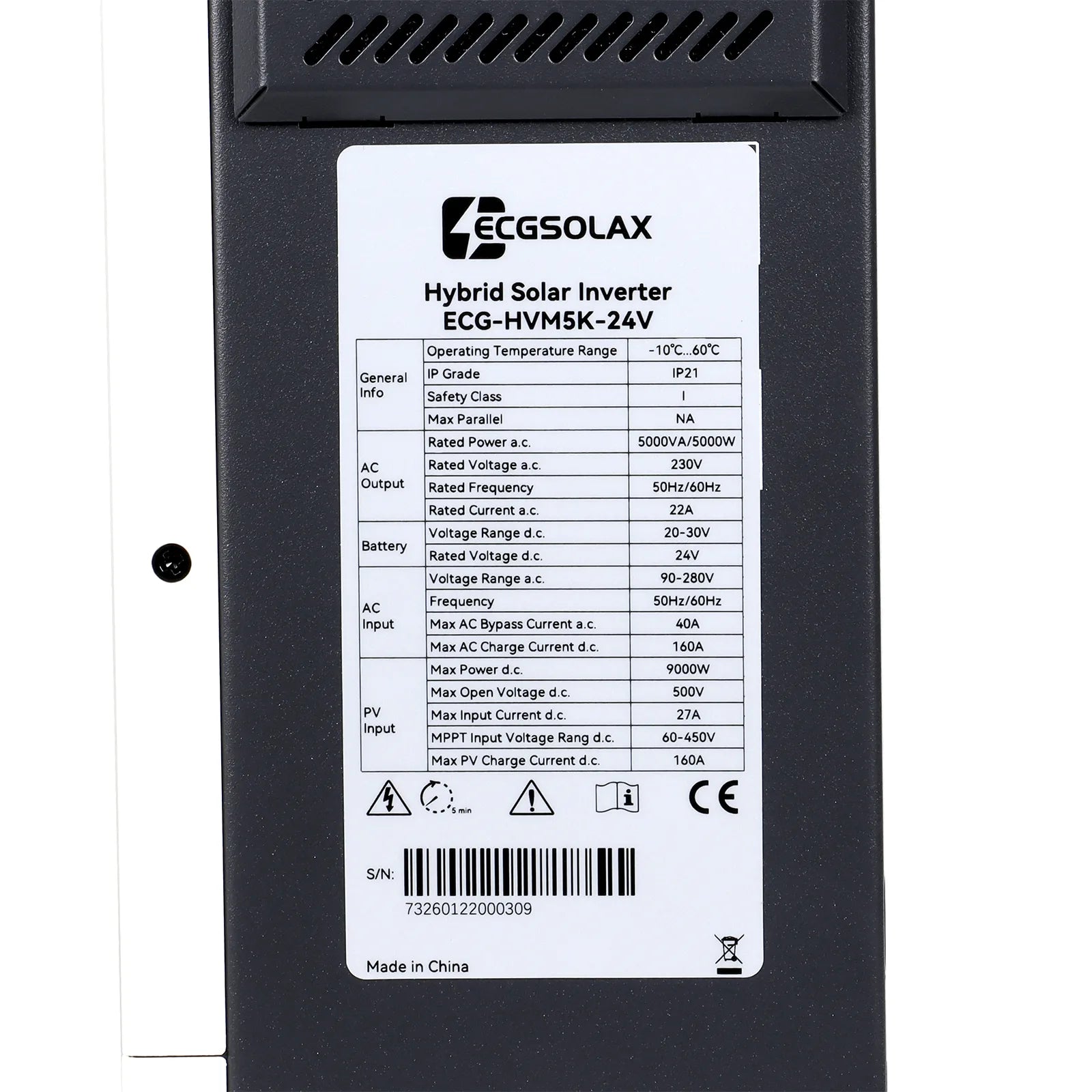

Key Specifications

Rated Input Voltage: 208/220/230/240 VAC
Voltage Range: 90-280V / 170-264V
Frequency: 50/60Hz
Rated Capacity: 5kW
Surge Power: 10kVA
Output Voltage: 208/220/230/240VAC
Waveform: Pure Sine Wave
Max Efficiency: 93.5%
Solar Charger Type: MPPT
Max PV Input Power: 9000W
MPPT Voltage Range: 60-450V
PV Start Voltage: 80V
Max PV Voltage: 500V
Max PV Charge Current: 160A
Battery Voltage: 24V
Battery Type: Lithium / Lead-acid
Monitoring: Built-in WiFi

Flexible Solar Inverter System Configuration

Output Modes
✔ Grid Priority
✔ Solar Priority
✔ Battery Priority
Optimizes power distribution between solar, battery, and grid for different application scenarios.

Charging Modes
✔ PV Only
✔ Grid Priority Charging
✔ PV + Grid Hybrid Charging
Ensures efficient and flexible energy management for both off-grid and hybrid systems.

Supports Battery & Non-Battery Solar Power Systems

✔ Non-Battery Mode
The solar inverter converts solar energy into AC power for home appliances or grid supply.
No battery required — lower cost and easier solar installation.

✔ Battery Mode
Store excess solar power in batteries during the day and use it at night or during outages.
Provides reliable home energy storage and backup power.

Built-in WiFi Smart Monitoring

Remote Solar Inverter Monitoring via Mobile App
✔ Real-Time Energy Monitoring
✔ Smart Solar Power Management
✔ Remote System Control Anywhere

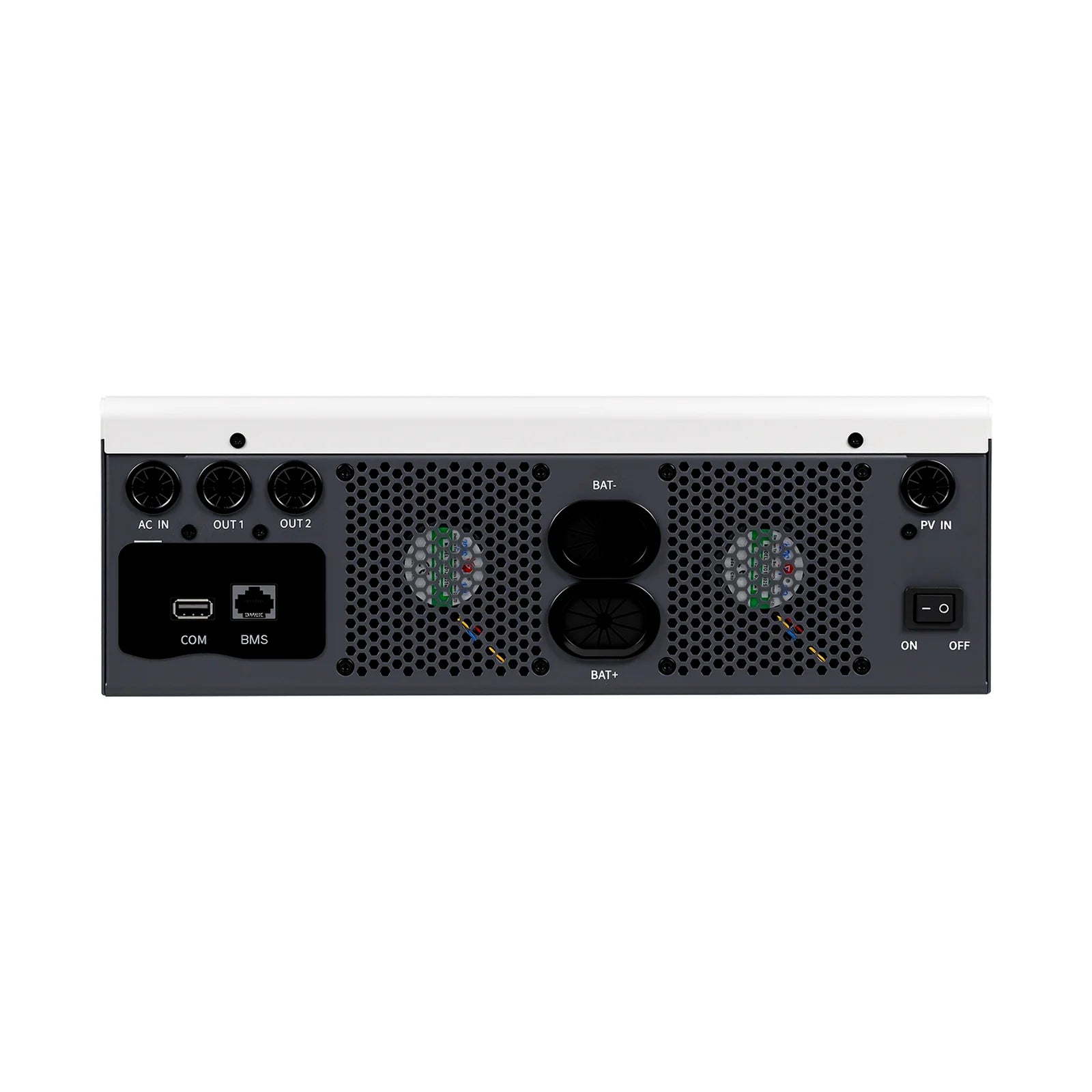

BMS communication

Three-step BMS communication setup for solar inverter and lithium battery systems. Connect the inverter and battery using a Cat5e communication cable, set the battery DIP switch, and configure the BMS protocol on the inverter display for stable battery communication and energy management.

Comprehensive Protection & Efficient Cooling

Reliable Solar Inverter Protection System

Intelligent Cooling Fans
Dual smart cooling fans with separated airflow zones provide efficient heat dissipation.
Prevents overheating and ensures stable, high-efficiency solar inverter performance.

Advanced Dustproof Design
Multi-layer dustproof protection blocks dust and debris from entering the system.
Improves inverter reliability, durability, and long service life, even in harsh environments.
