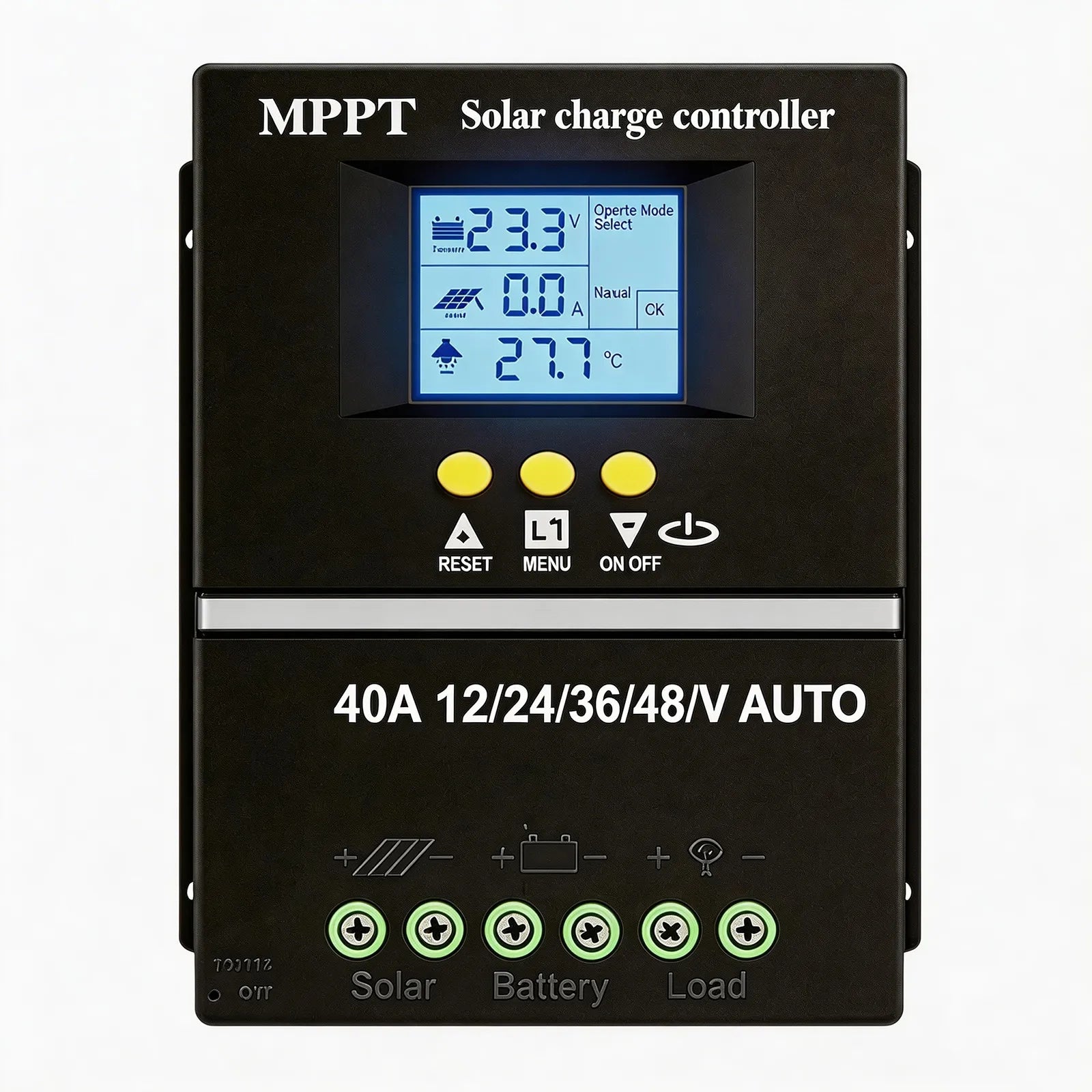

40A 12V24V36V48V AUTO MPPT Solar Charge Controller
40A 12V/24V/36V/48V AUTO MPPT Solar Charge Controller
40A 12V/24V/36V/48V AUTO MPPT Solar Charge Controller
40A 12V/24V/36V/48V AUTO MPPT Solar Charge Controller

40A 12V/24V/36V/48V AUTO MPPT Solar Charge Controller

$35.44
$35.44
$50.63
Sold Out
Shipping calculated at checkout.
ECG-SY4840A

• High-Performance 40A Charging: Delivers a stable 40A rated current, optimized for high-efficiency charging in off-grid solar systems.
• 4-Level Auto Voltage Detection: Intelligent MPPT Solar Controller that automatically recognizes 12V, 24V, 36V, and 48V battery configurations.
• 7 Smart Work Modes: Includes specialized Light Control, Timing, and Manual modes for versatile DC load management.
• Advanced Safety Circuitry: Features built-in protection against over-voltage, high temperatures (75°C), and 150% over-current faults.

Secure online shopping
Visa Mastercard PayPal Maestro JCB Diners Club Discover American Express

40A MPPT Solar Charge Controller - 12V/24V/36V/48V Auto Voltage Identification for Off-Grid Systems

40A Reliable Current: Robust 40A charging/discharging capacity, specifically designed for high-performance off-grid power management.
Universal Auto Recognition: Intelligently identifies 12V/24V/36V/48V systems, providing a versatile solution for various solar arrays.
7 Specialized Operation Modes: Includes Light Control, Timing, and Manual modes to suit different application scenarios like street lights or home backup.
Industrial Safety Protection: Built-in safeguards against over-voltage, low-voltage, and over-current (110%-150% protection) to ensure battery longevity.

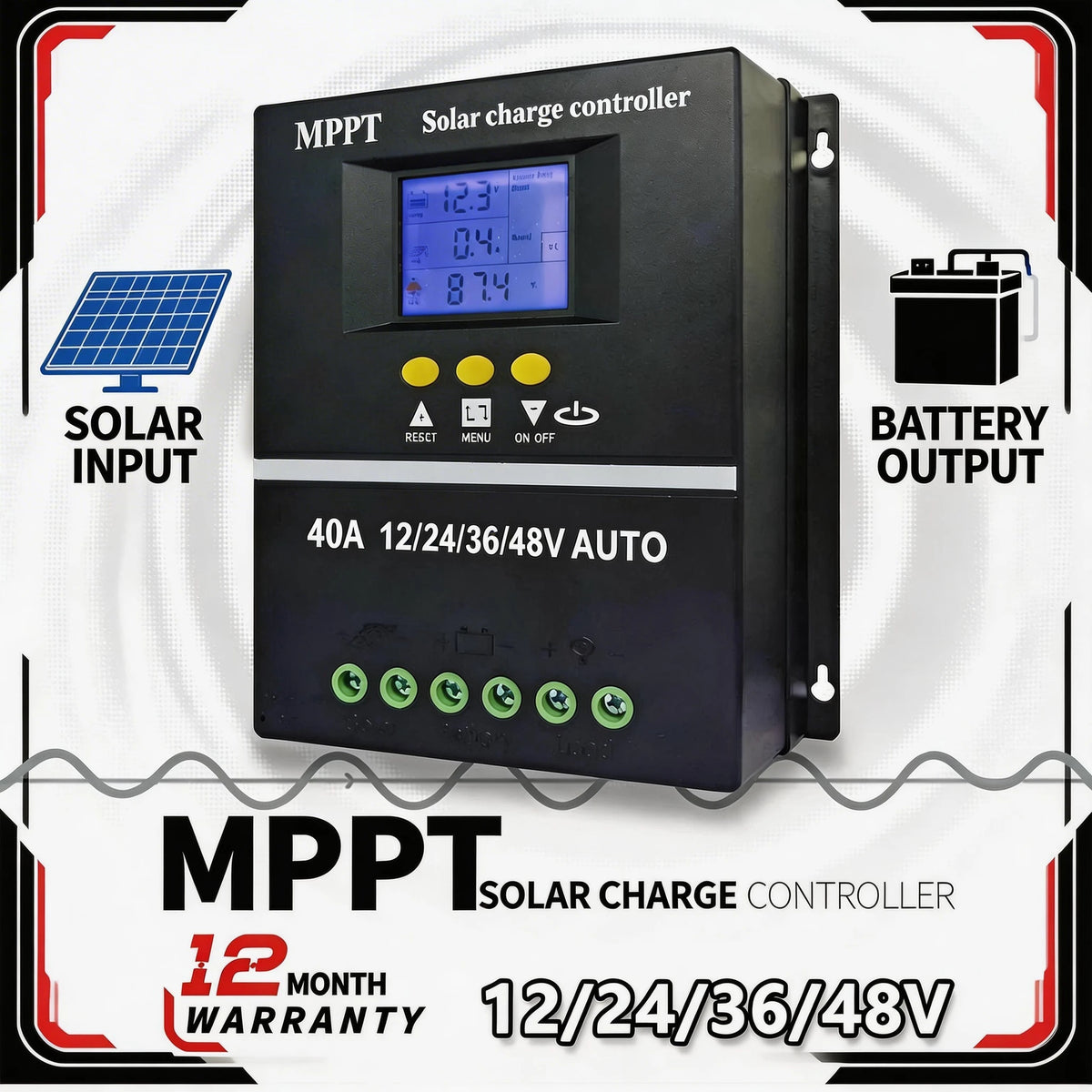

40A MPPT Solar Controller

Professional 40A MPPT Solar Controller - Heavy-Duty 48V/36V/24V/12V Battery Management System

• Precision Voltage Protection: Automatically guards your system with 42V-64V range protection for 48V batteries and 10.5V-16V for 12V setups.
• Intelligent Load Control: Features a 10-minute delayed start/stop for Light Control Mode to prevent false triggers during dawn or dusk.
• Optimized Battery Health: Includes specific charging cut-offs (e.g., 59.2V for 48V systems) to prevent hazardous overcharging and extend battery life.

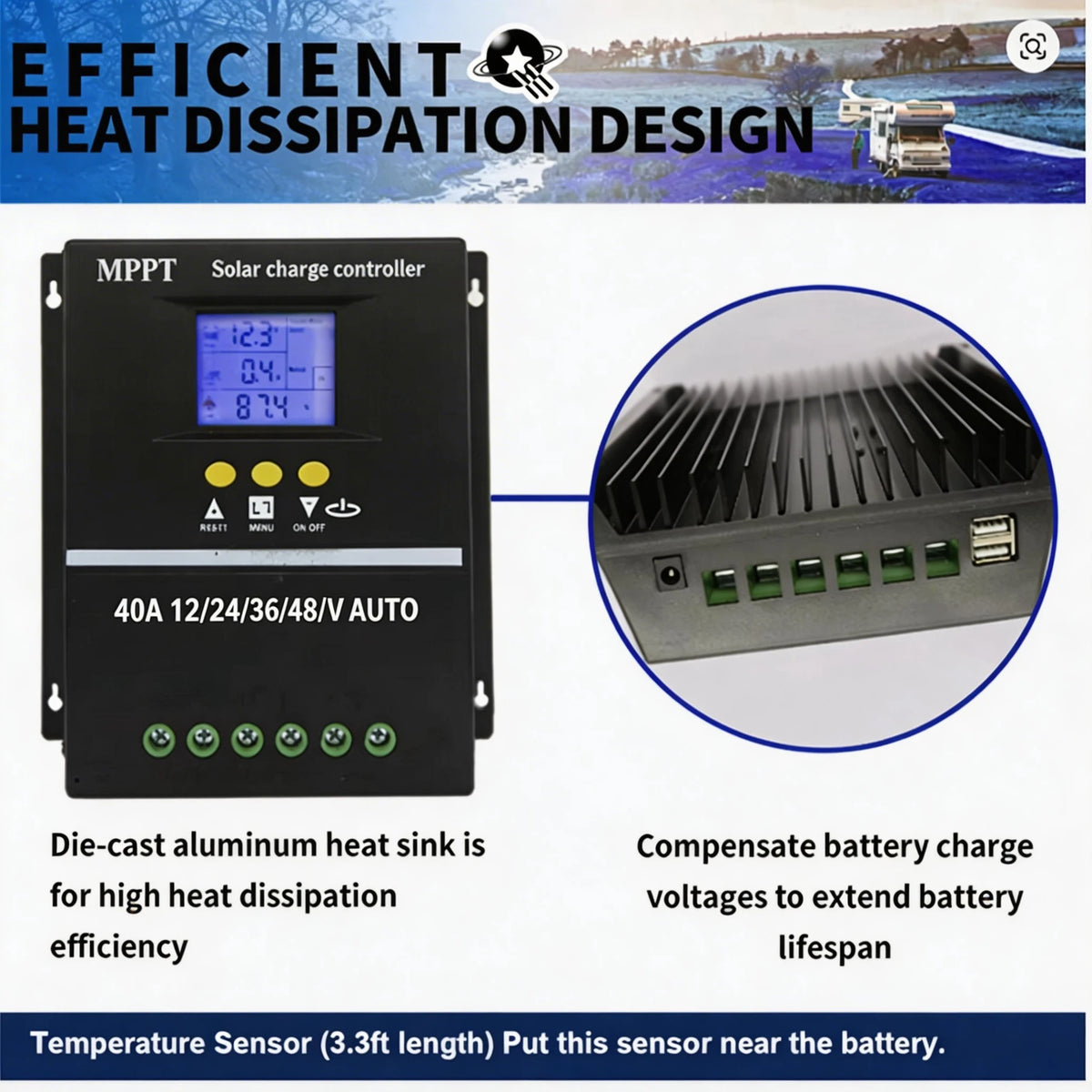

• Real-Time Thermal Monitoring: High-precision internal sensors display controller temperature with an automatic 75°C fault protection trigger.
• Customized Discharge Scheduling: Built-in Timing Control Mode allows users to set specific 24-hour start/stop schedules for connected DC loads.

Intelligent Low-Voltage Recovery Logic

Designed to safeguard battery health, this MPPT Solar Controller automatically cuts discharge at 42.0V (for 48V systems) and features a 5-second manual override to resume power if urgent output is required.

Dual-Delay Light Sensing Technology

To prevent false triggers from temporary light sources, the MPPT Solar Controller implements a smart 10-minute delay for both starting and stopping the load in Light Control Mode.

Dynamic Battery Capacity Tracking

The advanced LCD interface provides a real-time percentage display of battery capacity and a dynamic 4-bar charging icon, allowing you to monitor the energy storage status of your MPPT Solar Controller at a glance.

Precision Safety Cut-off Parameters

The system ensures high-voltage safety by stopping discharge immediately if the battery exceeds 64.0V (48V system) or 16.0V (12V system), automatically resuming only when the voltage returns to a stable range.
