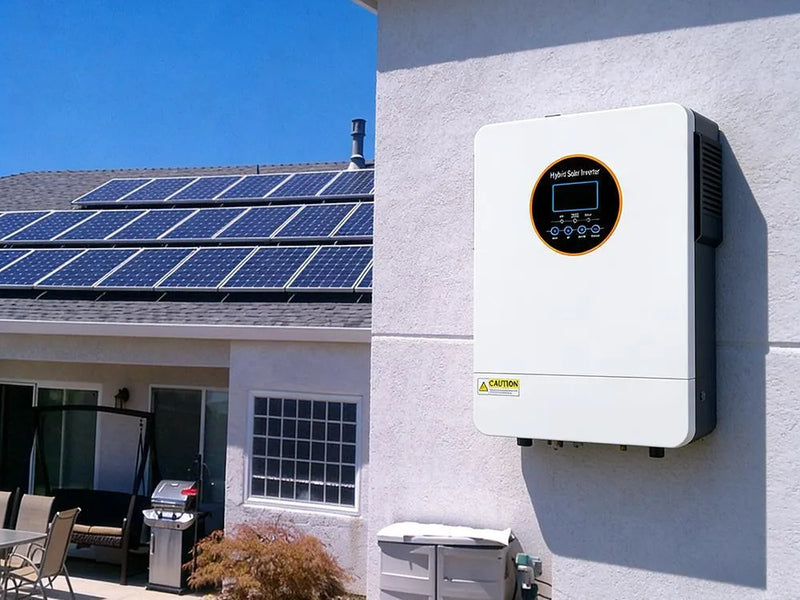

DIY Guide: Building Your Own Off-Grid Solar System

Are you a DIY enthusiast eager to embrace renewable energy and reduce your reliance on the grid? Building your own off-grid solar system is a rewarding project that offers energy independence, cost savings, and a positive impact on the environment. In this guide, we'll take you through the essential steps to create your personalized solar setup.

Key Components of an Off-Grid Solar System

These key components work together to harness, store, and distribute solar energy efficiently, ensuring a reliable off-grid power supply for your home or property.

1. Solar Components Overview

Before you start building, it helps to understand the key players in your off-grid solar system:

• Solar Panels: These are the heart of your system. Installed on your roof or a ground mount, they capture sunlight and convert it into usable electricity (DC power).
• Charge Controller: Think of this as the brain of your battery system. It sits between the solar panels and the battery bank, regulating the voltage and current to prevent overcharging and protect your batteries.
• Battery Bank: This is your energy storage. It stores the excess electricity generated during the day so you have power at night or on cloudy days.
• Power Inverter: Most household appliances run on AC power, but your batteries store DC power. The inverter's job is to convert the DC power from your battery bank into standard AC power, allowing you to run lights, electronics, and appliances.
• Wiring and Connectors: These are the essential links that tie everything together. Using the correct gauge of wire and quality connectors ensures your system is safe, efficient, and reliable.

2. Calculating Your Energy Needs

Assess your electricity usage to determine the size of the system you need. Calculate your daily energy consumption in kilowatt-hours (kWh) to guide your component selection.

Solar Panel Placement

For maximum efficiency, place solar panels where they receive the most sunlight. Consider orientation and tilt angles for optimal exposure. Calculate the number of panels needed based on your energy requirements.

Use this solar panel calculator formula to determine how many panels you need:

Example:
5 kWh/day ÷ 5 peak sun hours = 1 kW (1,000W) needed
1,000W ÷ 400W per panel = 2.5 → 3 panels (round up)

💡 Add 20% buffer for system losses (inverter efficiency, wiring, cloudy days).

Soalr Charge Controller Selection

A proper charge controller is essential for regulating energy flow and protecting your battery bank in a off-grid solar system.

MPPT Solar Charge Controller:

• Best suited for larger solar systems with high energy demand.
• Maximizes energy efficiency by adjusting the charging process to extract the most power from your solar panels.
• Ideal for areas with variable sunlight or larger solar arrays, as it optimizes the voltage difference between panels and batteries to ensure faster and more efficient charging.

PWM Controller:

• A cost-effective solution for smaller systems or those with lower power requirements.
• Regulates the charging by maintaining a consistent voltage, which is sufficient for smaller setups.
• While less efficient than MPPT, it still prevents battery overcharging and extends battery life by providing reliable control of the charging process.

Battery Bank Sizing

Choose the right battery type (e.g., lead-acid or lithium-ion) based on your budget and needs. Lead-acid is more affordable but has a shorter lifespan, while lithium-ion is more efficient and lasts longer.

Selecting a Power Inverter

Choose an inverter that can handle your system's power needs. It converts DC power from the batteries into AC power for your appliances.

Size: Select an inverter with enough capacity to handle your maximum load, usually 20-30% higher than your total wattage.

Type:

• Pure sine wave inverters provide cleaner power for sensitive electronics.
• Modified sine wave inverters are cheaper but less efficient for some appliances.
• Ensure the inverter's voltage matches your battery bank (e.g., 12V, 24V, or 48V).

Step-by-Step Solar Off-Grid System Installation

Follow these steps carefully to ensure a safe and efficient solar off-grid system setup.

1. Solar Panel Installation

Mount the solar panels securely with the correct orientation and tilt for maximum exposure. Connect the panels in series or parallel depending on voltage requirements. Ensure proper wiring, using correct insulation and secure connections to prevent electrical issues.

2. Connecting the Charge Controller

Connect the solar panel leads (positive/negative) to the charge controller’s input. Then, connect the battery leads to the output terminals. Make sure the wiring is correct, and use the right wire size for the current.

3. Setting Up the Battery Bank

Install the batteries in a safe location and connect them according to the desired configuration (series/parallel). Use fuses for safety, and double-check the polarity of connections. Ensure battery terminals are secure and properly tightened.

4. Installing the Power Inverter

Connect the inverter to the battery bank, matching the correct polarity (positive to positive, negative to negative). Use appropriate wiring and ensure all connections are tight. Add fuses or breakers for overload protection, and test the system for functionality.

Testing and Maintenance

Ensure your system continues to perform efficiently by conducting regular tests and following maintenance guidelines.

1. System Testing

Run a complete solar system test to ensure everything is working. Troubleshoot common issues like faulty connections or incorrect wiring for optimal performance.

2. Maintenance Tips

Check for loose connections and corrosion regularly. Clean solar panels for maximum efficiency and follow battery care tips to extend lifespan.

Conclusion

Congratulations! You've successfully built your own off-grid solar system. Embrace the satisfaction of harnessing clean, renewable energy. Share your experiences with the community, and don't hesitate to seek support if needed. By taking this step towards energy independence, you're not only saving on costs but also contributing to a more sustainable future.

Remember to follow local regulations and safety guidelines throughout your project. Happy solar building!
