Anbieter : ECGSOLAX

Sku : MC4X6-B-20M

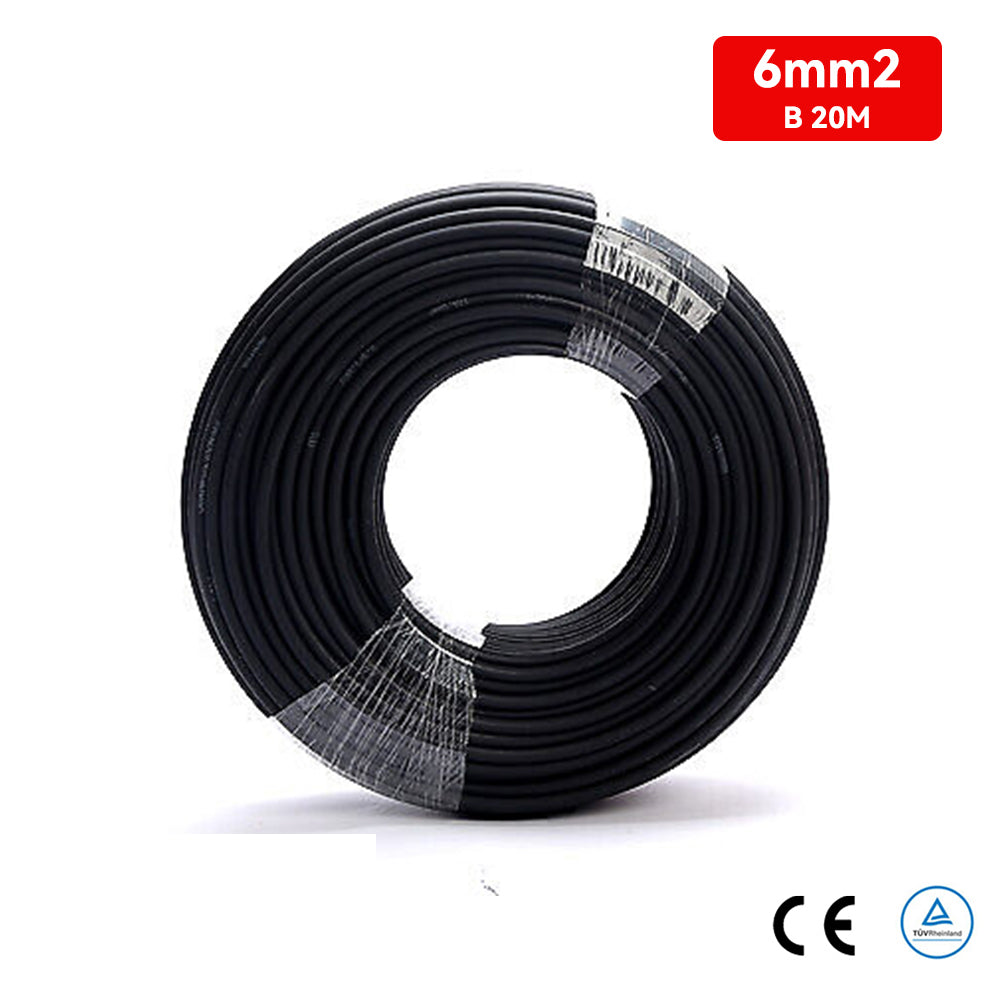

20M 6mm2 Solar Panel Wire MC4 Cable 10AWG TUV Proved - Black

No review yet. Write Review
Normaler Preis
$56.00 USD
Normaler Preis
$75.00 USD
Verkaufspreis
$56.00 USD
Shipping calculated at checkout.

Description

These cables provide the means to interconnect between photovoltaic (PV) panels and from panels to the “inverter”. They operate at dc voltages and provide long life in exposed conditions.

Specification

 Materials
Conductor Tinned copper wire
Insulation XLPO
Jacket XLPE
Mechanical
Wire size range 6.0 mm2 10 AWG
Rated temperature -40~ 90
Rated Rating AC:0.6-1.0KV DC:1.8kv (TÜV CABLE)
AC: 0.6KV(UL CABLE)
Weathering Resistance
Sun Resistant
Standard
TÜV: 2PfG 1169 08.2007
UL: 4703
Color
Black
Conductor Construction(n/mm) TXR84/0.30
Conductor Stranded OD.(mm) 3.42
Insulation Min.Wall Thickness (mm) 0.8
Sheath Min.Wall Thickness (mm) 0.80
Cable OD.(mm) 7.20
Conductor MaxResistance AT20°C(?/km) 3.30
Current Araaing Capacity AT60°C(A) 70
