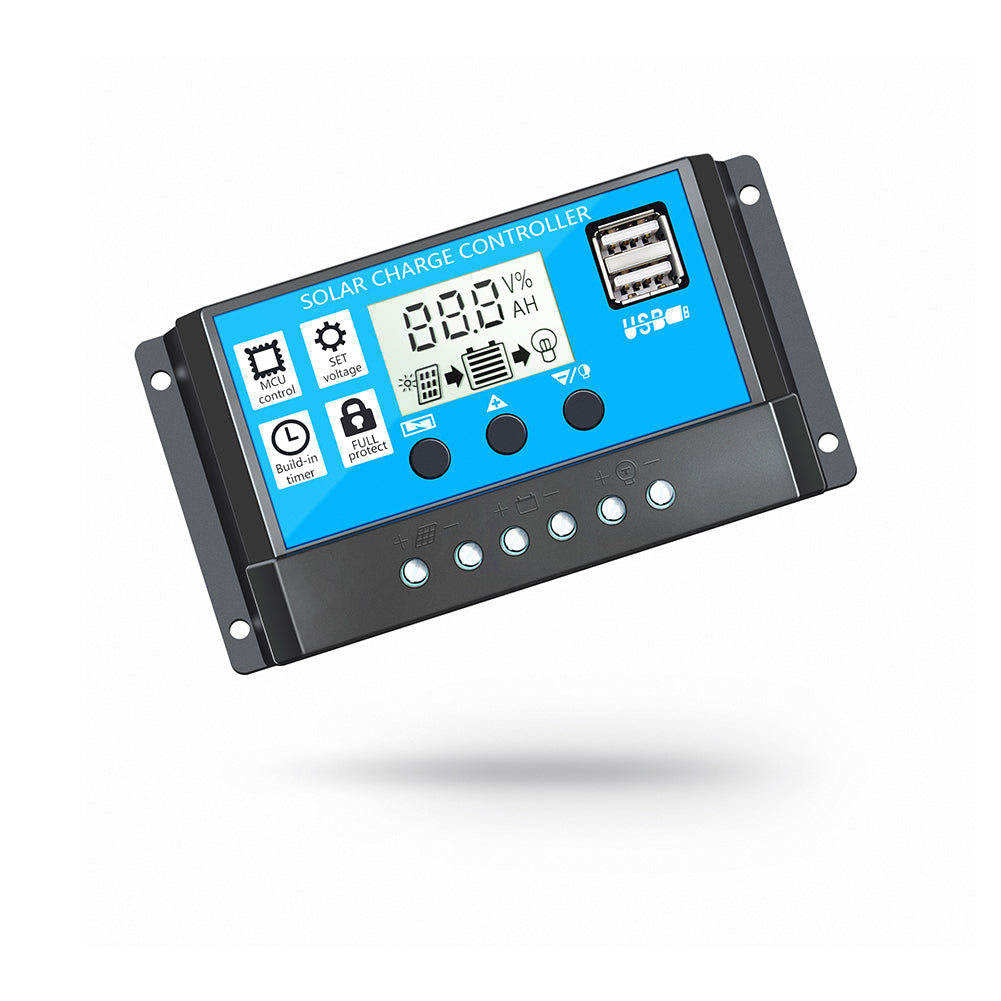

This controller is an intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements. This is NEW Solar Controller ,It can fully meet your home Photovoltaic system(including home lighting system)requirements.It can automatically recognize 12V and 24V Lead acid, Gel battery.
Battery Voltage: 12V 24V Auto
Charging Current: 40A
Discharging Current: 10A
Max Solar Input: 50V(for 24V battery) 25V(for 12V battery)
Equalization: 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)
Float Charge: 13.7V(defaul,adjustable)
Discharge Stop: 10.7V(defaul,adjustable)
Discharge Reconnect: 12.6V(defaul,adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V(Light lights delay)
Voltage of Close Light: Solar Panel 8V(Light off delay)

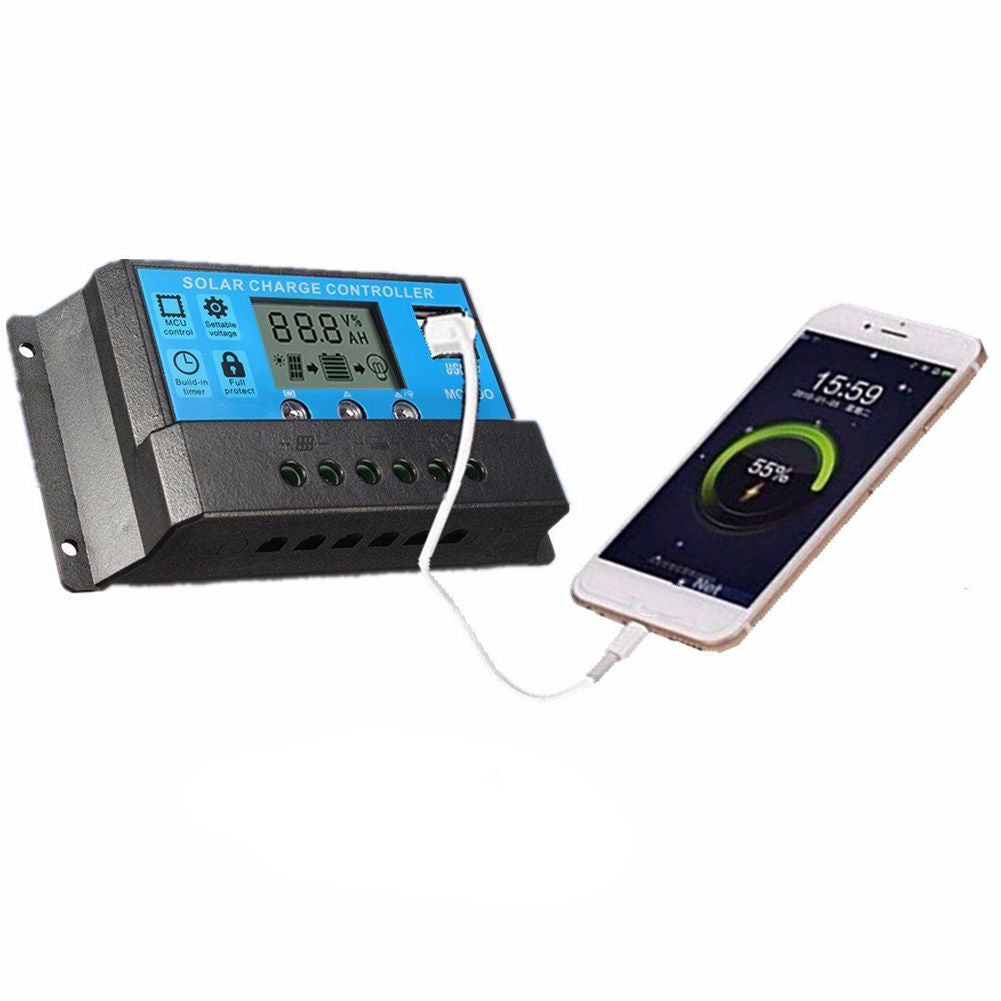

USB Output: 5V/3A
Operating Temperature: -35°C~+60°C
Please let us know if you have any questions about this product.
