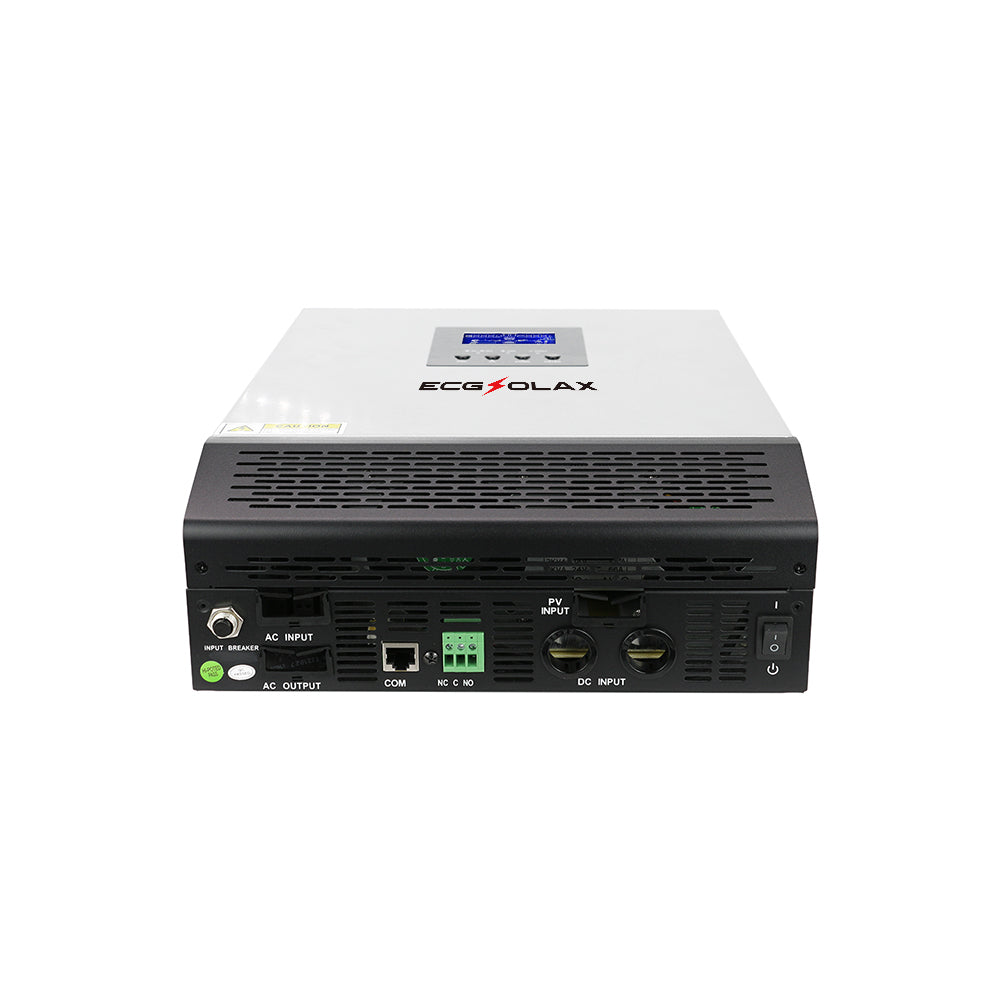

3000VA / 2400W DC 24V AC 110V All-in-One PWM Solar Inverter Charger
- Normaler Preis
- $299.00 USD
- Normaler Preis
-
$369.00 USD - Verkaufspreis
- $299.00 USD
- Grundpreis
- pro
Verfügbarkeit für Abholungen konnte nicht geladen werden
ECGSOLAX 3000VA 2400W Solar Hybrid Inverter 24V 110V Built-in PWM 50A Solar Charge Controller PV Max 80VDC Pure Sine Wave Invert
Introduction:
This is a multi-function inverter/chargei; combining functions of inverter solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
It is Pure Sine Wave Hybrid Solar Inverter Built-in PWM Solar Charge Controller For Home Use.
Features:
* Pure sine wave inverter
* Built-in PWM solar charge controller
* Configurable input voltage range for home applicances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar charger priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering
* Overload/over temperature/ short circuit protection
* Smart charging system optimizes battery performance
* Cold start function
Package Including：
* 1PC Solar Inverter Charger
* 1PC User Manual (English)
Specification:
| MODEL | MIN-3K-U |
| Rated Power | 3000VA/2400W |
| INPUT | |
| Voltage | 120VAC |
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
| Frequency Range | 50 Hz/60 Hz(Auto detection） |
| OUTPUT | |
| AC Voltage Regulation(Batt. Mode) | 120VAC± 5% |
| Surge power | 6000VA |
| Efficiency(Peak) | 95% |
| Transfer Time | 1gms for personal computers) 20ms(for home appliances) |
| Wave form | pure Sine wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 31VDC |
| Maximum charge current | 30A |
| SOLAR CHARGER | |
| Maximum Charging Current | 50A |
| Charge Mode | PWM |
| Maximum PV Array Open Circuit Voltage | 80VDC |
| Standby Power Consumption | 2W |
| Maximum PV Array Power | 1200W |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 100x272x355 |
| Net weight(KGS) | 7KG |
